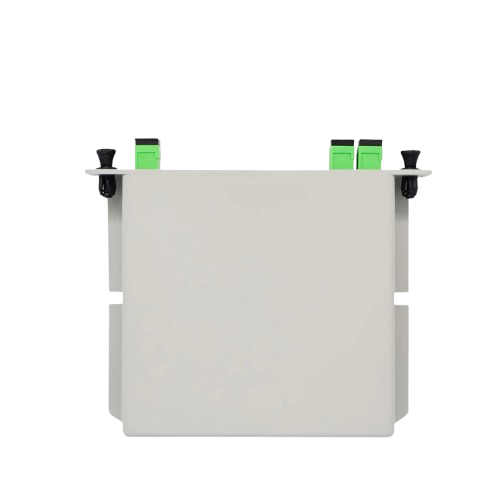

Cassette Splitter Fiber Optic SC/APC Without Pigtail – 2, 4, 8, 16 Ports
The Cassette Type SC/APC Fiber Optic Splitter without pigtail is a high-performance, passive optical component designed for seamless signal distribution in FTTH, PON, CATV, and other fiber optic network infrastructures. Available in 2, 4, 8, and 16 port configurations, this splitter offers precision signal splitting using advanced PLC (Planar Lightwave Circuit) technology, while eliminating pre-attached pigtails for greater flexibility in customized installations.
SC/APC Interface for Low-Loss, High-Reliability Connections
Each port on this splitter is equipped with an SC/APC (Angled Physical Contact) connector, known for its excellent return loss and minimal back reflection. The green SC/APC connectors provide secure and stable connections, making them ideal for high-speed and high-bandwidth network applications such as Gigabit-capable Passive Optical Networks (GPON), IPTV, or high-definition video transmission. The angle-polished endface significantly reduces signal reflection, enhancing overall transmission performance.
No Pigtails – Splice-Free or Patch-Ready Installation
Unlike traditional splitter designs that include pigtails for splicing, this model features direct SC/APC ports without pigtails. This allows for immediate patch-cord connection, enabling quicker deployment in environments where modular patching is preferred over fusion splicing. It’s an ideal solution for data centers, telecom closets, and outdoor cabinets where efficient space utilization and reconfigurability are essential.
Cassette Module Design for Organized Integration
The splitter is housed in a compact, cassette-style enclosure that fits seamlessly into standard 19” rack-mount, wall-mount, or distribution enclosures. The rugged casing protects internal components from environmental exposure and mechanical stress while ensuring quick, organized installation. The modular cassette layout supports tidy cable routing and simplifies network maintenance, especially in high-density configurations.
Available Port Configurations
This splitter is available in:
- 1×2 – Perfect for basic signal tapping or branch networks.
- 1×4 – Suitable for small building networks or limited-access FTTH distributions.
- 1×8 – Ideal for medium-sized PON networks or local service areas.
- 1×16 – Designed for larger scale distribution in access networks or MDU installations.
Applications:
- FTTH/FTTx deployments
- GPON/EPON optical access networks
- CATV signal distribution
- Data center fiber management
- Central office and MDU wiring
Benefits:
- No pigtails for flexible, patch-ready setup
- Clean SC/APC connections minimize reflection
- Plug-and-play cassette format saves time and space
- Available in multiple port sizes for scalable installations
The Cassette Type SC/APC Splitter without pigtail is the ideal solution for network providers and system integrators seeking high-performance signal distribution with flexible installation and minimal footprint. It combines reliability, simplicity, and scalability in one cost-effective package.
PLC Cassette Type SC/APC Splitter Without Pigtail – 2, 4, 8 & 16 Ports
| Parameter | Specification |
|---|
| Product Name | PLC Cassette Type SC/APC Fiber Optic Splitter (Without Pigtail) |
| Available Configurations | 1×2, 1×4, 1×8, 1×16 |
| Splitter Technology | PLC (Planar Lightwave Circuit) |
| Connector Type | SC/APC (Angled Physical Contact, Green Housing) |
| Pigtail | None (Direct connector interface) |
| Fiber Type | Singlemode, G.657.A1 or G.652.D |
| Wavelength Range | 1260 – 1650 nm |
| Operating Band | Full spectrum for GPON/EPON |
| Insertion Loss (Typical) | 1×2: ≤ 3.8 dB
1×4: ≤ 7.2 dB
1×8: ≤ 10.5 dB
1×16: ≤ 13.8 dB |
| Return Loss | ≥ 60 dB (SC/APC) |
| Uniformity | ≤ 1.5 dB |
| Directivity | ≥ 55 dB |
| Polarization Dependent Loss | ≤ 0.2 dB |
| Max Input Power | ≤ 300 mW |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Cassette Material | ABS plastic, high-impact resistance |
| Cassette Dimensions | Approx. 100mm × 80mm × 10mm |
| Mounting Compatibility | Fits 19” rack-mount and wall enclosures |
| Installation Type | Patch-ready – no splicing required |
| Certifications & Standards | RoHS, Telcordia GR-1209/1221, IEC 61753-1 |
| Applications | FTTH, GPON, EPON, CATV, Data Centers |
| Key Features | – No pigtail for modular setup
– Angled SC/APC for low reflection
– Compact cassette form |
