7100B Hook Type High Current Meter Ammeter Multimeter with High Voltage AC Current Measurement Cable Leakage Current Detector

7100B Hook Type High Current Meter Ammeter Multimeter with High Voltage AC Current Measurement Cable Leakage Current Detector

The 7100B Hook Type High Current Meter Ammeter Multimeter is an advanced, versatile instrument designed for precise current measurement in a variety of high-voltage, high-current applications. This multimeter combines the functionality of an ammeter, multimeter, and leakage current detector into one compact, user-friendly device. It’s engineered to handle complex measurements involving both direct and alternating currents, while providing valuable insights into cable leakage currents, all without requiring direct contact with the conductor, thanks to its innovative hook design.

Key Features and Functions:

1. High Current Measurement:
   The 7100B is specifically designed for measuring high currents, making it an ideal tool for professionals working with large electrical systems, industrial machinery, and high-power applications. With the ability to measure currents up to 1000A, this device is perfect for testing large circuits and monitoring high-power equipment in real time.
2. Non-Contact AC/DC Measurement:

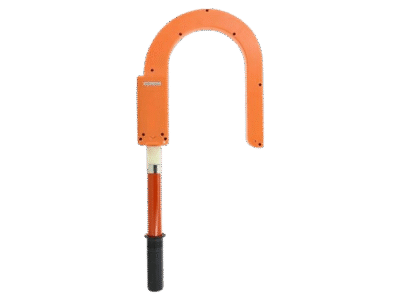

   One of the standout features of the 7100B is its hook type design, which allows for non-contact current measurement. This makes it safer and easier to take readings without directly connecting to the live conductors. By simply clamping the device around a conductor, users can quickly measure both AC and DC currents, enhancing the safety and convenience of the measurement process. The wide measuring range, from milliamps to high amperage, ensures it can meet the needs of a wide variety of applications.
3. High Voltage AC Current Measurement:
   In addition to measuring low and high current, the 7100B is equipped to measure high-voltage AC currents, a crucial feature for troubleshooting and maintaining electrical systems with significant voltage levels. It is ideal for technicians working with power systems, transformers, and other high-voltage machinery. The high voltage capability ensures reliable operation even in challenging environments.
4. Cable Leakage Current Detection:
   The 7100B also functions as a leakage current detector, a vital tool for identifying faulty insulation or leakage in electrical cables. Leakage currents can be a safety hazard and indicate potential breakdowns in the insulation of cables. The multimeter’s ability to measure these small, often subtle currents without disconnecting the system is invaluable for preventative maintenance and ensuring system integrity.
5. Multimeter Functionality:
   Beyond current measurement, the 7100B is a fully functional digital multimeter. It can measure voltage (both AC and DC), resistance, and continuity, enabling users to perform a variety of tasks with one tool. Whether you are troubleshooting a circuit, testing battery voltage, or verifying component resistance, the 7100B offers everything needed for electrical diagnostics in one device.
6. User-Friendly Display and Controls:

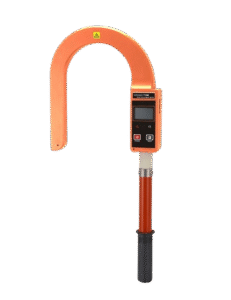

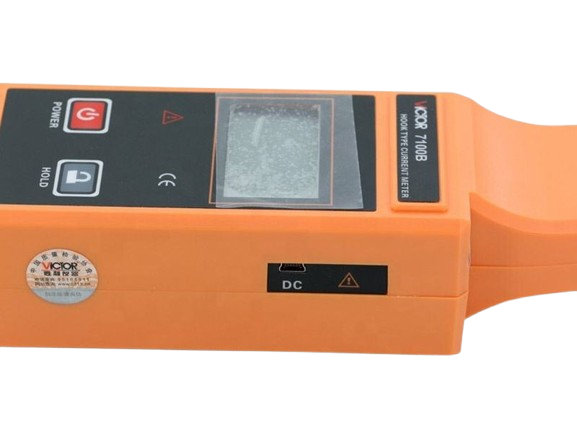

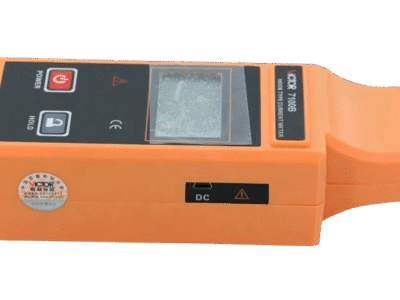

   The 7100B features a clear LCD display that allows users to easily read measurements, even in low-light conditions. The interface is intuitive, with simple buttons and clear indicators for quick navigation through measurement modes. With the hook design and the ability to take measurements without contact, readings are instantaneous, saving valuable time during testing and inspections.
7. Durability and Robust Design:
   Designed with durability in mind, the 7100B is built to withstand the demands of industrial and fieldwork environments. Its rugged, shock-resistant casing ensures it can handle drops, bumps, and exposure to challenging conditions. Additionally, the device is lightweight and portable, making it easy to carry around to job sites or around a workshop.
8. Safety Features:
   The 7100B is designed with user safety as a priority. It features overload protection, ensuring that users can safely take measurements on high-voltage and high-current systems without damaging the multimeter. The insulation and hook design further enhance safety by eliminating the need for direct contact with live wires.

Applications:

• Electrical Inspections: The 7100B is essential for electrical contractors and service technicians who need to quickly and accurately diagnose electrical issues in both residential and industrial systems. Its high current and voltage capabilities make it ideal for testing power distribution equipment, circuits, and industrial machines.
• Leakage Detection: The leakage current detection feature is valuable for identifying potential faults in power cables and other equipment, helping to prevent electrical hazards and ensuring compliance with safety regulations.
• Power Plant and Industrial Use: With its robust design and high current measurement capabilities, the 7100B is perfect for use in power plants, factories, and manufacturing facilities where high-voltage and high-current testing is frequently required.
• Research and Development: For R&D departments working with electrical devices or systems, the multimeter provides precise measurements that are essential for evaluating performance and testing prototypes.

Specification  7100B Hook Type High Current Meter Ammeter Multimeter:
