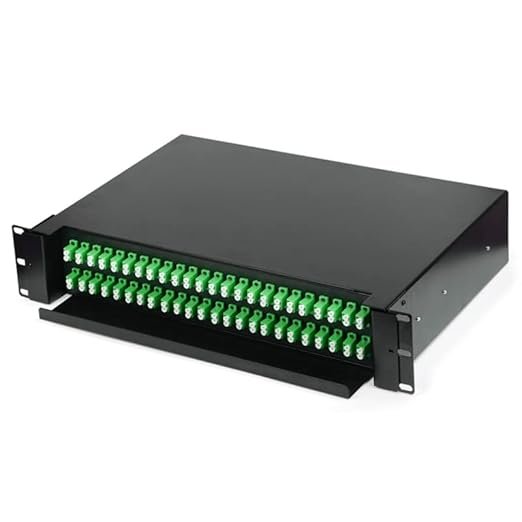

48 PORTS ODF OPTICAL DISTRIBUTION FRAME PATCH PANEL RACK MOUNT 19 INCH STEEL DRAWER TYPE SC UPC SC APC LC UPC LC APC SINGLEMODE SM MULTIMODE MM
An optical distribution frame, is a crucial component of a fiber optic network. It provides a central location for managing and organizing fiber optic cables, making it easier to connect and maintain them. It typically contain several ports or slots into which fiber optic cables can be plugged, allowing for efficient and organized cable management.
The primary function of an ODF is to distribute optical signals from one cable to multiple others. This process is done using a combination of Fiber optic splitters and patch cords. Splitters divide the signal from a single cable into multiple branches, while patch cords connect the splitters to the various ports on it. This allows a single signal source, such as a Fiber optic switch or router, to be distributed to multiple devices or destinations.
Port Configurations: Fiber optic patch panels come in various configurations, including options for 12, 24, 48, 72, and even 144 fiber connections. This flexibility allows users to choose a panel that best fits their network size and requirements.
Rack-Mountable Designs: Most patch panels are designed to be rack-mounted, with standard sizes such as 1U, 2U, 3U, and 4U. This makes them suitable for installation in server racks or telecommunications cabinets.
Connector Types: They support various connector types, including LC, SC, and MTP/MPO connectors, which can be used for both single mode and multimode fiber applications. This versatility is crucial for high-density fiber optic network deployments.
Cable Management: Patch panels help maintain proper cable management by providing a structured way to organize fiber cables, which is vital for maintaining signal integrity and ease of maintenance.
Features:
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management
- FC, SC, ST, LC adapter patch panel for option, easy to replace
- Front access panel design for easy operation
- Suitable for 19’’ or 23’’ standard optic distribution cabinets
- White or black color 9 Material: Cold-roll steel
- 2 RU, rackunit
Applications
- For managing connections between servers and network equipment.
- Telecommunications: To facilitate connections in telecom networks.
- Enterprise Networks: For structured cabling systems in office environments.
DIFFERENT TYPES OF 48 CORE 2U ODF
48 PORTS SC UPC ODF: 48 Ports Optical Distribution Frame loaded with 48 pcs SC UPC Coupler & 48 pcs SC UPC fiber pigtail Singlemode, rack mounted, black

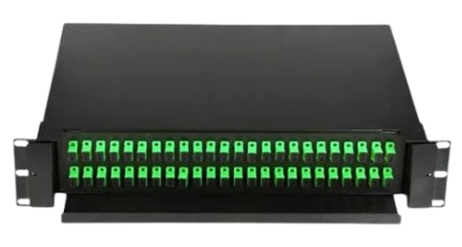

48 PORTS SC APC ODF: 48 Ports Optical Distribution Frame loaded with 48 pcs SC APC Coupler & 48 pcs SC APC fiber pigtail Singlemode, rack mounted, black

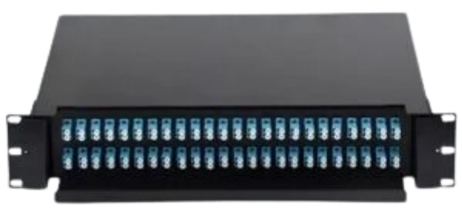

48 PORTS LC UPC ODF: 48 Ports Optical Distribution Frame loaded with 48 pcs LC UPC Coupler & 96 pcs LC UPC fiber pigtail Singlemode, rack mounted, black
48 PORTS LC APC ODF: 48 Ports Optical Distribution Frame loaded with 48 pcs LC APC Coupler & 96 pcs LC APC fiber pigtail Singlemode, rack mounted, black
