4/8 Ports 100M Ethernet Switch with Uplink RJ45 Ports Network Switch for IP Camera/Wireless AP AI Smart Switch

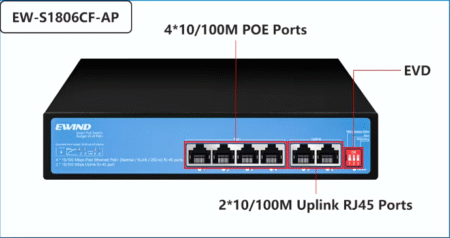

EW-S1806CF-AP
series is a 10/100M unmanaged PoE switch. It has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-4 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W.

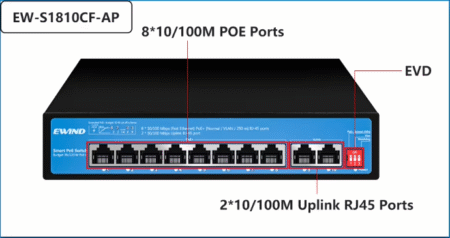

EW-S1810CF-AP
series is a 10/100M unmanaged PoE switch. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 120W.
As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Products Description
VLAN | Support | Transmission Rate | 10/100 Mbps |
Switch Capacity | 1.2Gbps~2Gbps | Communication Mode | Full-Duplex & Half-Duplex |
Function | POE,VLAN Support | PoE Standard | IEEE802.3af/at |
Power Supply Pin | Default 1/2(+), 3/6(-) | Power Supply | Build-in power adaptor AC100~240V 50-60Hz |
Lightning Protection | 4kv | Protection Level | IP30 |
Warranty | 2 years, lifetime maintenance | Plug type | US/EU/UK/AU Plug |
Feature 1 | With the Dial code switch | Feature 2 | E: AI Extend 300meters transmission |
Feature 3 | V: Turn on, 1-4/8 Port support each port isolation & VLAN | Feature 4 | D: Turn on, 1-4/8 Port support AI-PoE Network self-healing mode |
Feature 5 | Automatic solve the camera problem &reduce after-sale(PoE Watchdog) | Feature 6 | Support port priority by default. |
EW-S1806CF-AP
series is a 10/100M unmanaged PoE switch. It has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-4 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W.
EW-S1810CF-AP
series is a 10/100M unmanaged PoE switch. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 120W.
As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Related Products
High Precision Fiber Cleaver
₱0
High Precision Fiber Cleaver
Fiber optic cleavers are cutting tools that make optical fiber end face cuts. Applications for fiber optic cleavers include
networking and telecommunications. They are often used with Fiber Optic Cables, Fiber Optic Connectors, and Fiber Optic Splicers.
The primary function of a fiber optic cleaver is to precisely cut optical fiber. These tools are relied on to cut the fiber as
smoothly as possible to reduce loss of signal. If the cut of the fiber is not a clean perpendicular cut then the rough surfaces results in optical return loss from the scattering or reflection of light.
VFL 5KM 10km 15km 30km vfl 30mw Kit vfl 50km Visual Fault Locator
₱0
Product name | FTTH visual fault lcoator |
Wavelength | 650nm±10nm |
Emitter Type | FP-LD laser |
Output power | 5KM,10KM,30KM ect |
connector | 2.5mm universal adapter |
Working mode | Both CW and Pules available |
Operating temperature | -10~+45 °C |
Storage temperature | -40~+70 °C |
Power | 2pcs AA battery |
Working hours | 60 |
Weight | 78g (excluding batteries) |
Dimension (mm) | 168 X 27 |
Selling Units | Single item |
Single package size | 20X13X5 cm |
Single gross weight | 0.12 kg |
Package Type | packing by a plastic box then in a carton |
Signal Fire AI-9 Fiber Fusion Splicer Machine
₱0
Signal Fire AI-9 Fiber Fusion Splicer Machine
Signal Fire AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer.
Optical Fiber Identifier
₱0
Optical Fiber Identifier
Optical Fiber Identifier is an important tool for optical fiber network maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber.
Function:
- Direction indication of optical signal, for single mode and multi-mode
- Automatic identification of three signal frequencies (270Hz / 1kHz / 2KHz)
- Four in one universal fixture, online testing, no need to replace the fixture
- Hidden red light source, stable and strong light source, effective with line detection
- Power display
- Automatic shutdown
- Specifications
- Identified Wavelength Range:800nm-1700nm
Optical Fiber Identifier
Fiber Type:
- Identified Signal Type:270Hz/1KHz/2KHz
- Display Type:LED
- Detector Type: InGaAs
- Alkaline Battery:2*No.5 dry battery
- Weight:180g
- Dimension:240*47*29mm
SC APC Fast Connector
₱0
Fiber Fast Connector is used for field assembled
optical fiber connector, widely used in fiber to the
home (FTTH) access optical networks, to assem-
ble with drop cable quickly.
Application
1.Used to open the FTTH fiber terminal end.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, mainte
-nance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and
maintenance.
6.Optical fiber access of mobile base station.
COMPTYCO AUA-400 Fiber Optic Inspection Microscope Probe with 3.5 inch Display Screen Monitor
₱0
COMPTYCO AUA-400 Fiber Optic Inspection Microscope Probe with 3.5 inch Display Screen Monitor
FTTH Tool Kit 8-in-1
₱2,700
FTTH Tool Kit
Fiber Optic stripper
Cable Stripper
Alcohol Bump Bottle
Visual Fault Locator
Optical power meter
Optical Fiber Cleaver
Fiber cutter
Carrying Case/bag
Longitudinal Opening Knife Longitudinal Sheath Cable Slitter Fiber Optical Cable Stripper SI-01
₱0
Longitudinal Opening Knife Longitudinal Sheath Cable Slitter Fiber Optical Cable Stripper SI-01
Features:
Longitudinal Fiber Cable Stripper SI-01
Size:208*88*36 mm
Application: 2F-288F armoured cable
Cable out diameter: 10mm-25mm
- Perfect tool for cutting jackets from a variety of fiber optic cable
- V-opening in balde
- Adjustable blades with a screwdriver for various size cables
- Economical tool for multiple cables
NK6800 series Multi Function OTDR
Call for Price
- 7-inch Capacitive touch screen
- Max Dynamic Range is 45dB/43dB(1310nm/1550nm)
- OTDR：MM 850nm/1300nm、SM 1310nm/1490nm/1550nm/1625nm/1650nm
- OTDR/Event map/OPM/LS/VFL/End face detection/Loss test
- Fiber tester instrument, best OTDR of quality
C-CORP 12 IN 1 OTDR
₱0
Features:
1.Expert OTDR: Professional measurement, curve/list/map are displayed simultaneously.
2.Auto OTDR: no complex settings, one key test.
3.OPM supports CW/270/330/1k/2kHz frequency identification.
4.VFL and LS can run in the background, multi task can be operated simultaneously.
5.LS supports CW/ modulation mode output with adjustable output power.
6.RJ45 cable tracker of digital radar, stronger anti-jamming ability.
7.Auto OTDR, expert OTDR, event map, OPM, LS, VFL,RJ45 cable sequence, 8.RJ45 cable tracker, RJ45 cable sequence, RJ45 cable length, end face detection, flash light optical loss test.
9.RJ45 cable sequence, cable length test, up to 300m.
10.One click screen capture, easy to save the interface.
11.Support ILOM.
12.Support SC/APC
- Auto OTDR
- Expert OTDR
- Event Map
- Optical Power Meter (OPM) -50 +26
- Laser Source (LS)
- Visual Fault Locator (VFL) 10m W 10km
- RJ45 Cable Sequence
- RJ45 Cable Tracker
- RJ45 Cable Length (up to 300m)
- End Face Detection
- Support ILOM
- Support SC/APC SC/UPC
- Wavelength 1310/1550
- Dynamic Range 26/24dB
- Test Range 100km Event Blind Zone 2.5m
- ATT Blind Zone 8m
- 4.3 inches IPS TFT LCD Touch Screen
- Lithium Battery 3.7V 4000mAh
- SOR Standard File Format
Optical Light Source (OLS)
₱0
SNP3109 optical light source can provide 1 to 4
output wavelengths to meet specific requirements,
including the 650nm red source and the
1310/1550nm wavelengths for single mode fiber or
the 850/1300nm wavelengths for multimode fiber,
as well as other wavelengths according to customer
needs. Together with the SNP3208 optical power
meter, it is a perfect solution for the fiber optic net-
work characterization.
