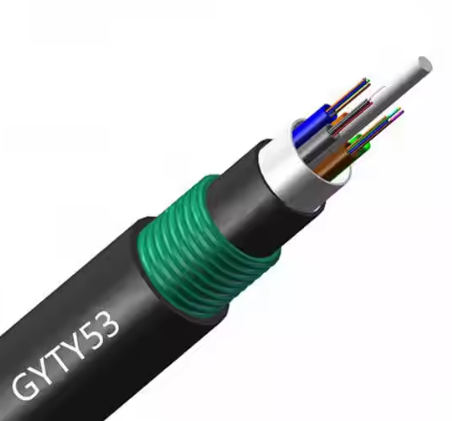

2 4 6 8 12 16 24 48 96 144 core Fiber Optic Cable GYTY53 Direct burial Double Sheath and Armored Outdoor Optical Fiber Cable

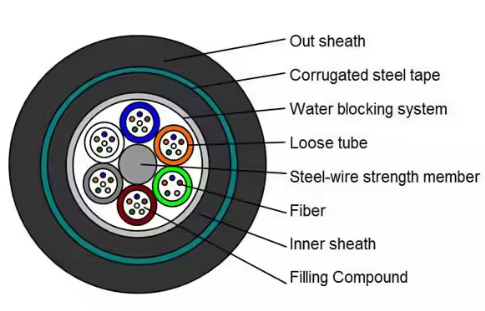

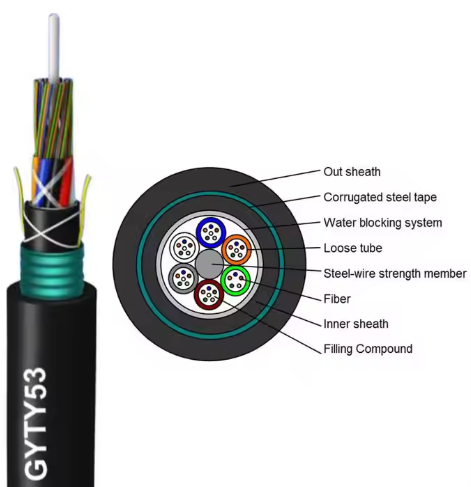

GYTY53 The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.the cable core is filled with filling compound to protect it from water ingress,over which a thin PE inner sheath is applied.After the PSP is longitudinally applied overthe inner sheath, the cable is completed with a PE sheath.
Characteristics
- Steel wire strength filler protect tube fiber.steel tape armord.
- Good ultra violet radiation resistant property.
- Double sheath.
- Good moisture-resistance.
Application
- Adopted to Outdoor distribution.
- Suitable for aerial pipeline laying method.
- Long distance and local area network communication.
Method of installation
- Direct burial preferred
- Other methods of installation are also available
Technical Parameter
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength （N） | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
24 | 12 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
36 | 12 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
42 | 12 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
48 | 13 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
60 | 13 | 185 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
72 | 13 | 215 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
96 | 14.5 | 215 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
144 | 18.3 | 275 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
