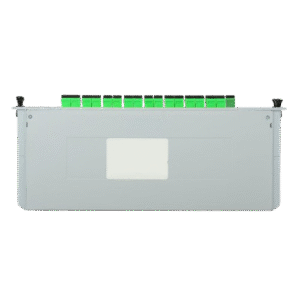

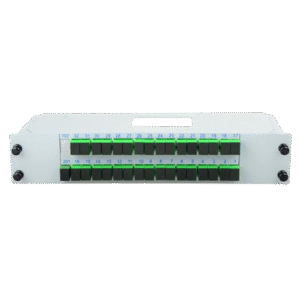

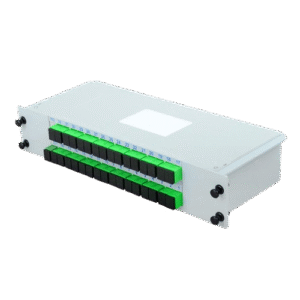

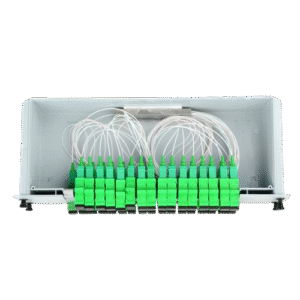

1×32 SC/APC Cassette PLC Splitter – Power-Efficient Solution for FTTH Distribution

1×32 SC/APC Cassette PLC Splitter – Power-Efficient Solution for FTTH Distribution

The 1×32 SC/APC Cassette PLC Splitter is a high-performance, power-efficient solution specifically designed for FTTH (Fiber to the Home) and FTTx (Fiber to the x) network deployments. Utilizing Planar Lightwave Circuit (PLC) technology, this splitter evenly distributes a single optical signal into 32 output fibers, providing stable and reliable optical signal transmission across all outputs. It’s the ideal solution for high-density fiber networks requiring consistent performance and long-term reliability.

What sets this 1×32 splitter apart is its compact cassette-style form factor, which enables easy insertion into optical distribution frames (ODFs), rack-mounted panels, or fiber termination boxes. This saves valuable space in data centers, central offices, and street cabinets while offering excellent accessibility for installation and maintenance.

The splitter is equipped with SC/APC connectors, widely recognized for their low insertion loss and high return loss, ensuring minimal signal degradation and maximizing network quality. The angled physical contact of SC/APC connectors reduces back reflection, making this splitter ideal for high-speed and high-performance applications such as GPON, EPON, and XPON networks.

Constructed with a premium-grade PLC chip, the splitter delivers exceptional uniformity, low polarization dependent loss (PDL), and thermal stability across a wide operating temperature range. It can be deployed in both indoor and protected outdoor environments, supporting a broad range of commercial and residential applications.

As a fully passive optical component, this splitter does not require external power or active electronics. That means lower operational costs, zero power consumption, and reduced maintenance over its lifespan—making it a sustainable and energy-efficient solution for modern fiber infrastructure.

Key Features:

• 1×32 PLC configuration for large-scale signal distribution
• SC/APC connectors ensure high return loss and reliable connectivity
• Cassette-style housing for easy installation in fiber panels and cabinets
• Low insertion loss and high uniformity across all ports
• No external power needed – fully passive and energy-efficient
• Wide wavelength compatibility (1260–1650 nm) for GPON, EPON, XPON
• Compact, rugged design ideal for space-limited environments
• Telcordia GR-1209/GR-1221 compliant for performance and durability

Typical Applications:

• FTTH (Fiber to the Home) deployments
• FTTx distribution networks
• GPON/EPON/XPON architecture
• Optical signal splitting in central offices
• Multi-dwelling units (MDUs) and residential blocks
• Data centers and enterprise network nodes

This 1×32 SC/APC PLC splitter is a critical component in any high-capacity optical access network. Its ability to distribute optical signals uniformly to multiple endpoints with minimal signal loss makes it ideal for broadband applications, video distribution, and voice/data services.

In a world demanding scalable, energy-efficient, and high-performance fiber solutions, the 1×32 SC/APC Cassette PLC Splitter delivers exceptional value—reducing deployment costs while ensuring quality service for every connected subscriber.

1×32 SC/APC Cassette PLC Splitter – Technical Data Sheet
