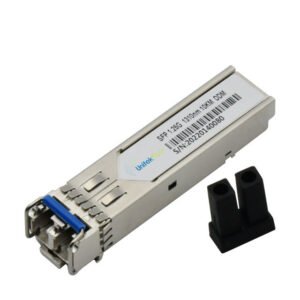

C-CORP 1.25G SFP OPTICAL TRANCEIVERS
1.25G SFP OPTICAL
- Hot-swappable SFP package
- Complies with SFP MSA standard
- Supports up to 1.25Gb/s rate
- Provides CWDM18 wave (1270~1610nm) selection
- Single-fiber LC/single-fiber SC/dual-fiber LC interface
- Transmission distance supports from 550 meters to 120 kilometers +3.3V single power supply voltage
- Built-in digital diagnostic function
- Operating temperature range: 0~70°C or -40~85 °C
1.25G SFP OPTICAL
| Package | Part No. | Data Rate | Wavelength | Distance | Source | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃） |
| SFP SX | C-CORP-GE-M85L-05D | 1.25G | 850nm | 550M | VCSEL/PIN | -9~-3 | ＜-18 | Duplex LC | 0-70 |
| SFP LX | C-CORP-GE-S31L-20D | 1.25G | 1310nm | 20km | FP/PIN | -9~-3 | ＜-22 | Duplex LC | 0-70 |
| SFP EX | C-CORP-GE-S31L-40D | 1.25G | 1310nm | 40km | DFB/PIN | -5~0 | ＜-24 | Duplex LC | 0-70 |
| SFP ZX | C-CORP-GE-S55L-80D | 1.25G | 1550nm | 80km | DFB/PIN | -2~-5 | ＜-26 | Duplex LC | 0-70 |
| SFP ZX | C-CORP-GE-S55L-120D | 1.25G | 1550nm | 120km | DFB/PIN | 1~5 | ＜-30 | Duplex LC | 0-70 |
| SFP EZX | C-CORP-GE-S55L-200D | 1.25G | 1550nm | 200km | DFB/APD | 4~7 | ＜-34 | Duplex LC | 0-70 |
| SFP BIDI | C-CORP-GE-B35L-3D | 1.25G BIDI | Tx1310nm/Rx1550nm | 3km | FP/PIN | -9~-3 | ＜-21 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B53L-3D | 1.25G BIDI | Tx1550nm/Rx1310nm | 3km | FP/PIN | -9~-3 | ＜-21 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B35S-3D | 1.25G BIDI | Tx1310nm/Rx1550nm | 3km | FP/PIN | -9~-3 | ＜-21 | SC | 0-70 |
| SFP BIDI | C-CORP-GE-B53S-3D | 1.25G BIDI | Tx1550nm/Rx1310nm | 3km | FP/PIN | -9~-3 | ＜-21 | SC | 0-70 |
| SFP BIDI | C-CORP-GE-B35L-20D | 1.25G BIDI | Tx1310nm/Rx1550nm | 20km | FP/PIN | -9~-3 | ＜-22 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B53L-20D | 1.25G BIDI | Tx1550nm/Rx1310nm | 20km | DFB/PIN | -9~-3 | ＜-22 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B35S-20D | 1.25G BIDI | Tx1310nm/Rx1550nm | 20km | FP/PIN | -9~-3 | ＜-22 | SC | 0-70 |
| SFP BIDI | C-CORP-GE-B53S-20D | 1.25G BIDI | Tx1550nm/Rx1310nm | 20km | DFB/PIN | -9~-3 | ＜-22 | SC | 0-70 |
| SFP BIDI | C-CORP-GE-B34L-20D | 1.25G BIDI | Tx1310nm/Rx1490nm | 20km | FP/PIN | -9~-3 | ＜-22 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B43L-20D | 1.25G BIDI | Tx1490nm/Rx1310nm | 20km | DFB/PIN | -9~-3 | ＜-22 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B34L-40D | 1.25G BIDI | Tx1310nm/Rx1490nm | 40km | DFB/PIN | -5~0 | ＜-24 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B43L-40D | 1.25G BIDI | Tx1490nm/Rx1310nm | 40km | DFB/PIN | -5~0 | ＜-24 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B35L-40D | 1.25G BIDI | Tx1310nm/Rx1550nm | 40km | DFB/PIN | -5~0 | ＜-24 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B53L-40D | 1.25G BIDI | Tx1550nm/Rx1310nm | 40km | DFB/PIN | -5~0 | ＜-24 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B45L-80D | 1.25G BIDI | Tx1490nm/Rx1550nm | 80km | DFB/PIN | -2~5 | ＜-26 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B54L-80D | 1.25G BIDI | Tx1550nm/Rx1490nm | 80km | DFB/PIN | -2~5 | ＜-26 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B45L-120D | 1.25G BIDI | Tx1490nm/Rx1550nm | 120km | DFB/PIN | 0~5 | ＜-30 | LC | 0-70 |
| SFP BIDI | C-CORP-GE-B54L-120D | 1.25G BIDI | Tx1550nm/Rx1490nm | 120km | DFB/PIN | 0~5 | ＜-30 | LC | 0-70 |
