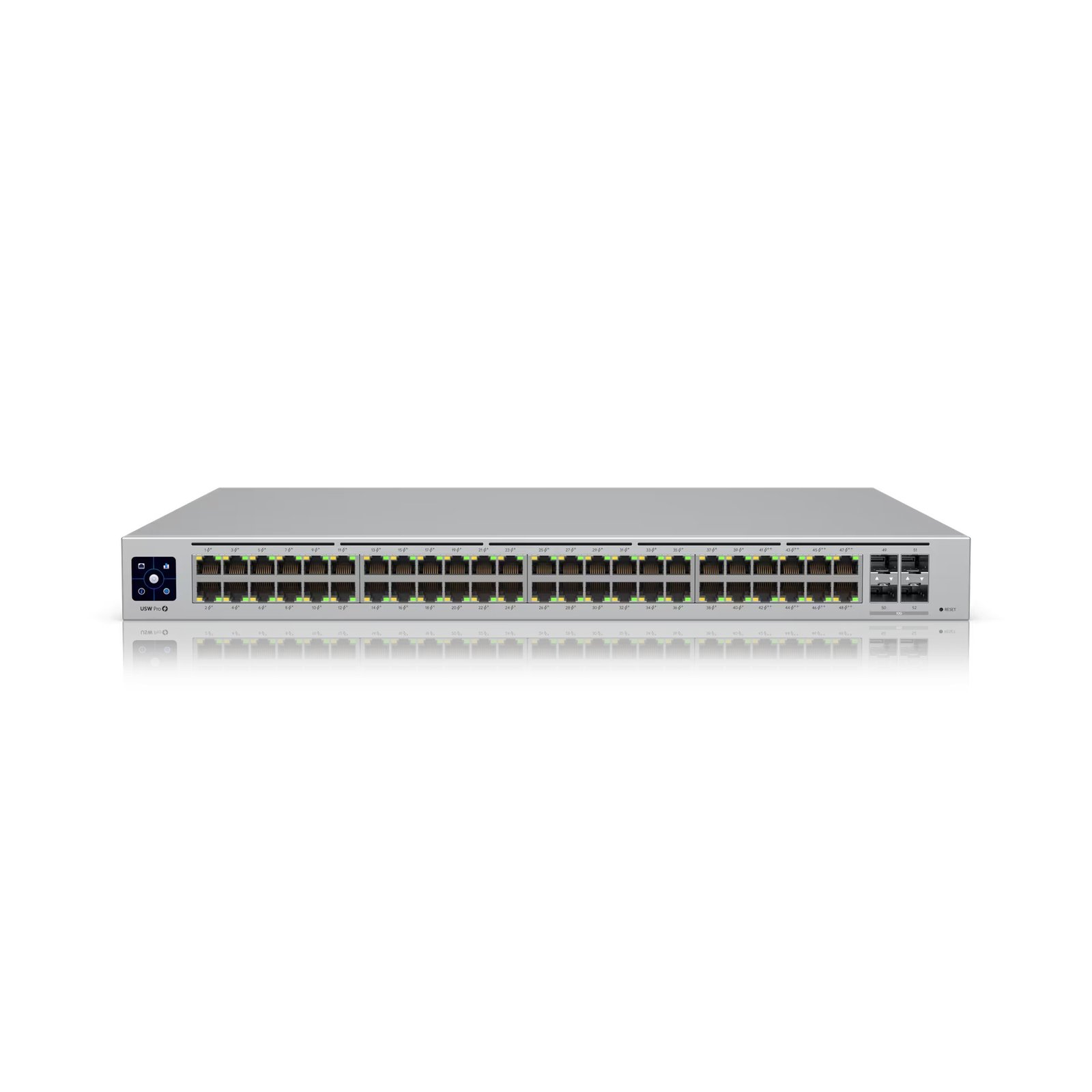

Ubiquiti USW Pro 48 PoE High-Performance 48-Port Managed Switch with PoE Support

Ubiquiti USW Pro 48 PoE: High-Performance 48-Port Managed Switch with PoE Support

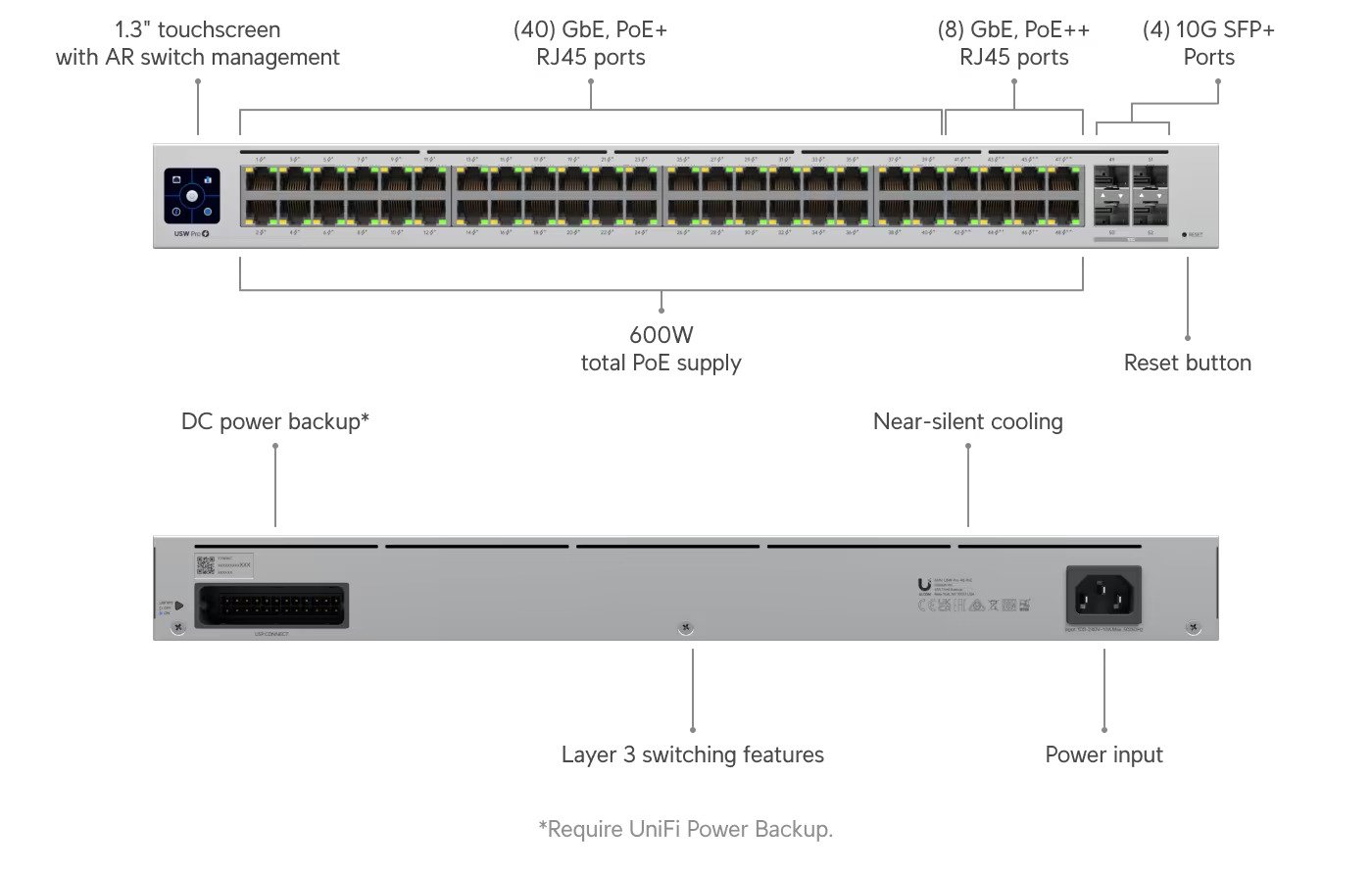

The Ubiquiti USW Pro 48 PoE is a powerful, feature-rich, Layer 2 and Layer 3 switch designed to meet the demands of modern enterprise networks. As part of Ubiquiti’s UniFi Switch Pro series, this model offers 48 fully managed Gigabit Ethernet ports, with 40 supporting 802.3at PoE+ and 8 offering 802.3bt PoE++, delivering high power for devices like access points, IP cameras, VoIP phones, and other PoE-enabled hardware. With an additional four 10G SFP+ uplink ports, the USW Pro 48 PoE ensures maximum performance and flexibility for high-bandwidth networking environments.

Robust and Scalable Networking

Built to support large-scale networks, the USW Pro 48 PoE is ideal for enterprise, campus, and hospitality deployments. With its 48 Gigabit RJ45 ports, network administrators can connect a vast array of devices without the need for additional switches. This results in reduced infrastructure complexity and simplified cable management. Each port is independently managed, allowing for flexible VLAN configuration, port isolation, and traffic monitoring.

The switch’s Layer 3 capabilities, including static routing and inter-VLAN routing, make it more than just a basic access switch. It can handle critical routing functions at the distribution layer, allowing for improved traffic flow and optimized network segmentation.

Power Over Ethernet: More Than Just Convenience

With PoE+ (802.3at) and PoE++ (802.3bt) support, the USW Pro 48 PoE delivers up to 600W of total PoE power. This makes it perfect for powering a variety of network devices directly over Ethernet cables, eliminating the need for separate power supplies or additional wiring. The inclusion of PoE++ means even high-powered devices like UniFi Protect G4 Pro cameras or Wi-Fi 6 access points can be powered reliably.

Administrators can configure PoE settings per port directly from the UniFi Controller, allowing granular control over power distribution and energy usage.

Enterprise-Class Performance

Under the hood, the USW Pro 48 PoE is built for performance. With a switching capacity of 176 Gbps and a forwarding rate of 130.94 Mpps, it can handle heavy network loads with ease. The inclusion of four 10G SFP+ uplink ports ensures that this switch is future-proof and capable of supporting high-throughput backhaul connections to core switches or data centers.

This high-speed uplink capability is essential for environments where large volumes of data are transmitted—such as in video surveillance systems, large-scale VoIP deployments, or high-speed internet backbones.

Smart Management via UniFi Controller

What sets the USW Pro 48 PoE apart is its seamless integration with the UniFi Network Controller. This intuitive, web-based interface allows centralized configuration, monitoring, and management of all UniFi devices on the network. From port-level statistics and real-time traffic monitoring to VLAN assignments and firmware upgrades, everything can be managed from a single pane of glass.

With UniFi’s software-defined networking (SDN) architecture, scaling the network is easy. Add more switches, access points, or gateways and manage them all from the same platform.

Silent Cooling and Sleek Design

The switch features a fanless design under light loads and uses near-silent cooling when under heavier usage, making it suitable for office, retail, or conference room deployments. Its 1U rack-mountable chassis ensures it fits neatly into standard server racks, and the sleek front-panel LCD provides status indicators and allows quick diagnostics without needing to access the web interface.

Use Cases

• Enterprise Networks: Ideal for high-density office environments where dozens of wired devices need to be connected and powered.
• Campus/School Deployments: Efficiently supports PoE-powered access points across multiple classrooms or buildings.
• Surveillance Systems: Powers and connects IP cameras with high bandwidth requirements and PoE power demands.
• Hospitality Industry: Perfect for hotels that need reliable connectivity and power for in-room access points, phones, and IoT devices.
