Temporary Grounding Cluster Equipment
Order Now

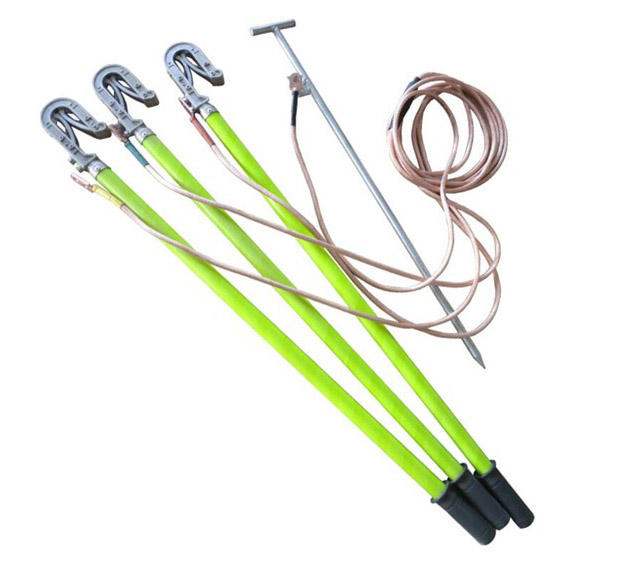

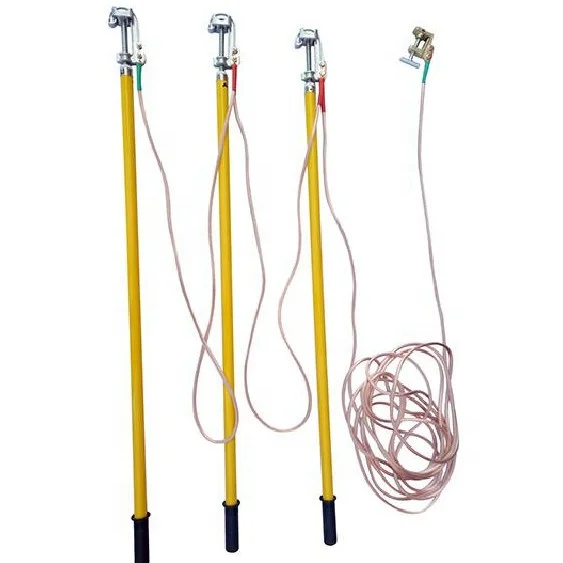

Temporary Grounding Cluster Equipment
DESCRIPTION
The temporary grounding equipment are designed for using to protect workers from high voltage electric shock.
Suitable for making power failed equipment or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipment.

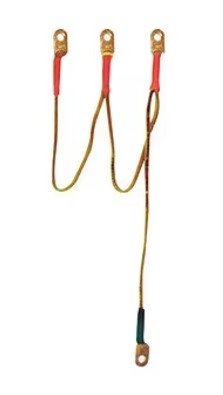

It mainly comprises Ground Sticks, Ground Cable, Ground Clamp or Ground Pin.
... people are viewing this right now
Compare
Temporary Grounding Cluster Equipment
DESCRIPTION
The temporary grounding equipment are designed for using to protect workers from high voltage electric shock.
Suitable for making power failed equipment or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipment.
It mainly comprises Ground Sticks, Ground Cable, Ground Clamp or Ground Pin.
Types of Temporary Grounding Cluster Equipment
1. COMBINATION TYPE
SPECIFICATION | ||||
| Model | Ground Cable Size | Recommended Length of Cable | Length of Ground Stick | Number of Ground Stick |
| CC-0.4KV | 16mm² | 3×1.5m+8m | 0.5m | 3rods/set |
| CC-10KV | 25mm² | 3×1.5m+10m | 1.0m | 3rods/set |
| CC-35KV | 35mm² | 3×1.5m+10m | 1.5m | 3rods/set |
| CC-110KV | 35mm² | 3x2m+12m | 2.0m | 3rods/set |
| CC-220KV | 50mm² | 3x2m+15m | 3.0m | 3rods/set |
| Remark: The size can be customized according to your requirements. | ||||

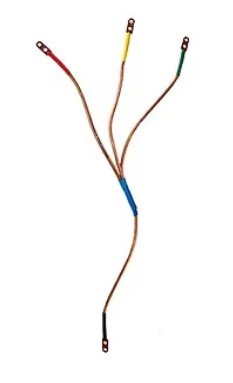

2. TANDEM TYPE
SPECIFICATION | ||||
| Model | Ground Cable Size | Recommended Length of Cable | Length of Ground Stick | Number of Ground Stick |
| CCTT-0.4KV | 16mm² | 2×1.5m+8m | 0.5m | 3rods/set |
| CCTT-10KV | 25mm² | 2×1.5m+10m | 1.0m | 3rods/set |
| CCTT-35KV | 35mm² | 2x2m+10m | 1.5m | 3rods/set |
| CCTT-110KV | 35mm² | 2x2m+12m | 2.0m | 3rods/set |
| CCTT-220KV | 50mm² | 2x3m+15m | 3.0m | 3rods/set |
| Remark: The size can be customized according to your requirements. | ||||

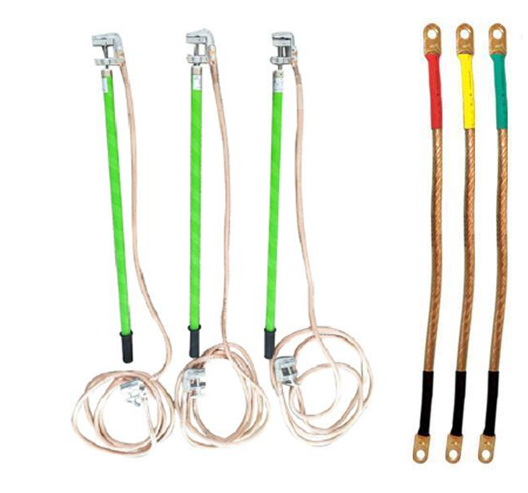

3. SINGLE PHASE TYPE
SPECIFICATION | ||||
| Model | Ground Cable Size | Recommended Length of Cable | Length of Ground Stick | Number of Ground Stick |
| CCSP-0.4KV | 16mm² | 5m x 3pcs | 0.5m | 3rods/set |
| CCSP-10KV | 25mm² | 10m x 3pcs | 1.0m | 3rods/set |
| CCSP-35KV | 35mm² | 12m x 3pcs | 1.5m | 3rods/set |
| CCSP-110KV | 35mm² | 15m x 3pcs | 2.0m | 3rods/set |
| CCSP-220KV | 50mm² | 18m x 3pcs | 3.0m | 3rods/set |
| CCSP-500KV | 70mm² | 18m x 3pcs | 6.0m | 3rods/set |
| Remark: The size can be customized according to your requirements. | ||||

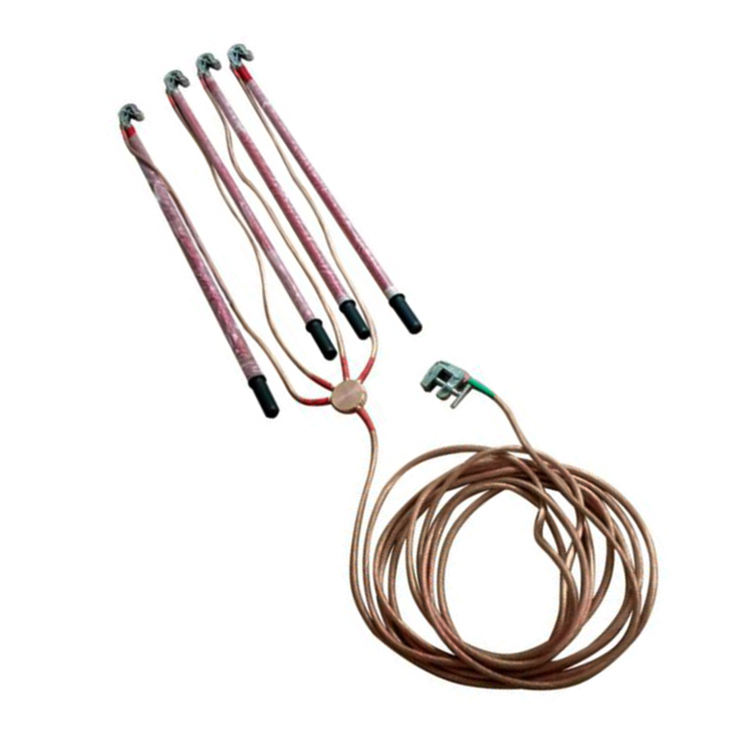

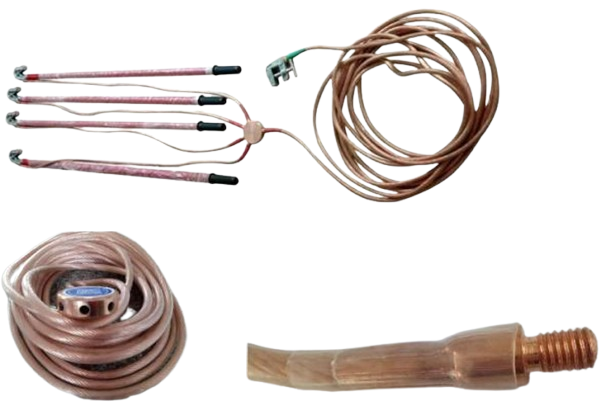

4. DETACHABLE TYPE
| SPECIFICATION | ||||
| Model | Ground Cable Size | Recommended Length of Cable | Length of Ground Stick | Number of Ground Stick |
| CCDT-0.4KV | 16mm² | 4×1.5m+8m | 0.5m | 4rods/set |
| CCDT-10KV | 25mm² | 4×1.5m+10m | 1.0m | 4rods/set |
| CCDT-35KV | 35mm² | 4×1.5m+10m | 1.5m | 4rods/set |
| CCDT-110KV | 35mm² | 4x2m+12m | 2.0m | 4rods/set |
| CCDT-220KV | 50mm² | 4x2m+15m | 3.0m | 4rods/set |
| Remark: The size can be customized according to your requirements. | ||||

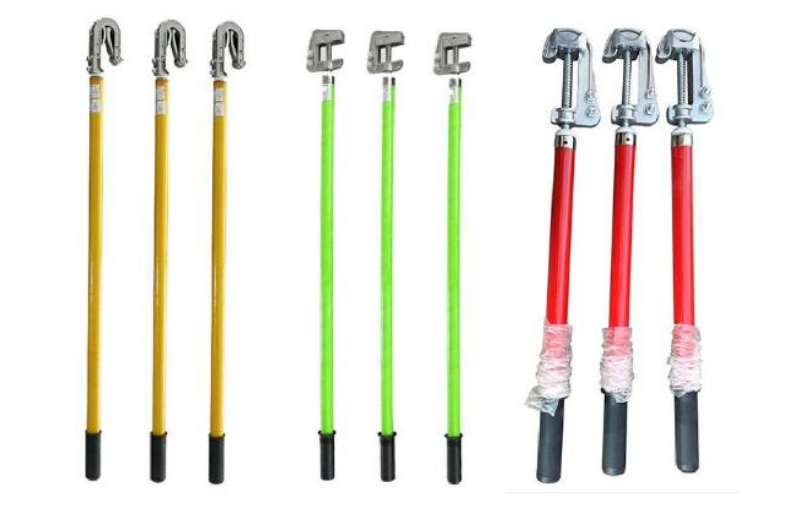

DIFFERENT FIBERGLASS STICK FOR YOUR SELECTION
SPECIFICATION | ||||
| Withstand Voltage | Length of Stick | Sections | Number of Stick | Diameter of Stick |
| 10KV | 1.0M | 1 | 3pcs/set | 30mm |
| 35KV | 1.5M | 1 | 3pcs/set | 30mm |
| 110KV | 2.0M | 2 | 3pcs/set | 30mm |
| 220KV | 3.0M | 2 | 3pcs/set | 32mm |
| 500KV | 6.0M | 4 | 3pcs/set | 36mm |
