Call: (02) 8681 9790 (02) 8818 4883
Please Call for price
RG-NIS3100-4GT2SFP-HP
Order Now
Call for Price
RG-NIS3100-4GT2SFP-HP
Highlight Features
- Three Different Models Meet Various Business Scenario Needs
- Unique Industrial Design Ensures Stable Operation in -40℃ to 80℃
- 8 KV Protection: The Shield Against Voltage Spike
- IP40 Against 1mm Intruders in Dusty Conditions
- Local Network SON, Easy Configuration even without Cloud
- Ruijie Cloud :Easy Management even in Harsh Environments

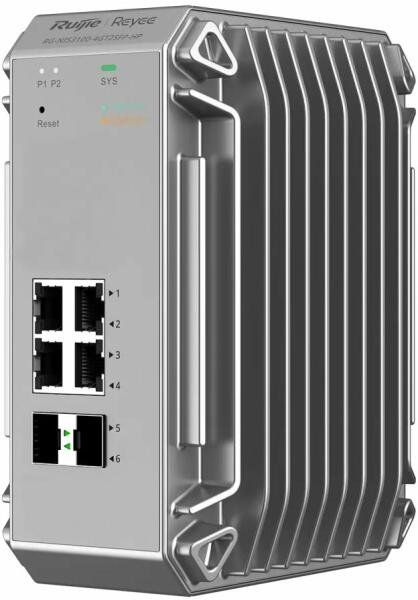

RG-NIS3100-4GT2SFP-HP
RG-NIS3100-4GT2SFP-HP a rugged industrial switch with PoE+, 8 kV surge protection, and high reliability, ensuring stable performance.
Features
- True Industrial-Grade Specially Designed for Harsh Environments
- 12-56V DC Power Supply
- STP/ RSTP/ SNMP/ ERPS1
- -40°C to +80°C Operating Temperature2
- 8kV ESD Protection
Key Specifications
- Number of 1 Gbps Optical Ports (SFP) – 2
- Number of 10/100/1000BASE-T Ports – 4
- Layer – Layer 2
- Switching Capacity – 12 Gbps
- Forwarding Rate – 8.928 Mpps
- MAC Address Table Size – 8000
- Max. Number of VLANs – 4094
- Dimensions (W x D x H) – 85 mm x 132 mm x 165 mm (3.35 in. x 5.20 in. x 6.50 in.)
- Net Weight – 1.39 kg (3.06 lbs)
- Mean Time Between Failure (MTBF) – 200,000 hours
- Port Surge Protection – Common mode: 6 kV
- Number of Fans – Fanless
- Certification – CE; FCC
Product Specifications

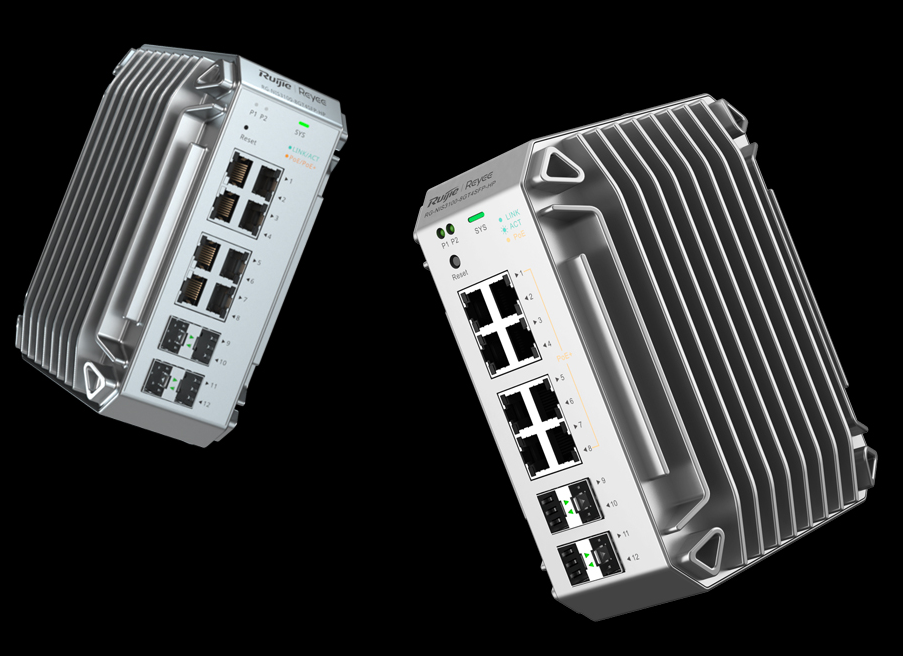

| RG-NIS3100- | RG-NIS3100-4GT2SFP-HP | RG-NIS3100-8GT2SFP-HP | RG-NIS3100-8GT4SFP-HP |
| Total Number of RJ45 Ports | 4 | 8 | 8 |
| Total Number of Optical Ports | 2 | 2 | 4 |
| Number of 1 Gbps Optical Ports (SFP) | 2 | 2 | 4 |
| Number of 10/100/1000BASE-T Ports | 4 | 8 | 8 |
| Number of PoE/PoE+ Ports | 4 | 8 | 8 |
| Max. PoE Power Budget | 120 W | 240 W | 240 W |
| Layer | Layer 2 | Layer 2 | Layer 2 |
| Switching Capacity | 12 Gbps | 20 Gbps | 24 Gbps |
| Forwarding Rate | 8.928 Mpps | 14.88 Mpps | 17.857 Mpps |
| MAC Address Table Size | 8000 | 8000 | 8000 |
| Max. Number of VLANs | 4094 | 4094 | 4094 |
| Dimensions (W x D x H) | 85 mm x 132 mm x 165 mm (3.35 in. x 5.20 in. x 6.50 in.) | 85 mm x 132 mm x 165 mm (3.35 in. x 5.20 in. x 6.50 in.) | 85 mm x 132 mm x 165 mm (3.35 in. x 5.20 in. x 6.50 in.) |
| Net Weight | 1.39 kg (3.06 lbs) | 1.42 kg (3.13 lbs) | 1.47 kg (3.24 lbs) |
| Mean Time Between Failure (MTBF) | 200,000 hours | 200,000 hours | 200,000 hours |
| Warranty | 5 years | 5 years | 5 years |
| Flow Control | Yes | Yes | Yes |
| STP (IEEE 802.1D) | Yes | Yes | Yes |
| RSTP (IEEE 802.1w) | Yes | Yes | Yes |
| Link Aggregation | Yes | Yes | Yes |
| Broadcast Storm Control | Yes | Yes | Yes |
| Multicast Storm Control | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes |
| Voice VLAN | Yes | Yes | Yes |
| RLDP | Yes | Yes | Yes |
| IGMP Snooping v1 | Yes | Yes | Yes |
| IGMP Snooping v2 | Yes | Yes | Yes |
| IGMP Snooping v3(Basic) | Yes | Yes | Yes |
| IP Standard ACL | Yes | Yes | Yes |
| MAC Extended ACL | Yes | Yes | Yes |
| IP Extended ACL | Yes | Yes | Yes |
| SNMP v1 | Yes | Yes | Yes |
| SNMP v2c | Yes | Yes | Yes |
| SNMP v3 | Yes | Yes | Yes |
| Web Management | Yes | Yes | Yes |
| HTTP | Yes | Yes | Yes |
| Ruijie Cloud Management | Yes | Yes | Yes |
| Ruijie Reyee App Management | Yes | Yes | Yes |
| Loop Prevention | Yes | Yes | Yes |
| DHCP Snooping | Yes | Yes | Yes |
| DHCP Client | Yes | Yes | Yes |
| PoE Watchdog | Yes | Yes | Yes |
| QoS | Yes | Yes | Yes |
| EEE | Yes | Yes | Yes |
| Port Surge Protection | Common mode: 6 kV | Common mode: 6 kV | Common mode: 6 kV |
| Number of Fans | Fanless | Fanless | Fanless |
Actual Pictures:
