RG-AP680-L
Order Now
Call for Price

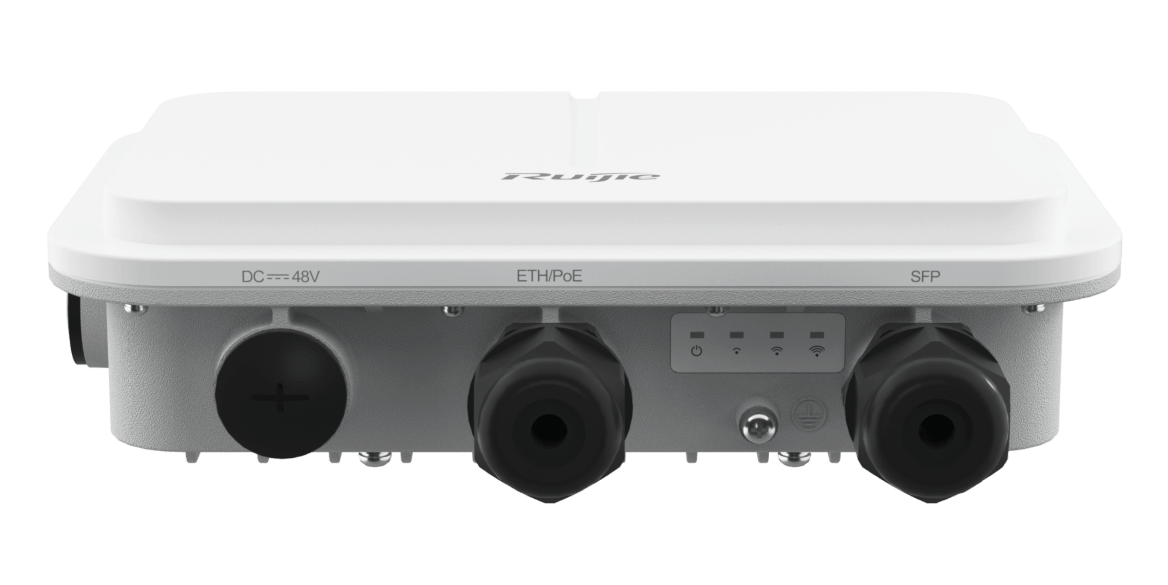

RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Highlight Features
- Industrial-grade product design, IP68 rating, Operating temperature: –40°C to +65°C
- High-power omnidirectional antennas with 360° coverage to every corner
- Upgraded to Wi-Fi 6, a combined data rate of up to 2.976 Gbps
- Ruijie cloud management, intelligent optimization
RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
- Wi-Fi 6 dual-radio wireless access point
- Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
- Built-in omnidirectional antennas
- Up to four spatial streams
- Data rate of up to 2.976 Gbps
- Fat/Fit/Cloud mode switchover
- Electrical and optical uplink ports
- IEEE 802.3af/at-compliant (PoE/PoE+) power supply and DC power supply (48 V/0.35 A)
RG-AP680-L
Features
- Designed for Beach Ruijie Cloud Managed Series Outdoor AP RG-AP680-L
- Industrial-Grade Product Design Ensuring Stable Running in Harsh Environments
- Omnidirectional Antennas with 360° Coverage to Every Corner
Specifications
| Dimensions and Weight | RG-AP680-L |
| Unit dimensions(W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Shipping dimensions(W x D x H) | 415 mm x 242 mm x 337 mm (16.34 in. x 9.53 in. x 13.27 in.) |
| Unit weight | Main unit: 1.12 kg (2.47 lbs) |
| Mounting bracket: 0.9 kg (1.98 lbs) | |
| Shipping weight | 6.43 kg (14.18 lbs) |
| Mounting | Ceiling/Pole-mount (a mounting bracket is delivered with the main unit) |
| Wi-Fi Radio | RG-AP680-L |
| Radio design | Dual-radio and four spatial streams: |
| ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO | |
| ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO | |
| Operating frequencies | Radio 1: 802.11b/g/n/ax |
| ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 | |
| Radio 2: 802.11a/n/ac/ax | |
| ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 | |
| ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 | |
| ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 | |
| ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 | |
| Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. | |
| Country-specific restrictions apply: | |
| Egypt | |
| Radio 1: 802.11b/g/n: 2.400 GHz to 2.4835 GHz | |
| Radio 2: 802.11a/n/ac: 5.150 GHz to 5.350 GHz | |
| Data rates | Combined peak data rate: 2.976 Gbps |
| Radio 1: 2.4 GHz, 574 Mbps | |
| ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) | |
| ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) | |
| Radio 2: 5 GHz, 2.402 Gbps | |
| ● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum) | |
| ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) | |
| ● Two spatial stream Multi-User (MU) MIMO for up to 2.402 Gbps wireless data rate to up to two 1SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) | |
| ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) | |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: |
| 2.4 GHz radio | |
| ● 802.11b: 1, 2, 5.5, 11 | |
| ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 | |
| ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) | |
| ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT40) | |
| ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) | |
| 5 GHz radio | |
| ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 | |
| ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) | |
| ● 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT160) | |
| ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) | |
| Packet aggregation | 802.11n/ac/ax : A-MPDU and A-MSDU |
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz radio: 3.5 dBi |
| 5 GHz radio: 5.5 dBi | |
| Maximum transmit power | 2.4 GHz radio: 28 dBm (25 dBm per chain) |
| 5 GHz radio: 28 dBm (25 dBm per chain) | |
| Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. | |
| Thailand | |
| 2.400 GHz to 2.4835 GHz: 20 dBm | |
| 5.470 GHz to 5.725 GHz: 30 dBm | |
| 5.725 GHz to 5.825 GHz: 30 dBm | |
| Peru | |
| 2.400 GHz to 2.4835 GHz: EIRP ≤ 36dBm | |
| 5.150 GHz to 5.250 GHz: EIRP ≤ 23dBm | |
| 5.250 GHz to 5.350 GHz: EIRP ≤ 30dBm | |
| 5.470 GHz to 5.725 GHz: EIRP ≤ 30dBm | |
| Egypt | |
| 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm | |
| 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm | |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) |
| 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) | |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) | |
| Modulation types | 802.11b: BPSK, QPSK, CCK |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Wi-Fi Radio Frequency Performance | RG-AP680-L | ||
| Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
| 2.4 GHz 802.11b | 1 Mbps | 25 dBm | -92 dBm |
| 2 Mbps | 25 dBm | -82 dBm | |
| 5.5 Mbps | 25 dBm | -84 dBm | |
| 11 Mbps | 25 dBm | -78 dBm | |
| 2.4 GHz 802.11g | 6 Mbps | 25 dBm | -84 dBm |
| 24 Mbps | 23 dBm | -74 dBm | |
| 36 Mbps | 23 dBm | -72 dBm | |
| 54 Mbps | 20 dBm | -67 dBm | |
| 2.4 GHz 802.11n (HT20) | MCS0 | 25 dBm | -84 dBm |
| MCS7 | 20 dBm | -66 dBm | |
| 2.4 GHz 802.11n (HT40) | MCS0 | 25 dBm | -79 dBm |
| MCS7 | 20 dBm | -63 dBm | |
| 2.4 GHz 802.11ax (HE20) | MCS0 | 25 dBm | -84 dBm |
| MCS11 | 18 dBm | -54 dBm | |
| 2.4 GHz 802.11ax (HE40) | MCS0 | 25 dBm | -80 dBm |
| MCS11 | 18 dBm | -51 dBm | |
| 5 GHz 802.11a | 6 Mbps | 25 dBm | -84 dBm |
| 24 Mbps | 23 dBm | -74 dBm | |
| 36 Mbps | 23 dBm | -72 dBm | |
| 54 Mbps | 20 dBm | -67 dBm | |
| 5 GHz 802.11n (HT20) | MCS0 | 25 dBm | -84 dBm |
| MCS7 | 20 dBm | -66 dBm | |
| 5 GHz 802.11n (HT40) | MCS0 | 25 dBm | -81 dBm |
| MCS7 | 20 dBm | -63 dBm | |
| 5 GHz 802.11ac (VHT20) | MCS0 | 25 dBm | -84 dBm |
| MCS9 | 19 dBm | -61 dBm | |
| 5 GHz 802.11ac (VHT40) | MCS0 | 25 dBm | -81 dBm |
| MCS9 | 19 dBm | -56 dBm | |
| 5 GHz 802.11ac (VHT80) | MCS0 | 25 dBm | -78 dBm |
| MCS9 | 19 dBm | -53 dBm | |
| 5 GHz 802.11ax (HE20) | MCS0 | 25 dBm | -84 dBm |
| MCS11 | 18 dBm | -54 dBm | |
| 5 GHz 802.11ax (HE40) | MCS0 | 25 dBm | -81 dBm |
| MCS11 | 18 dBm | -51 dBm | |
| 5 GHz 802.11ax (HE80) | MCS0 | 25 dBm | -78 dBm |
| MCS11 | 18 dBm | -48 dBm | |
| 5 GHz 802.11ax (HE160) | MCS0 | 25 dBm | -73 dBm |
| MCS11 | 18 dBm | -43 dBm | |
| Bluetooth Radio | RG-AP680-L |
| Bluetooth | Bluetooth 5.0 |
| iBeacon Bluetooth, applied to Bluetooth locating and Bluetooth applications | |
| Antenna type | Integrated omnidirectional antenna |
| Maximum antenna gain | 5 dBi |
| Maximum transmit power | 10 dBm |
| Receive sensitivity | -88 dBm (@BLE) |

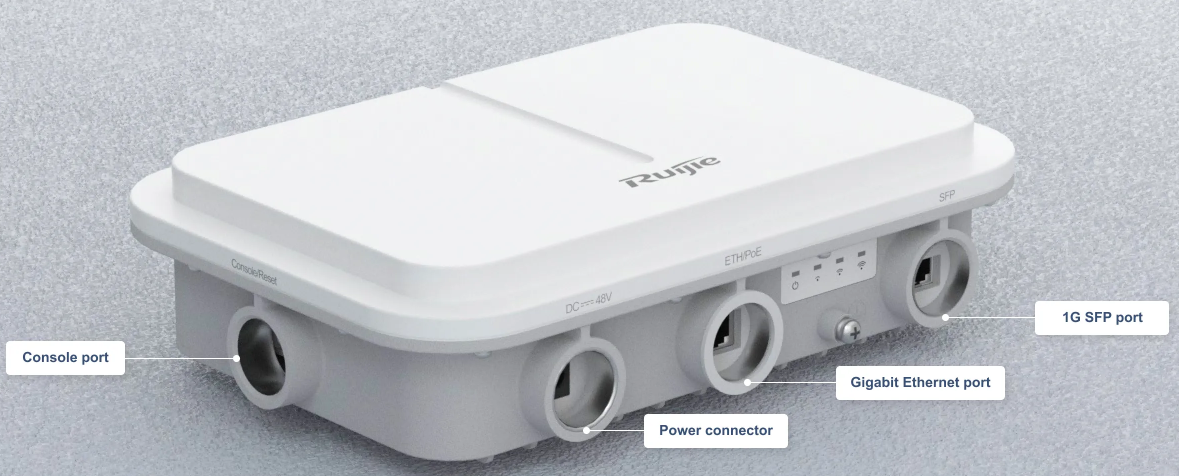

| Ports Specifications | RG-AP680-L |
| Fixed service port | 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at standard |
| 1 x 1GE SFP port | |
| Fixed management port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| 3 x single-color RSSI LEDs | |
| Button | 1 x Reset button |
| ● Press the button for shorter than 2 seconds. Then the device restarts. | |
| ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Power Supply and Consumption | RG-AP680-L |
| Input power supply | The AP supports the following two power supply modes: |
| ● 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently. | |
| ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). | |
| Note: | |
| ● If both DC power and PoE are available, DC power is preferred. | |
| Overall power consumption | Maximum power consumption: 12.95 W |
| ● DC powered: 12.95 W | |
| ● PoE powered (802.3af): 12.95 W | |
| ● PoE+ powered (802.3at): 12.95 W | |
| ● PoE++ powered (802.3bt): 12.95 W | |
| ● Idle mode: 6.0 W |
| Environment and Reliability | RG-AP680-L |
| Temperature | Operating temperature: –40°C to +65°C (–40°F to +149°F) |
| Storage temperature: –40°C to +85°C (–40°F to +185°F) | |
| Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). | |
| Humidity | Operating humidity: 0% RH to 100% RH (non-condensing) |
| Storage humidity: 0% RH to 100% RH (non-condensing) | |
| IP rating | IP68 |
| Mean Time Between Failure (MTBF) | > 250,000 hours |
| Regulatory Compliance | RG-AP680-L |
| Security regulations | IEC 62368-1 |
| EN 62368-1 | |
| EN 60950-22 | |
| EMC regulations | EN 55032 |
| EN 55035 | |
| EN IEC 61000-3-2 | |
| EN 61000-3-3 | |
| EN 301 489-1 | |
| EN 301 489-3 | |
| EN 301 489-17 | |
| Radio frequency regulations | EN 300328 |
| EN 301 893 | |
| EN 300 440 | |
| EN 62311 | |
| EN IEC 62311 | |
| EN 50665 | |
| FCC Part 15 |
| Applicable Software Version | RG-AP680-L |
| Applicable software version | RGOS11.9(6)W3B3 or later |
| WLAN | RG-AP680-L |
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 1024 |
| Note | |
| The number of associated clients varies according to the environment. | |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding |
| Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. | |
| Remote intelligent perception technology (RIPT) | |
| Intelligent client identification technology | |
| Intelligent load balancing based on the STA quantity or traffic | |
| STA limiting | SSID-based STA limiting |
| Radio-based STA limiting | |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Security | RG-AP680-L |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) |
| PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication | |
| SMS authentication (used with the RG-WS series wireless access controller) | |
| MAB authentication (used with the RG-WS series wireless access controller) | |
| WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE | |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Supported |
| NFPP | Supported |
| Routing and Switching | RG-AP680-L |
| IP service | Static IPv4 address and DHCP-assigned IPv4 address |
| NAT, FTP ALG, DNS ALG | |
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping |
| IPv6 DHCP client | |
| IP routing | IPv4/IPv6 static routing |
| VPN | PPPoE client |
| IPsec VPN |
| Management | RG-AP680-L |
| Network management | Fault inspection and alarm |
| Information statistics and logging | |
| SNMPv1/v2c/v3 | |
| NTP Server and NTP Client | |
| Network management platform | Ruijie Cloud |
| Web-based management (Eweb) | |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. |
| When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. | |
| When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
Looking for more products? Click here.
Related Products
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Call for Price
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Functions and features:
- Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4 and 100G Lambda MSA
- Hot Pluggable QSFP-DD Form Factor
- High-speed Electrical Compliant to IEEE 802.3bs
- 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- MPO-12/dual-fiber LC interface
- CWDM EML /VCSEL/DFB
CC-42UB1000 - 42U DATA CABINET MESH DOOR 6 FEET (600mm X 1000mm X 2000mm)
Call for Price
42U DATA CABNET MESH DOOR 6 FEET
✅42U rack height (6 feet)
✅Dimensions: 600mm (W) x 1000mm (D) x 2000mm (H)
✅Mesh front door for improved airflow
✅Lockable and removable panels for security and access
✅Heavy-duty steel construction
✅Compatible with all standard 19-inch rack equipment
Ideal for servers, switches, routers, and patch panels
Optimize your data center’s performance with a reliable and spacious 42U server cabinet with mesh doors – engineered for modern IT infrastructure. 42U Server Rack Cabinet with Mesh Door – 600mm(W) x 1000mm(D) x 2000mm(H). Ideal for network and server equipment. 6FT tall, heavy-duty steel frame, superior airflow, and secure cable management.
CC-42UB1200 - 42U DATA CABINET GLASS DOOR 6 FEET (600mm X 1200mm X 2000mm)
Call for Price
42U DATA CABNET GLASS DOOR
600mm X 1200mm X 2000mm
(Width X Depth X Height) 6 FEET
✅42U glass door data cabinet (6 feet tall)
✅Dimensions: 600mm (W) x 1200mm (D) x 2000mm (H)
✅Deep server rack for network, telecom, and IT equipment
✅Secure and ventilated with cable management
✅Ideal for data centers, server rooms, and enterprise networks
The CC-42UB800 42U Data Cabinet with front glass door provides secure and organized housing for your IT equipment. With dimensions of 600mm (W) x 1200mm (D) x 2000mm (H), this 6-foot server rack is ideal for data centers, server rooms, and telecom applications, offering optimal ventilation, cable management, and easy access.
CC-42UB800 42U DATA CABINET GLASS DOOR 6 FEET
Call for Price
Key Features:
✅42U data cabinet with glass door
✅800mm x 1000mm x 2000mm (W x D x H)
✅6-foot server rack enclosure
✅Ideal for data centers, IT rooms, telecom environments
✅Secure, ventilated, and cable-management ready
The CC-42UB800 42U Data Cabinet with a front glass door offers a robust and secure solution for server and network equipment. Measuring 800mm (W) x 1000mm (D) x 2000mm (H), this 6-foot rack cabinet provides optimal airflow, cable management, and easy access—ideal for data centers, IT rooms, and telecom environments.
CC12B - 12U WALL MOUNT DATA CABINET 600mm X 450mm X 600mm 2 FEET
Call for Price
Optimize your network infrastructure with this high-quality CC-12B – 12U Wall Mount Data Cabinet (600mm x 450mm x 600mm)—designed to securely house 19-inch rack-mounted equipment like patch panels, routers, and switches. Its compact wall-mounted design saves valuable floor space, making it ideal for offices, telecom rooms, or remote setups. Constructed from durable cold-rolled steel, it features a lockable front door, removable side panels, and excellent airflow for efficient cooling. Whether you’re building a new network or upgrading an existing system, this cabinet offers a professional, organized, and space-efficient solution for your IT needs.
CC 15U WALL MOUNTDATA CABINET 600mm X 600mm X 780mm 2.50 FEET
Call for Price
15U WALL MOUNTDATA CABINET 2.50 FEET
The 15U Wall Mount Data Cabinet (600mm x 600mm x 780mm) is a robust, space-saving rack enclosure designed to secure and organize servers, network switches, patch panels, and other IT equipment. Standing at 2.5 feet tall, this wall-mounted cabinet is perfect for small to mid-sized network setups in offices, retail stores, or home labs. Built with durable steel, enhanced airflow, and lockable access, it combines security, efficiency, and compact design.
Key Features:
- Rack Units: 15U of usable vertical rack space
- Dimensions: 600mm (W) x 600mm (D) x 780mm (H) – 2.5 feet tall
- Mounting Type: Wall-mount for space-saving installations
- Material: Cold-rolled steel for superior strength and durability
- Front Door: Lockable (glass or perforated metal options) for equipment security
- Cooling: Side ventilation and top/bottom fan mounts for active airflow
- Cable Management: Pre-cut cable entry points for organized wiring
- Side Panels: Removable for easy installation and maintenance access
- Finish: Black powder coating for corrosion resistance and sleek aesthetics
- Compatibility: Supports standard 19-inch rack-mount devices
Ideal For:
- Small to mid-sized business networks
- Retail locations and POS system installations
- Home server labs and enthusiast setups
- Educational institutions, remote sites, and branch offices
- Telecom and surveillance system installations
CC-6UB WALL MOUNT DATA CABINET 1 FEET 600mm X 450mm X 330mm
Call for Price
The CC-6UB Wall Mount Data Cabinet (600mm x 450mm x 330mm) is a space-saving, high-security storage solution for networking equipment. With a compact height of just 1 foot, this wall-mounted cabinet offers a perfect balance of protection, airflow, and easy access for small servers, routers, switches, and more. Ideal for tight spaces, it ensures maximum organization and effective cooling for your essential IT devices.
Key Features:
- Compact Dimensions: 600mm (W) x 450mm (D) x 330mm (H) — ideal for small-scale network setups and tight spaces.
- Height: Just 1 foot, allowing for easy wall mounting in areas with limited space.
- Durable Construction: Made from high-quality steel for long-lasting protection.
- Lockable Door: Provides additional security to prevent unauthorized access to your equipment.
- Ventilation for Cooling: Designed with ventilation holes to ensure optimal airflow and prevent overheating.
- Efficient Cable Management: Features built-in cable management options to keep your setup tidy and organized.
- Applications: Ideal for home offices, small server rooms, networking setups, and retail locations.
- Wall-Mountable: Frees up valuable floor space and provides easy access to equipment.
The CC-6UB Wall Mount Data Cabinet is the go-to solution for professionals and businesses looking to store and secure their networking equipment without sacrificing space. Whether you need it for home use or a small business, this compact cabinet offers a perfect blend of functionality, security, and performance.
CCORP DAC Cable 10G SFP+ to SFP+ 2M/3M Passive Direct Attach Cable Copper
Call for Price
CCORP DAC Cable 10G SFP+ to SFP+ 2M/3M Passive Direct Attach Cable Copper
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Call for Price
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Functions and features:
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB/EML laser
- Single channel supports up to 25.78 Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- MPO-12/dual-fiber LC interface
Reviews
There are no reviews yet.
