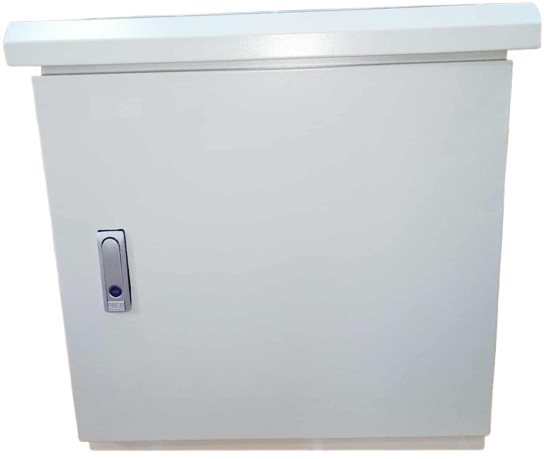

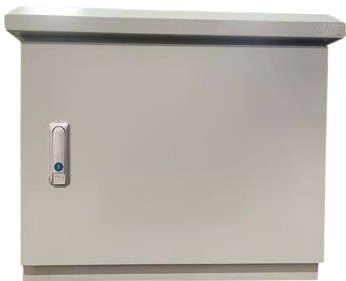

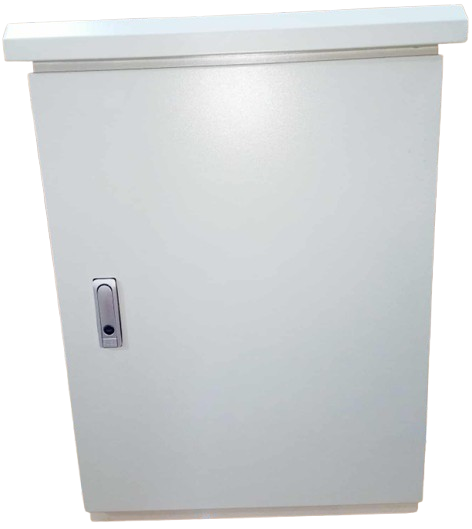

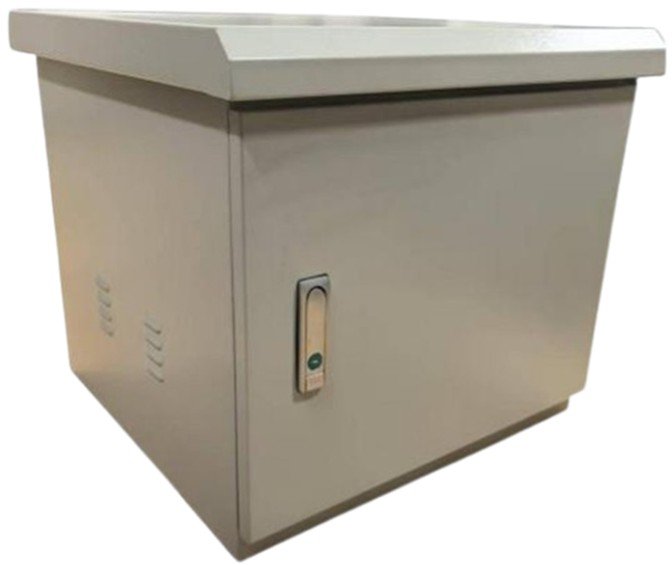

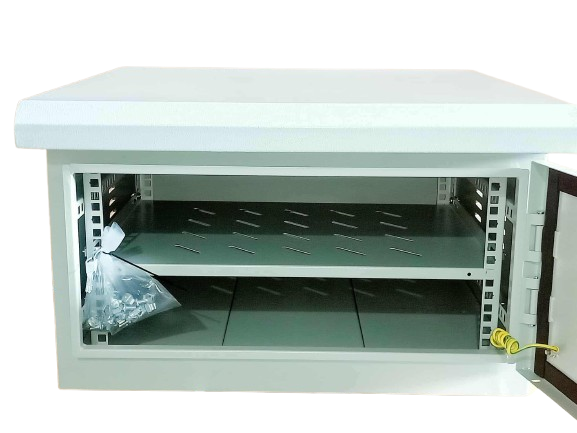

OUTDOOR DATA CABINET RAINPROOF 6U, 9U, 12U, 15U

OUTDOOR DATA CABINET RAINPROOF 6U, 9U, 12U, 15U

PRODUCT PARAMETER

Name: Outdoor Rainproof Data Cabinet

Protection Level: IP56

• Color: Outdoor Environmental Protection Powder 7035 White
• Type: Outdoor cabinet server rack
• Installation Spacing – Standard 19 inches
• Thickness: Installation
• Column: 1.2mm
• Box Body: 1.0mm
• Material and Process: SPCC high-quality cold-rolled steel plate. Square holes are formed by a single bending process. It undergoes acid washing, phosphating, degreasing, and electrostatic powder coating treatment.
• Usage: Mainly used for standard 19-inch small-sized equipment such as switches, patch panels, KVMs, UPS power supplies, industrial control computers, etc.

The components of a data center cabinet typically include:

• Frame. The main structural component of the cabinet, providing support and rigidity. It usually consists of vertical uprights (posts) and horizontal rails.

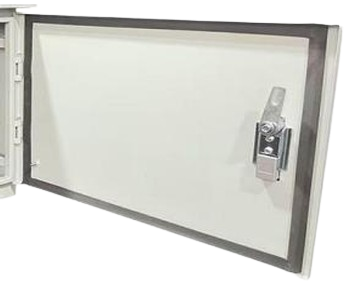

• Doors. Front and rear doors that provide access to the interior of the cabinet. These doors may be solid, perforated, or have transparent panels for airflow and visibility.

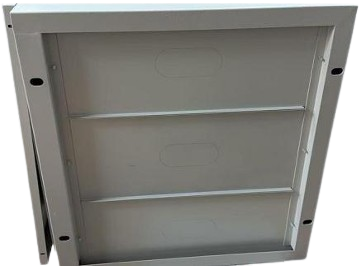

• Side panels. Panels on the sides of the cabinet that enclose the interior space. Side panels may be removable for easy access during installation and maintenance.

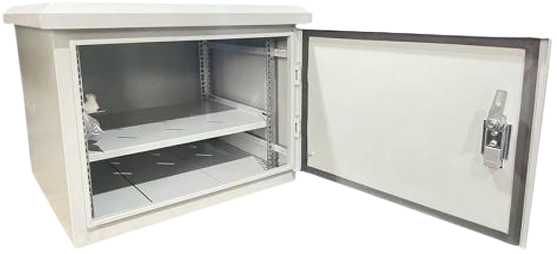

• Mounting rails. Horizontal bars or rails inside the cabinet where IT equipment is mounted. These rails typically have holes or slots for securing equipment with screws or mounting brackets.
• Casters or leveling feet. Wheels or adjustable feet at the base of the cabinet to facilitate movement and ensure stability when installed.
• Locks and security features. Mechanisms for securing the cabinet to prevent unauthorized access to IT equipment. This may include key locks, combination locks, or electronic access controls.

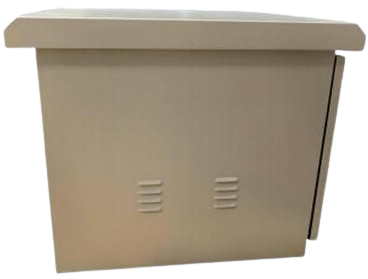

• Ventilation and cooling features. Perforations or vents in the doors, side panels, and top or bottom of the cabinet to allow airflow and dissipate heat generated by the enclosed equipment. Some cabinets may also include built-in fans or provisions for installing cooling systems.
• Cable management. Channels, brackets, or hooks inside the cabinet for organizing and routing cables neatly. Cable Management features help prevent cable clutter, optimize airflow, and facilitate maintenance.
• Grounding and bonding. Components for grounding and bonding IT equipment to prevent electrical hazards and ensure proper functioning of sensitive electronics. This may include grounding straps, bonding bars, and grounding lugs.
• Accessory mounting options. Provision for attaching additional accessories such as shelves, cable organizers, rack PDUs, and environmental sensors.
• Labels and identification. Spaces or holders for labeling or identifying the cabinet and its contents, facilitating inventory management and troubleshooting.
• Adjustable mounting depth. Some cabinets offer adjustable mounting depths to accommodate various sizes of IT equipment and allow for future expansion or reconfiguration.

 6U 600 X 600 x 350 mm OUTDOOR RAINPROOF DATA CABINET

 9U 600 X 600 x 500 mm OUTDOOR RAINPROOF DATA CABINET

9U 600 X 450 x 500 mm OUTDOOR RAINPROOF DATA CABINET

12U 600 X 600 x 650 mm OUTDOOR RAINPROOF DATA CABINET

15U 600 X 600 x 800 mm OUTDOOR RAINPROOF DATA CABINET
