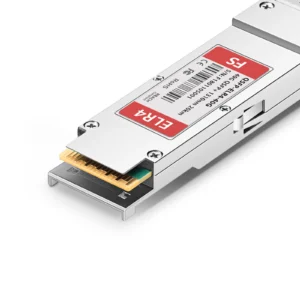

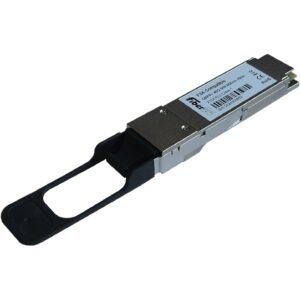

C-CORP 40G QSFP+ OPTICAL TRANCEIVERS
Order Now
Call for Price
C-CORP 40G QSFP+ OPTICAL TRANCEIVERS
C-CORP 40G QSFP+ OPTICAL TRANCEIVERS
Functions and features Optical:
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB laser
- Single channel supports up to 11.2Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- Single-fiber LC/dual-fiber LC interface Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 –SR Complies with RoHS standard
Package | Part No. | Data Rate | Wavelength | Distance | Source | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃) |
QSFP+ LX4 | C-CORP-QP-S31L-2D | 40G | 1270/1290/1310/1330 | 2km | CWDM DFB/PIN | -7~3 | ≤-11.5 | Duplex LC | 0-70 |
QSFP+ LR4 | C-CORP-QP-S31L-10D | 40G | 1270/1290/1310/1330 | 10km | CWDM DFB/PIN | -6~-1 | ≤-14 | Duplex LC | 0-70 |
QSFP+ LR4 | C-CORP-QP-S31L-20D | 40G | 1270/1290/1310/1330 | 20km | CWDM DFB/PIN | -6~2.3 | ≤-14.5 | Duplex LC | 0-70 |
QSFP+ PLR4 | C-CORP-QP-S31M-10D | 40G | 1310nm | 10km | LAN DML/PIN | -6~-1 | ≤-14 | MPO | 0-70 |
QSFP+ ER4 | C-CORP-QP-S31L-40D | 40G | 1270/1290/1310/1330 | 40km | CWDM DFB/APD | -2~5 | ≤-21 | Duplex LC | 0-70 |
QSFP+ ZRI4 | C-CORP-QP-S31L-60D | 40G | 1270/1290/1310/1330 | 60km | CWDM DFB/APD | 2~5 | ≤-26 | Duplex LC | 0-70 |
QSFP+ ZR4 | C-CORP-QP-S31L-80D | 40G | 1310nm | 80km | LAN WDM DFB/APD | 3~6 | ≤-28 | Duplex LC | 0-70 |
QSFP+ SR4 | C-CORP-QP-M85M-01D | 40G | 850nm | 100m | VCSEL/PIN | -7.5~1 | ≤-11 | MPO | 0-70 |
QSFP+ CSR4 | C-CORP-QP-M85M-03D | 40G | 850nm | 300m | VCSEL/PIN | -6.5~2 | ≤-11 | MPO | 0-70 |
QSFP+ SR-BD | C-CORP-QP-M85L-01D | 40G | 850nm | 100m | VCSEL/PIN | -4~5 | ≤-7 | Duplex LC | 0-70 |
