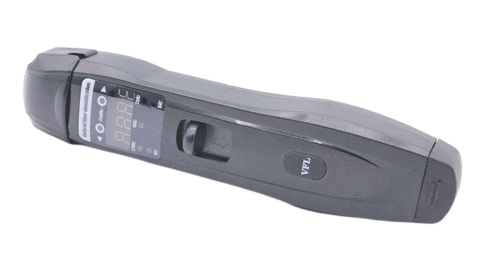

NK412 Optical Fiber Identifier

NK412 Optical Fiber Identifier

Product Overview

The Optical Fiber Identifier instrument uses macro bending technology to carry out nondestructive test on the line, Signal direction and approximate power can be detected at any position of SM/MM fibers. Avoid line interruption caused by misoperation.

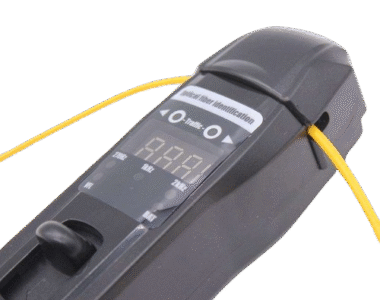

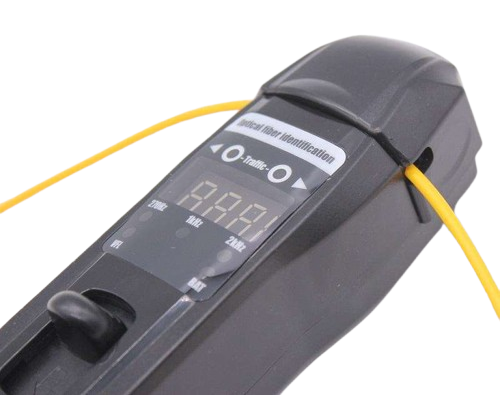

Macrobending measurement: The weak optical signal is exposed when the optical fiber is bent, The direction and intensity of the optical signal are detected by judging the direction and intensity of the leakage. No damage to optical fiber and no interruption of communication, It can directly detect 0.25mm bare optical fiber, 0.9mm tight sleeve optical fiber and 3mm jumper.

VFL: The recognizer can be equipped with 10mW VFL to find the fault point of 10km (laboratory value) line.

OPM: It can be equipped with 10 standard wave power meters, used to test the optical power value of the measured optical fiber.Low battery monitoring: When the battery is low, yellow or red prompt will be sent to remind the user to replace the battery to avoid interruption of use.

Product features

• No need to cut off the optical fiber,can effectively identify the direction and frequency
• Universal fixture, bare fiber, pigtail, etc. no need to replace the adapter
• Identify three common signal, 2kHz/1kHz/ 270Hz, beep prompt during recognition

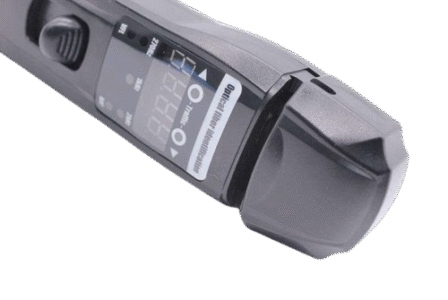

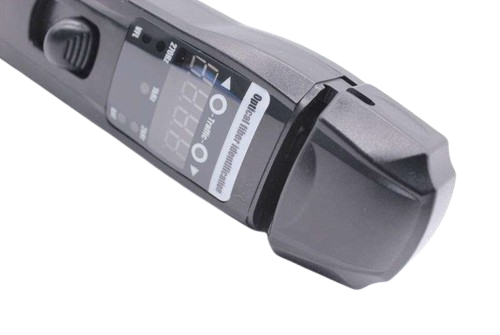

• LED indicator is simple and clear
• With the “one touch” operation mode, the operation is simple and convenient
• Support OPM function, Multiple wavelengths are available
• Using No. 9 dry battery, Low power consumption, Small volume, Easy to carry

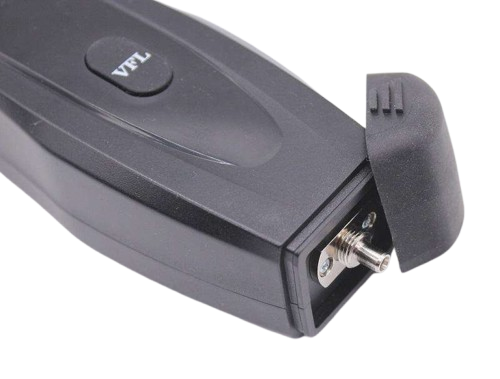

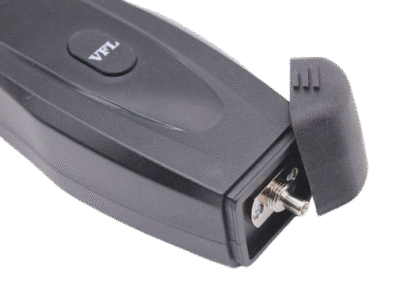

• High transmittance VFL, Easily penetrate long-distance optical fiber, find the fault point

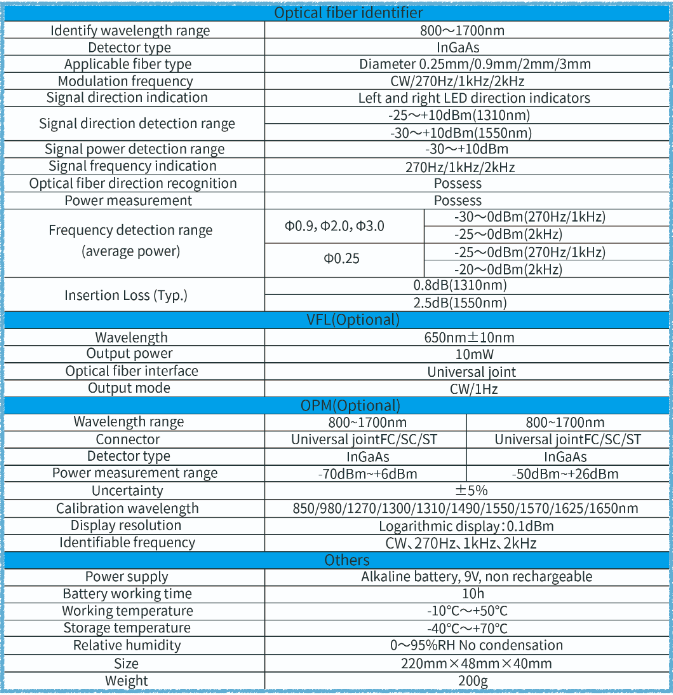

NK412 Technical Specifications
