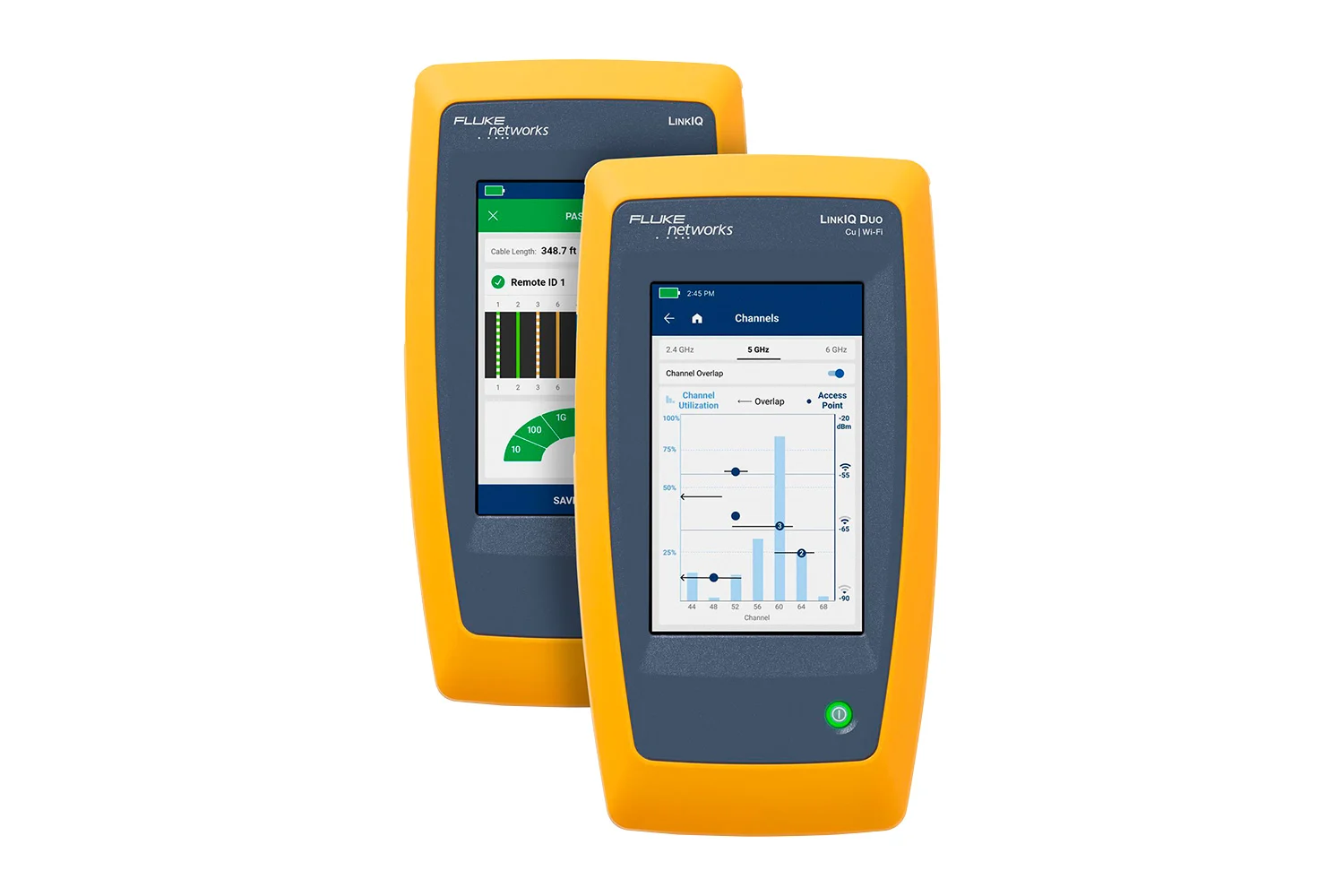

LinkIQ™ Cable + Wi-Fi + Network Tester

Order Now

Call for Price

LinkIQ™ Cable + Wi-Fi + Network Tester

Product Highlights

Cable testing you trust. Network testing you need. Wi-Fi 6E ready.

Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)
Test and troubleshoot EtherNet/IP, PROFINET, EtherCAT cabling with M12X, M12D, and M8D adapters (IE versions)
Network features include IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates)
Ethernet Alliance-certified PoE Verification detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points (Duo model – 6 GHz support only in countries where allowed)
Manage results and print reports from LinkWare™ PC

Overview

The LinkIQ™ Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test. It also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration – eliminating the need for another device.

The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved), including networks, channels, and access points plus warning of common configuration issues. The IE models allow identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare™ PC.

Feature	LinkIQ Duo	LinkIQ	LinkIQ Duo IE	LinkIQ-IE
Wiremap	X	X	X	X
Length	X	X	X	X
Performance	to 10 Gb/s	to 10 Gb/s	to 10 Gb/s	to 10 Gb/s
Switch Info	Speed, Name, Address, VLAN, Port	Speed, Name, Address, VLAN, Port	Speed, Name, Address, VLAN, Port	Speed, Name, Address, VLAN, Port
Network Connectivity	X	X	X	X
Ethernet Alliance Certified PoE	Measure, Test all 802.3 af/at/bt	Measure, Test all 802.3 af/at/bt	Measure, Test all 802.3 af/at/bt	Measure, Test all 802.3 af/at/bt
Supported Wi-Fi Bands	2.4 GHz, 5 GHz, 6 GHz		2.4 GHz, 5 GHz, 6 GHz
Wi-Fi Tests	Networks, Channels, Access Points		Networks, Channels, Access Points
Industrial Connectors			M8D, M12D, M12X	M8D, M12D, M12X
Reporting App	LinkWare™ PC	LinkWare PC	LinkWare PC	LinkWare PC

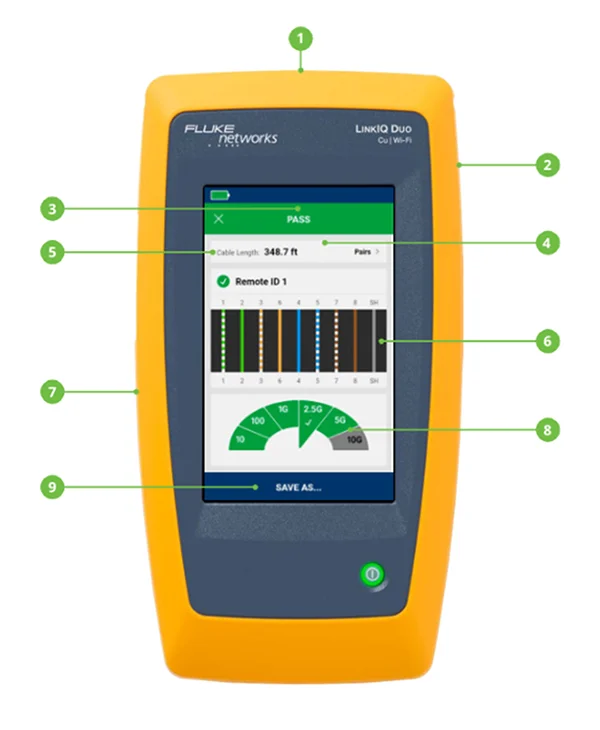

LinkIQ™ Cable + Wi-Fi + Network Tester Features

LinkIQ™ Cable + Wi-Fi + Network Tester

RJ45 Port for connection to cable or switch port
Internal antenna for Wi-Fi radio supporting 2.4 GHz, 5 GHz, and 6 GHz bands (LinkIQ Duo model only)
PASS/FAIL frequency-based measurement results
Touch Screen Color Display
Length measurement shows distance to termination, open, or short
Wire map shows type and location of fault (miswires, split pairs, shorts, breaks)
USB-C port for data export, software updates and charging
Cable performance to 10 Gb/s shown in speedometer format
Save up to 1000 test results on the unit and export to LinkWare™ PC

Additional Features

Language support for English, German, French, Japanese, Thai, Spanish, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish
Generates analog or digital tones compatible with the IntelliTone™ or Pro3000™ probe to assist in locating cables in a wall or telecommunications room
Blink Port light on switch to help identify the connected switch port
Compatible with MicroScanner™ PoE Remote Identifiers for Ethernet outlet identification
Touch Sensitive gesture-based display
Rechargeable Li-Ion battery
Easy Feature and Network Testing Upgrades via USB-C using LinkWare™ PC
Charging via standard USB-C port
