HG3221D VSOL Dual-band Gigabit WiFi 5 Router 4GE+1POTS+WiFi5+USB HGU

Order Now

Call for Price

Key Features:

ZTE XPON Chipset + MTK Wi-Fi Chipset High Performance Solution
WiFi 5 Dual Band 1200Mbps
IPv4/IPv6 Dual Stack
USB3.0 InterfaceFor Shared Storage

HG3221D VSOL Dual-band Gigabit WiFi 5 Router 4GE+1POTS+WiFi5+USB HGU

Model: HG3221D
Spec: 4*GE+1POTS(2POTS option)+WiFi5+USB 3.0
Weight: 320g

Introduction:

HG3221D-4G1S2NAC/4G2S2NAC (4GE+1POTS/2POTS +WiFi5+USB3.0 XPON HGU ONT ) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions (ZTE CPU+MTK WiFi chipset), supports XPON dual-mode technology(EPONandGPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONTon the VSOL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

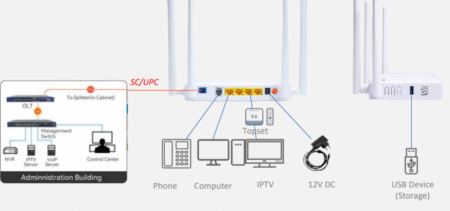

Application Chart:

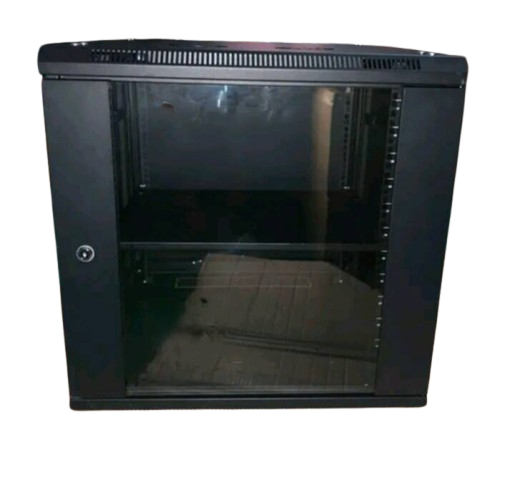

15U WALL MOUNT DATA CABINET July 1, 2025 Philippines

○ Hardware Parameter
Dimension	178mm×120mm×30mm(L×W×H)
Net weight	0.31Kg
Operating condition	Operating temp: -10 ~ +55°C
Operating condition	Operating humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C
Storing condition	Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V,1.0A, external AC-DC
Power adapter	power adaptor
Power supply	≤12W
Interface	2GE+WiFi5
Indicators	PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G

○ Interface parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+)
	SC single mode, SC/UPC connector
	TX optical power: 0～+4dBm
	RX sensitivity: -27dBm
	Overload optical power: -3dBm(EPON) or -8dBm (GPON)
	Transmission distance: 20KM
	Wavelength: TX 1310nm, RX1490nm
User interface	2×GE, Auto-negotiation,RJ45 ports
WLAN interface	Compliant with IEEE802.11b/g/n/ac
	2.4GHz Operating frequency: 2.4000-2.4835GHz
	5.0GHz Operating frequency: 5.150-5.825GHz
	Support MIMO, rate up to 1.167Gbps
	WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID
	TX power: 11n–22dBm/11ac–24dBm
○ Function Data
Management	OAM/OMCI, Telnet, WEB, TR069
Management	Support full management of ONT functions by VSOL OLT
Internet connection	Support Bridge, Route and Bridge/Route mixed mode
Multicast	Support IGMP v1/v2/v3
	Support IGMP Proxy and MLD Proxy
	Support IGMP Snooping and MLD Snooping
VLAN	Support VLAN tag mode
	Support VLAN trunk mode
	Support VLAN translation
Data Service Functions	Full speed non-blocking switching
	2K MAC address table
	8 full range VLAN ID
	Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
	Support auto polarity detection of Ethernet ports (AUTO MDIX)
	Integrated IEEE802.1p QoS with four level priority queues
	Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless	Support Wireless AP mode
	Support 802.11 b/g/n/ac
	Support Multiple SSID
	Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM
	Support EasyMesh protocol
QoS	Support 4 queues
	Support SP and WRR
	Support 802.1P and DSCP
L3	Support IPv4, IPv6 and IPv4/IPv6 dual stack
	Support DHCP/PPPOE/Static
	Support Static route
	Support DHCP Server
	Support NAT/DMZ/DDNS
	Support Virtual Server
Security	Support Firewall
	Support Mac filter Based on MAC or URL
	Support ACL
