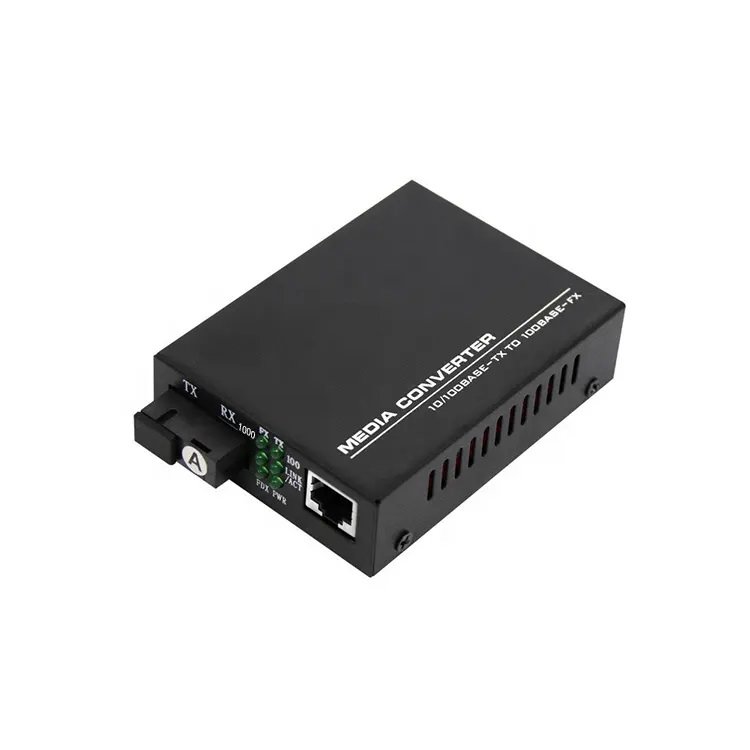

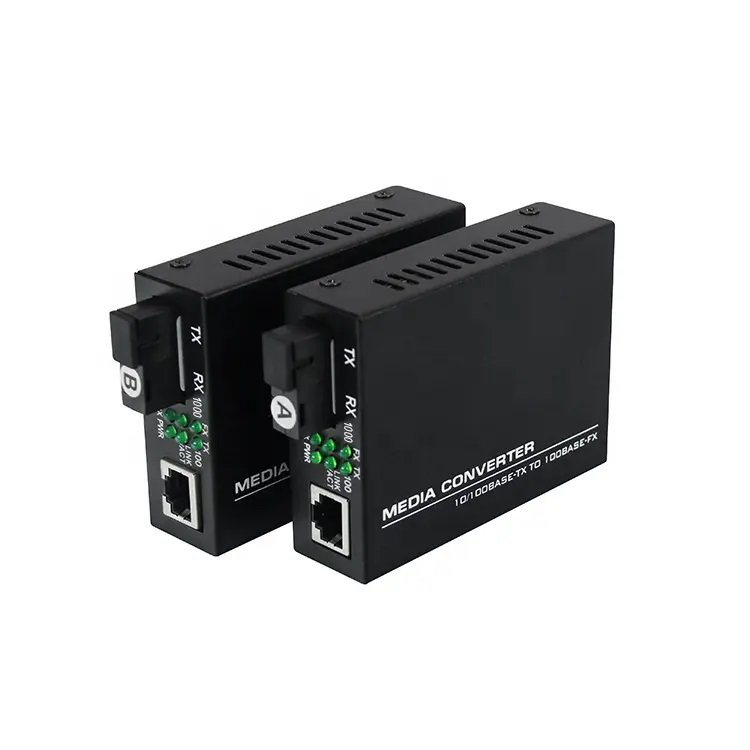

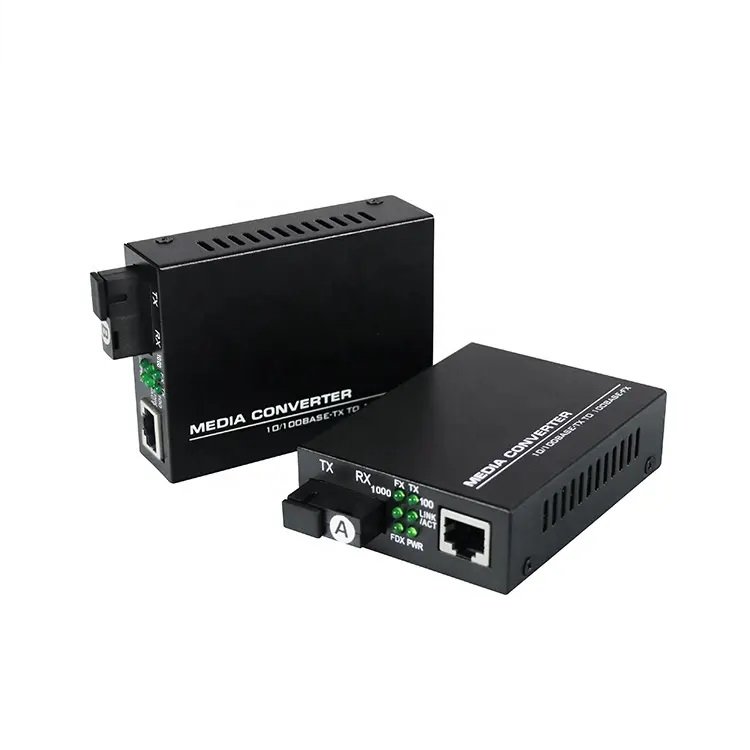

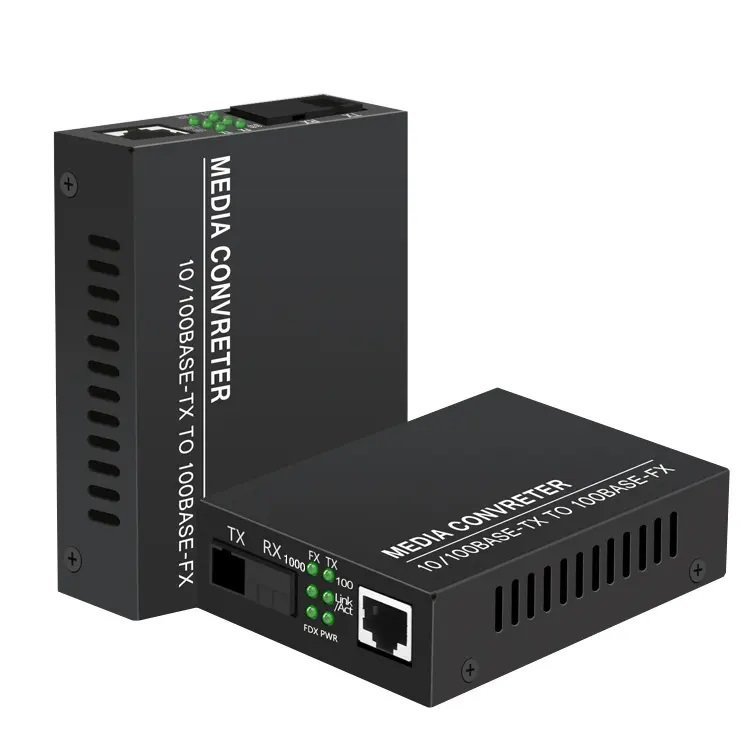

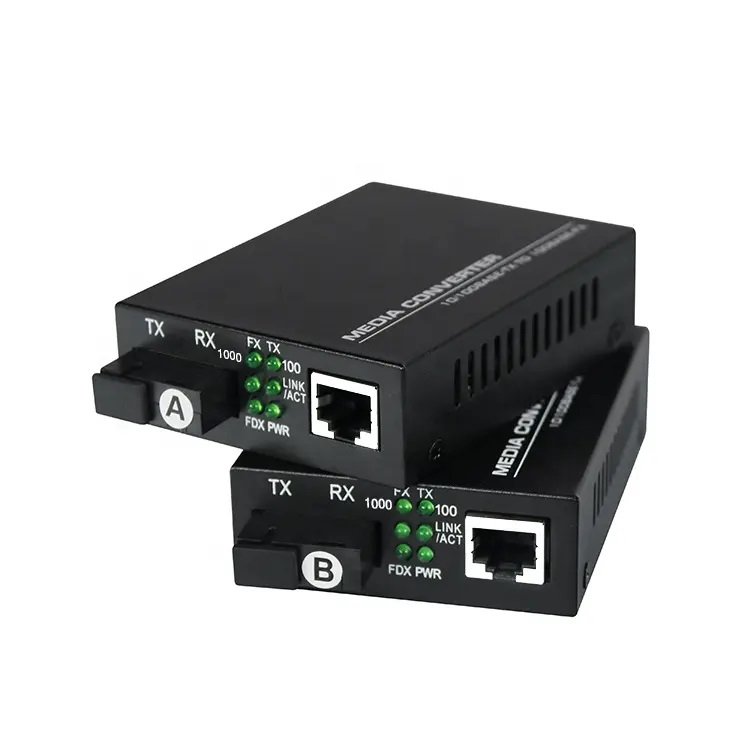

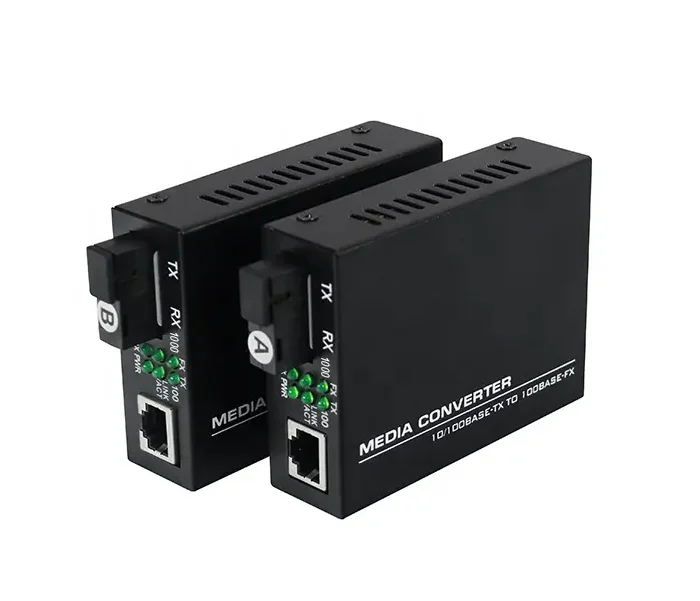

Fiber Optic Media Converter
10/100/1000Mbps
10/100/1000M SFP slot media converter is designed to meet the various needs for extending network segments and is able to extend a copper based network via fiber cable to a maximum distance up to 120km. (Depending on which SFP is used).
Fiber Optic Media Converter
10/100/1000Mbps
10/100/1000M SFP slot media converter is designed to meet various needs for extending network segments. It allows the extension of a copper-based network via fiber cable to a maximum distance of up to 120km, depending on the specific SFP used. This capability is crucial for businesses looking to enhance their network infrastructure without significant overhaul costs.
The efficiency of fiber optics over traditional copper cables cannot be overstated. Fiber optics provide greater bandwidth and faster speeds, which are essential for today’s data-heavy applications. For example, companies utilizing cloud services or hosting high-definition video conferencing will experience significantly reduced latency and improved performance by switching to fiber optics.
Features
Why Choose Fiber Optic Media Converters?
- Conversion between auto-adaptation 10/100/1000Base–T to 100/1000Base–X , full duplex 1000M working pattern.
- In a world increasingly reliant on high-speed internet, fiber optic media converters offer a practical solution to upgrade existing infrastructures without complete replacement.
- With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
- With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure reliable data transmission and long working life.
- Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism. Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
- Their versatility makes them suitable for various applications, from home use to large enterprise networks. For instance, a media converter might be used in an office to connect a high-speed fiber network to older Ethernet devices, ensuring compatibility and high performance.
- Supporting 9kbyte super data packet transmission By store and forwarder mode.

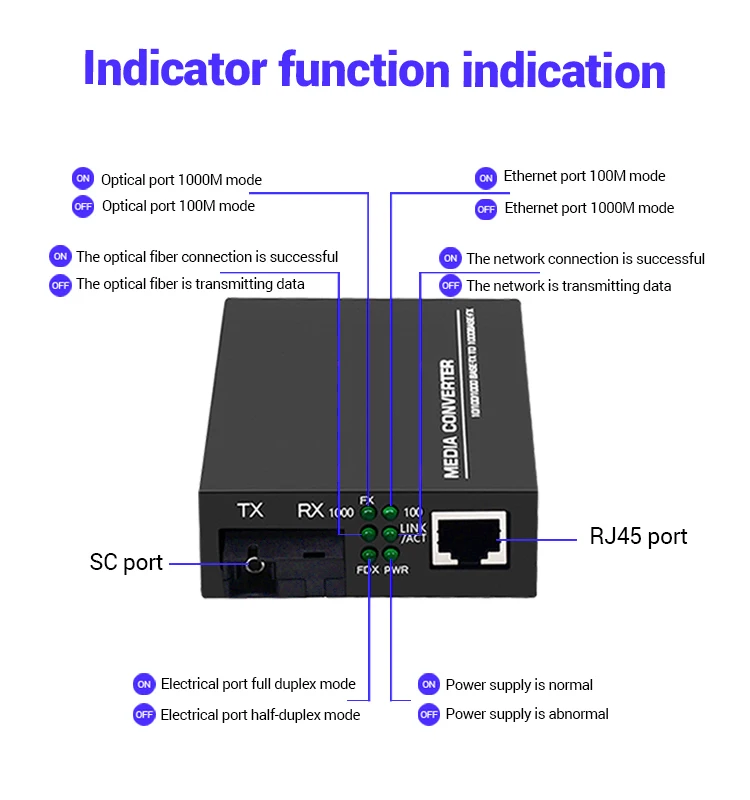

- Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate.
- With more than 50,000 hours MTBF, complying with telecom operating standard.
Product Parameters
Product Name | Media Converter |
| Wavelength | 1310nm/1490nm/1550nm |
| Connector | Single SC/UPC |
| Transmission Rate | self-adaptive 10/100/1000M |
| UTP port | 1 RJ45 port |
| The power supply | DC 5V |
| size(Length × width × height) (mm) | 94 * 70 * 26 |
| Fiber Type | Single-mode Fiber |
| Number of optical fiber ports | 1 |
| Fiber optic port | Single mode SC, 1.5g light module |
| Fiber rate | 10 / 100/1000Mbps |
| Optical wavelength | Single mode 1310/1550 nm |
| Optical fiber mode | Single mode |
| Distance | 20~120km |
| LED light | TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX |
| Working temperature | -20 ~ 75° C |
| Relative humidity | 5% ~ 90% |
Applications of Media Converters
With the rise of smart cities and IoT devices, the need for robust and reliable network connections has never been greater. Media converters play a pivotal role in facilitating these connections, ensuring seamless communication across various platforms and technologies.
- Connecting remote offices to a central server over long distances.
- Integrating legacy Ethernet devices into modern fiber networks.
- Expanding network capabilities in data centers.
- Facilitating connections in industrial settings where copper cables may be inadequate.
