C-CORP EN4HD 4 CHANNEL HD ENCODER FOR IPTV SYSTEM
Order Now
The EN4HD 4-Channel HD Encoder
is a specialized device designed for IPTV systems, enabling the compression and streaming of multiple high-definition video channels over IP networks. While the specific model “EN4HD” isn’t widely recognized by major manufacturers, several comparable products offer similar functionalities.
... people are viewing this right now
Compare
C-CORP EN4HD 4 CHANNEL HD ENCODER FOR IPTV SYSTEM
The C-CORP EN4HD
is a small and compact streamer that takes 4 HD signals and encodes them into a H.264 compressed format for streaming. It comes with a user-friendly web-based interface, allowing users to configure various encoding parameters like resolution, bitrate and streaming settings.
FEATURES:
1. Video encoding in H.264 and audio encoding in MPEG and AAC
2. Output IP stream in 4SPTS over UDP or RTP
3. Bitrate controlling for adjusting the video
quality and bandwidth
4. Graphic user interface for easy configuration
5. Rack and wall mountable.
HD INPUT

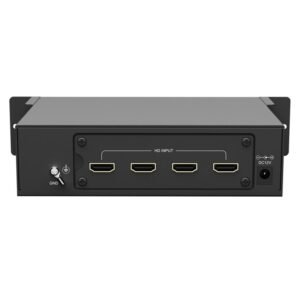

Input Connector: HD 1.4*4
VIDEO
Encoding: H.264
1920*1080_60P/_50P
Input Resolution: 1920*1080_60i/_5oP
1280*720_60P/_5oP
Bit Rate: 20 – 19000 Kbps
AUDIO
Encoding: MPEG 1 Lay II, AAC
IP OUTPUT
Output Connector: 1*1000Mbps port
Transport Protocol: UDP, RTP
Output Transport Stream : SPTS*4
Broadcasting Mode: Unicast and Multicast
GENERAL
Input Voltage: 90 – 264VAC, DC 12V 2A
Power Consumption: Less than W
Dimension: (WxHxD) 205*93*135mm
Net Weight: 0.9KG
Language: Chinese / English
CLOUD Service: Yes
