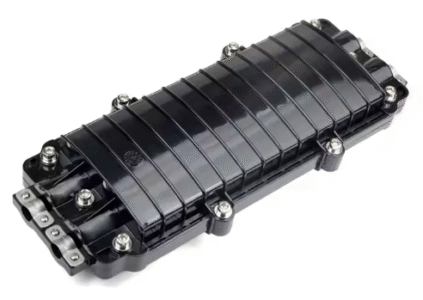

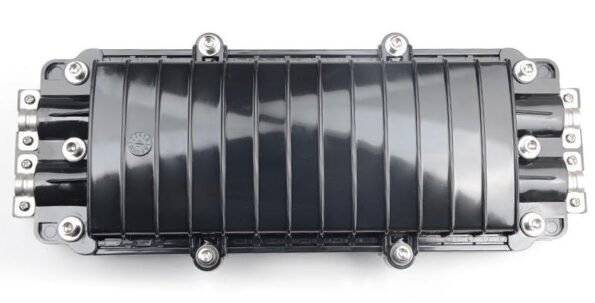

24/48 Core Horizontal D Type Fiber Optic Splice Enclosure 2 Inlet/Outlet Waterproof Joint Closure Box ABS PC Alloy Material
Fiber optic splice enclosure is the equipment used to offer room to fuse splice optical fiber and also to provide protections for the fused fiber joint point and the fiber cables. typical fiber optic splice enclosure includes vertical type and horizontal type, both are suit for different applications, such as aerial, duct fiber cables and direct buried.
Model Number: FCBD-48
Use: Fttx
Network: FTTH
Product name: Optic fiber splice joint box
Type: horizontal
Optical fiber tray: 2 pcs of 24 core splice tray
Port: 2 inlet 2 oulet
Color: Black
| Product name | Fiber joint splice enclosure | Material | PC (or PP) |
| Operating Temperature | -10℃~70℃ | Product Size | 420*180*100 mm |
| Working environment | Outdoor aerial & directly buried | Packing quantity | 10 pcs per carton |
| Features | wet-proof, water-proof | Weight | 2 kg |
Features
- Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.
- made of material with good capability of outdoor environment resistance and high durability
- Having reliable cable fixing and grounding facilities.
- Using self-adhesive isolative tape and glue belt to seal.
- To use rotating method to connect fiber organizer cassette result in easy installation.
- Mechanical design suitable for installing, fiber splicing storage and cable connection
- Compact and tight.
24/48 Core Horizontal D Type Fiber Optic Splice Enclosure 2 Inlet/Outlet Waterproof Joint Closure Box ABS PC Alloy Material
