C-CORP CCTIP04 TUNER to IP Gateway with DVB-S/-S2 Input

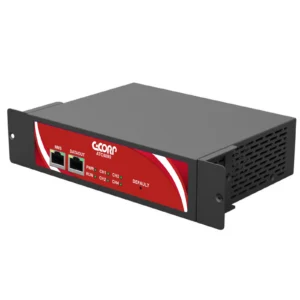

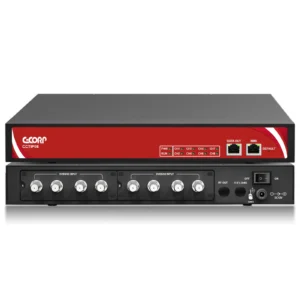

The C-CORP CCTIP04

is a small-size streamer, offering 4 tuner ports to receive DVB-S or DVB-S2 signal. It decodes the received signals into IP format over UDP or RTP protocol and stream the content over IP network. The streamer comes with a friendly management interact that allows operators to control and monitor the process. To meet project requirement, it also can be mounted in the mounting rack and placed right in the cabin.

FEATURES:

1. Equipped with 4 DVB-S/-S2 independent transponders
2. Output IP streams in 4 MPTS or 128 SPTS
3. Supports CA PID filtering, remapping and PSI/SI editing
4. Select desired services to stream out
5. Graphic user interface for easy configuration
6. Rack and wall mountable.

TUNER INPUT

Input Connector:                                      4 * RF inputs @75Ω
Input Level:                                               40 ~ 90 dBμV
Tuner Number:                                         4 Transponders
Frequency Range:                                     950 ~ 2150 MHz
DC Remote Power at RF Input:             13V/ 18V/ 22kHz/DiSEqC 2.0 A-B-C-D

IP OUTPUT

Output Connector:                                    1 * 1000 Mbps port
Transport Protocol:                                  UDP, RTP
Output Transport Stream:                      MPTS * 4 or SPTS*128
Broadcasting Mode:                                 Unicast and Multicast

MULTIPLEXING

Table Supported:                                       PSI/SI
PID Processing:                                         Pass-through, Remapping, Filtering

GENERAL

Input Voltage:                                            90 – 264VAC, DC 12V 2A
Test Point:                                                  -20dB relative to input port
Power consumption:                                Less than W
Dimension:                                                (WxHxD) 205*93*135mm
Net Weight:                                                0.9KG
Language:                                                   Chinese / English
CLOUD Service:                                         Yes
