Mikrotik CCR2004-16G-2S+
Order Now
Call for Price
CCR2004-16G-2S+
This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.
CCR2004-16G-2S+
This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.
Specifications | |
Details | |
Product code | CCR2004-16G-2S+ |
Architecture | ARM 64bit |
CPU | AL32400 |
CPU core count | 4 |
CPU nominal frequency | 1700 MHz |
Switch chip model | 88E6191X |
Dimensions | 443 x 210 x 44 mm |
RouterOS license | 6 |
Operating System | RouterOS v7 |
Size of RAM | 4 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
IPsec hardware acceleration | Yes |
Suggested price | $465.00 |
Powering | |
Details | |
Number of AC inputs | 2 |
AC input range | 100-240 |
Number of PSU slots | 2 |
Frequency (Hz) | 50-60 |
Max power consumption | 48 W |
Max power consumption without attachments | 35 W |
Cooling type | 2 fans |
Ethernet | |
Details | |
10/100/1000 Ethernet ports | 16 |
Fiber | |
Details | |
SFP+ ports | 2 |
Peripherals | |
Details | |
Serial console port | RJ45 |
Other | |
Details | |
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Details | |
Certification | CE, EAC, ROHS |
IP | IP20 |
Explore more products when you click here.
You may also like and follow our Facebook Page: Clusterasia Corp. for more updates.
Based on 0 reviews
0% | ||
0% | ||
0% | ||
0% | ||
0% |
Related Products
42U DATA CABNET GLASS DOOR
600mm X 1200mm X 2000mm
(Width X Depth X Height) 6 FEET
✅42U glass door data cabinet (6 feet tall)
✅Dimensions: 600mm (W) x 1200mm (D) x 2000mm (H)
✅Deep server rack for network, telecom, and IT equipment
✅Secure and ventilated with cable management
✅Ideal for data centers, server rooms, and enterprise networks
The CC-42UB800 42U Data Cabinet with front glass door provides secure and organized housing for your IT equipment. With dimensions of 600mm (W) x 1200mm (D) x 2000mm (H), this 6-foot server rack is ideal for data centers, server rooms, and telecom applications, offering optimal ventilation, cable management, and easy access.
CC 6UB DATA CABINET WALL MOUNT 1 FEET 600mm X 450mm X 330mm
CC 15U WALL MOUNT DATA CABINET
CCR2116-12G-4S+
Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.
SFP 1.25G 20km 1310/1550nm SFP Module BIDI LC DDM
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Functions and features:
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB/EML laser
- Single channel supports up to 25.78 Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- MPO-12/dual-fiber LC interface
Key Features:
✅42U data cabinet with glass door
✅800mm x 1000mm x 2000mm (W x D x H)
✅6-foot server rack enclosure
✅Ideal for data centers, IT rooms, telecom environments
✅Secure, ventilated, and cable-management ready
The CC-42UB800 42U Data Cabinet with a front glass door offers a robust and secure solution for server and network equipment. Measuring 800mm (W) x 1000mm (D) x 2000mm (H), this 6-foot rack cabinet provides optimal airflow, cable management, and easy access—ideal for data centers, IT rooms, and telecom environments.
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Functions and features:
- Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4 and 100G Lambda MSA
- Hot Pluggable QSFP-DD Form Factor
- High-speed Electrical Compliant to IEEE 802.3bs
- 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- MPO-12/dual-fiber LC interface
- CWDM EML /VCSEL/DFB
42U GLASS DOOR DATA CABINET 6 FEET 600mm X 800mm X 2000mm (Width X Depth X Height)

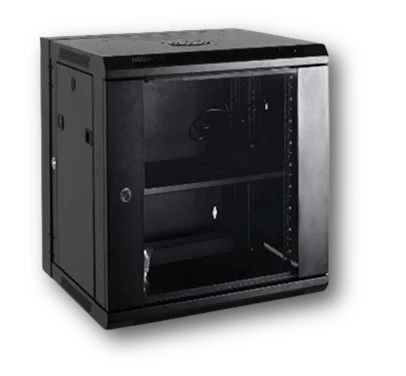

CC-12UB600 – 12U WALL MOUNT DATA CABINET | PROFESSIONAL DURABLE 2 FEET 600mm X 600mm X 600mm
