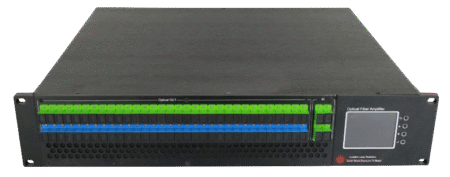

C-CORP CC-E16-64U 1550NM High Power Erbium Doped Fiber Amplifier (EDFA)

Order Now

Call for Price

C-CORP CC-E16-64U 1550NM High Power Erbium Doped Fiber Amplifier (EDFA)

C-CORP CC-E16-64U 1550NM High Power Erbium Doped Fiber Amplifier (EDFA) with combiner with gain spectrum band within1540~1563nm, which is mainly designed for the application of CATV or 1~8 continuous branding channel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities. It can realize Single wave transmission, CWDM three waves in single fiber, flat gain. DWDM; it is important fiber transmission equipment of building large and medium – sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.

C-CORP CC-E16-64U 1550NM High Power Erbium Doped Fiber Amplifier (EDFA)

C-CORP CC-E16-64U

It can realize Single wave transmission, CWDM three waves in single fiber, flat gain. DWDM; it is important fiber transmission equipment of building large and medium – sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.

PRODUCT SPECIFICATIONS:

Item		Unit	Technical paremeter	Supplement
CATV operation wavelength		nm	1545~1565	CATV
OLT pass wavelength		nm	1310/1490	PON
CATV operation wavelength loss		dB	0.8	1550nm
OLT pass wavelength loss		dB	0.8	1310/1490nm
Number of uplink optical ports (for OLT)		pcs	64
Input optical power		dBm	-5 ~ +10
Max output power		dBm	40
Output power stability		dBm	±0.5
Noise		dB	≤ 5.0	Input power0dBm,λ=1550nm
Return loss	Input	dB	≥ 45
Return loss	Output	dB	≥ 45
Optical connector			SC/APC, SC/UPC
C/N		dB	≥ 50
C/CTB		dB	≥ 63
C/CSO		dB	≥ 63
Supply voltage		V	AC170V~265V; AC90~135V; DC36~72V
Power Consume		W	≤ 90
Network management interface			RJ45
Working temperature		℃	-10 – +42
Max relative humidity		%	Max 5% no condensation
Storage temperature		℃	-30 ~ +70
Devise size		mm	464(L)440(W)89(H)
Package size		mm	640(L)640(W)200(H)
