C-Corp 8ft Polar Mount Satellite Dish – Powerful & Reliable Signal
Order Now
C-Corp 8ft Polar Mount Satellite Dish
... people are viewing this right now
Compare
C-Corp 8ft Polar Mount Satellite Dish
Model: P2406W01
- 2.4 meters/ 8ft prime focus dish antenna / 1color logo pole mount/CR steel/ powder coating

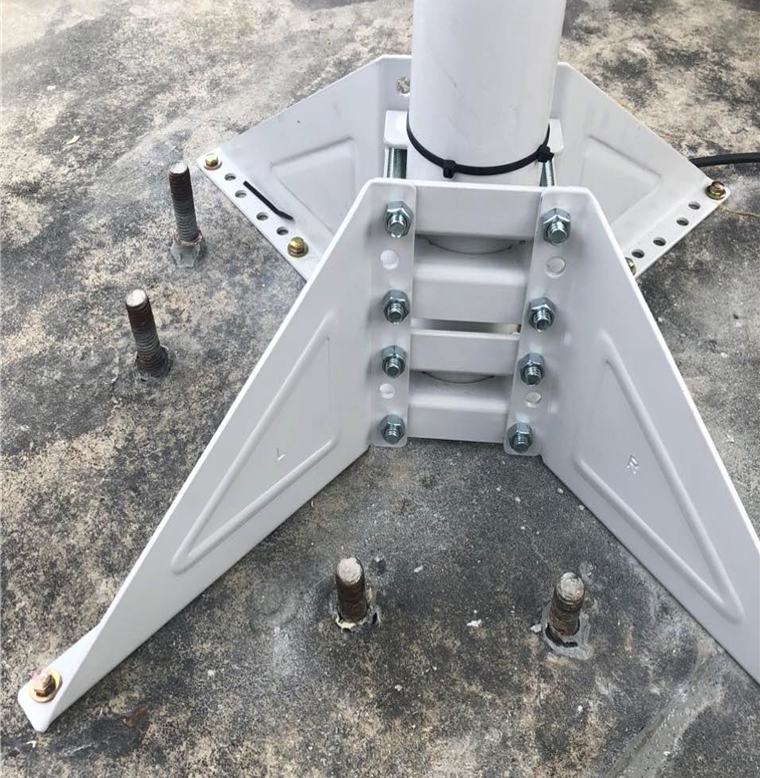

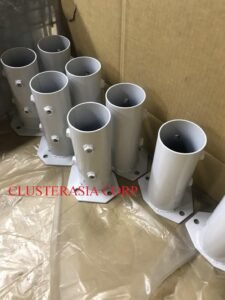

- Pole Mount “pole dia. :76mm/length: 120cm

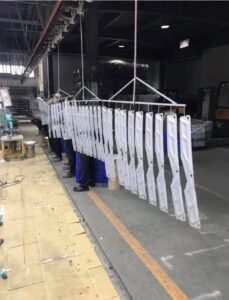

- CR steel/ powder coating

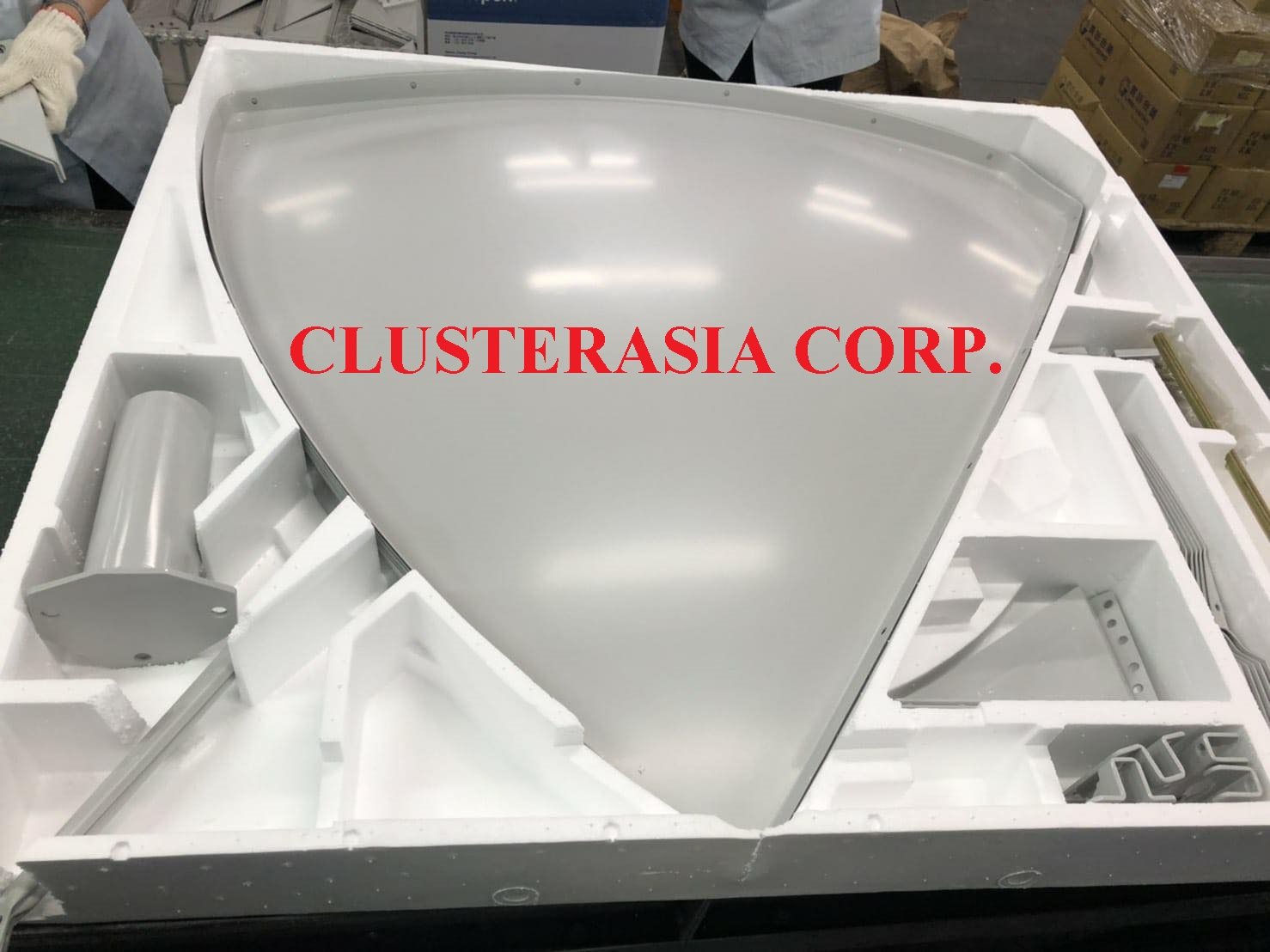

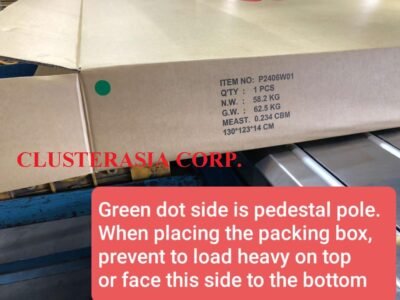

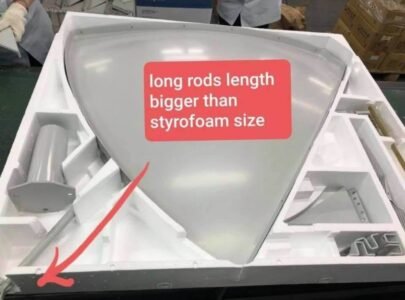

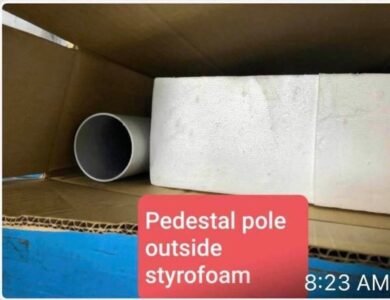

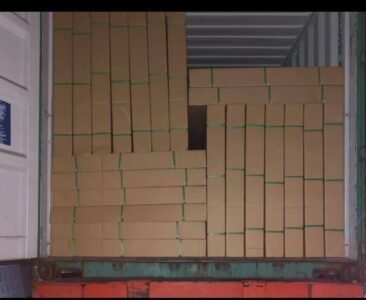

- Packing: Individual packing per set
| P2406 | Item Specification |
| 6 | Panel (Sector Divided) |
| 240 | Effective Physical size (cm) |
| 912 | Focus length (mm) |
| 38.9dB | C-band gain @4.0GHZ |
| 48.7dB | Ku-band Gain @12.5HGZ |
| 0°~90° | Elevation |
| 0°~360° | Azimuth |
| 75% (min) | Aperture Efficiency |
| 0.35 | F/D Ratio |
| v | Finishing (polyester powder) |
| V | Color (Gray/Cool Gray) |
| D/P/W/R | Standard Mount |
| 76 | Pole diameter acceptable (mm) |
| -40°~+60° | Ambient Temperature (C) |
| 0~100% | Relative Humidity |
Explore more products when you click here.
You may also like and follow our Facebook Page: Clusterasia Corp. for more updates.
Related Products
3 Meter Satellite Mesh Dish Antenna 6-Petal
3 Meter Satellite Mesh Dish Antenna 6-Petal
New Design 3 Meter Satellite Mesh Dish Antenna 6-Petal Available F/D= 0.45
Supplied in 6 parts , mounted mesh, easy and fast set up and low weight
This 6-Petal 3 meter dish kit is easy to assemble, 20mmsquare tube aluminum is used for the Petal construction which are preassembled and ready to place to each other, the 10mm thickness
CNC aluminum centers (hub) are used to create a solid base.
The dish kit is supplied with a 3 or 4 leg feed support, all assembling parts and 6mm or 2.8mm square mesh, which can used up to 6cm band (max 6Ghz), option is 2.8m galvanized wire mesh, max frequency is 11GHz.
You need a Spanner No:10 and No:13 to assemble this 6-Petal dish
Construction: 2pcs CNC milled centers (hub) are used to mount 6 petal
Hub is 20cm round, 10mm thickness aluminum plate
Ribs made of 20mm square aluminum tube
4 inner rings are used to secure mesh
Outher rim made of 2* 3x20mm aluminum strip
Mesh secured by using of 2x20mm aluminum strip
3 or 4 leg feed support 15 or 20 square aluminum tube
Special U-clamp used to heavy duty 4-leg feed support
As option available rotor/ dish mount clamp
