2 ports 4 ports Optical FTTH Terminal Box Outdoor Terminal box Splitter Fiber Distribution Box
Order Now
Call for Price
Key attributes
Industry-specific attributes
Type: Fiber optic distribution box
Packaging and delivery
Selling units: Single item
Single package size: 20X15X4.5 cm
Single gross weight: 0.300 kg
2 ports 4 ports Optical FTTH Terminal Box Outdoor Terminal box Splitter Fiber Distribution Box
This serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic box can be used for dividing, distributing and connecting fibres. It also provides solid protection and gives the possibility to manage the FTTx network building.

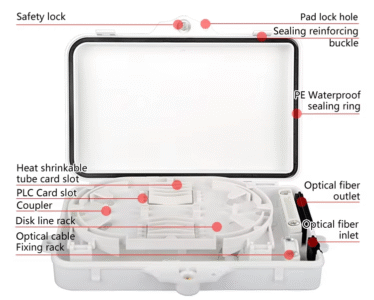

Features:
- Fully enclosed structure
- Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65
- Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
- Cables, pigtails, crossover cables run on their own path
- Installation of the SC-type adapter
- Easy maintenance
- The control panel can be inverted and the power cable is articulated
Product descriptions
| Product name | FTTH BOX | IP Rate | IP65 |

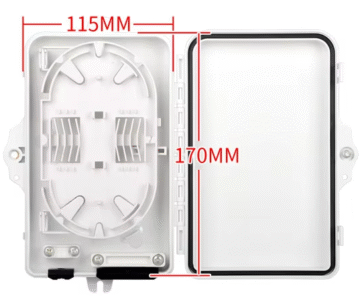

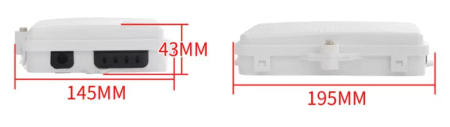

| Product Model | FDB-6-1 | Product Size Inner Box Size | 195*145*43 mm 200*150*45mm |
| Ports | 1 inlet port φ8.5mm 2/4/6 out port 3*6mm | Packing Quantity | 60 pcs / carton 50*50*42cm 18.5kg |
| Compatible with | 1:4 PLC splitter or 6 core adapter pigtail | Material | PC ABS |
| Installation Type | wall / pole-mounted | G. weight | 0.3kg |
| Accessories | 1. Wall mounting kits : 2 pieces 2. Screws : 2 pieces 3. Key :1 piece | ||
