Suspension Clamp J Hook overhead line Clamp for ADSS Cable 5-20mm

Order Now

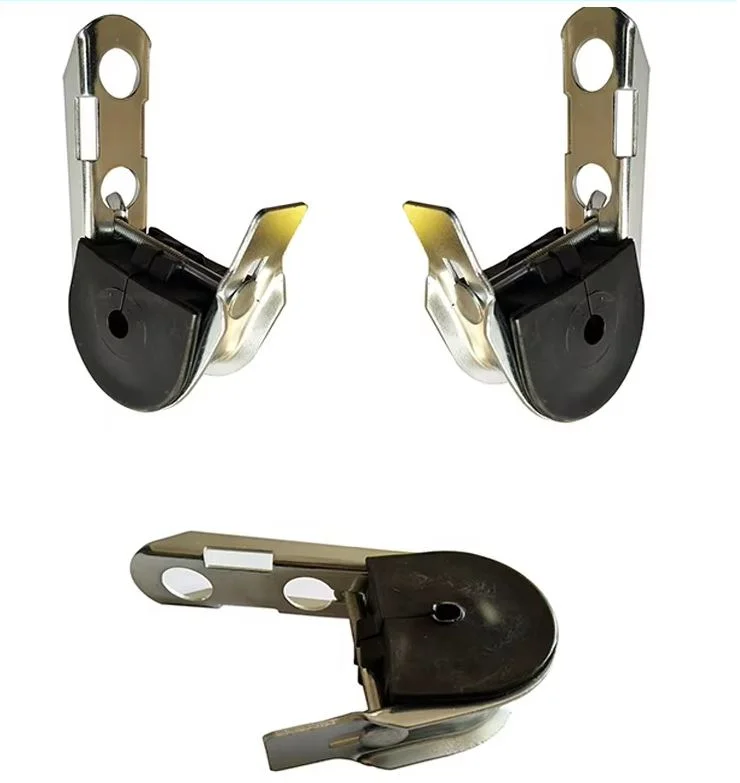

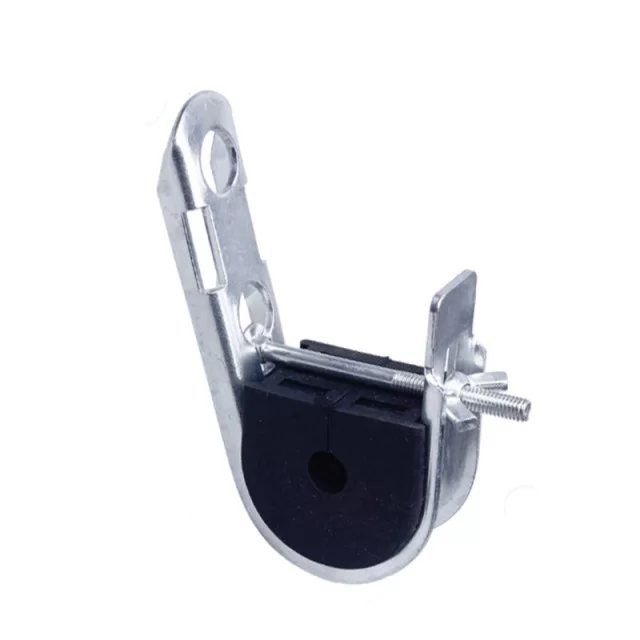

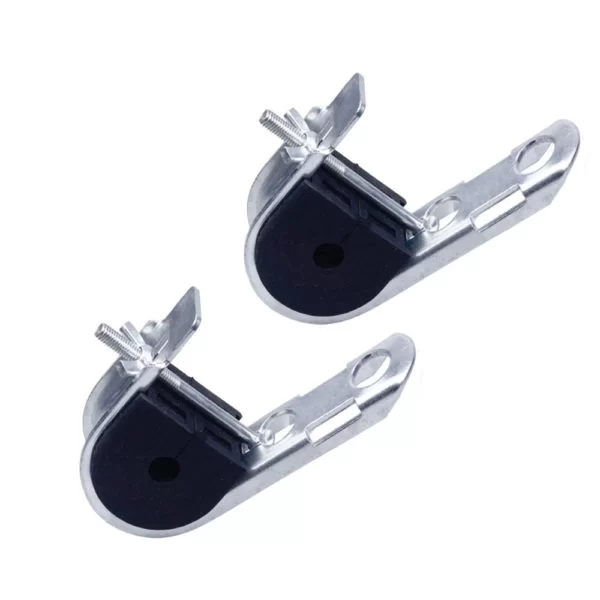

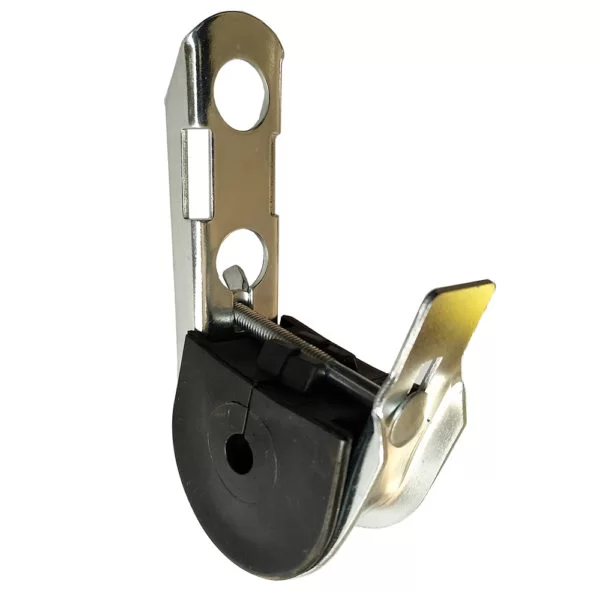

Suspension Clamp J Hook overhead line Clamp for ADSS Cable

Suspension Clamp J Hook overhead line Clamp for ADSS Cable is designed to provide a suspension for aerial ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

... people are viewing this right now

Compare

Suspension Clamp J Hook overhead line Clamp for ADSS Cable 5-20mm

Suspension Clamp J Hook overhead line Clamp for ADSS Cable

Main Features:

Three sizes to cover the full range of ADSS cables from 5 to 20mm.
Installation in just a few seconds with a 13 mm standard 6-point spanner.
The shape of the J Hook allows a running out of the cable directly in the hook.
The suspension clamps can be directly secured to the poles using bolts or bandings. They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

Description

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. It is designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets.

Specification:

ITEM	VALUE
Material	Stainless Steel, Rubber
Model Number	CWSC-1
Product name	J Hook Suspension Clamp
Material	SS+Rubber
Surface treatment	Galvanization
Application	Suspension pole line ccessories
The maximum vertical load	2600lbs
ADSS Cable diameter	5-20mm
