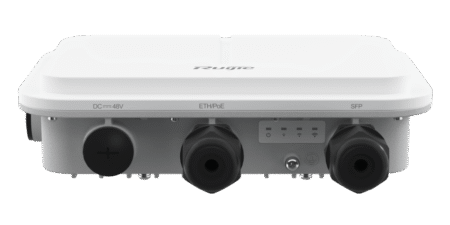

RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Highlight Features
- Industrial-grade product design, IP68 rating, Operating temperature: –40°C to +65°C
- High-power omnidirectional antennas with 360° coverage to every corner
- Upgraded to Wi-Fi 6, a combined data rate of up to 2.976 Gbps
- Ruijie cloud management, intelligent optimization
RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
- Wi-Fi 6 dual-radio wireless access point
- Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
- Built-in omnidirectional antennas
- Up to four spatial streams
- Data rate of up to 2.976 Gbps
- Fat/Fit/Cloud mode switchover
- Electrical and optical uplink ports
- IEEE 802.3af/at-compliant (PoE/PoE+) power supply and DC power supply (48 V/0.35 A)
RG-AP680-L
Features
- Designed for Beach Ruijie Cloud Managed Series Outdoor AP RG-AP680-L
- Industrial-Grade Product Design Ensuring Stable Running in Harsh Environments
- Omnidirectional Antennas with 360° Coverage to Every Corner
Specifications
| Dimensions and Weight | RG-AP680-L |
| Unit dimensions(W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Shipping dimensions(W x D x H) | 415 mm x 242 mm x 337 mm (16.34 in. x 9.53 in. x 13.27 in.) |
| Unit weight | Main unit: 1.12 kg (2.47 lbs) |
| Mounting bracket: 0.9 kg (1.98 lbs) | |
| Shipping weight | 6.43 kg (14.18 lbs) |
| Mounting | Ceiling/Pole-mount (a mounting bracket is delivered with the main unit) |
| Wi-Fi Radio | RG-AP680-L |
| Radio design | Dual-radio and four spatial streams: |
| ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO | |
| ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO | |
| Operating frequencies | Radio 1: 802.11b/g/n/ax |
| ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 | |
| Radio 2: 802.11a/n/ac/ax | |
| ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 | |
| ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 | |
| ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 | |
| ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 | |
| Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. | |
| Country-specific restrictions apply: | |
| Egypt | |
| Radio 1: 802.11b/g/n: 2.400 GHz to 2.4835 GHz | |
| Radio 2: 802.11a/n/ac: 5.150 GHz to 5.350 GHz | |
| Data rates | Combined peak data rate: 2.976 Gbps |
| Radio 1: 2.4 GHz, 574 Mbps | |
| ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) | |
| ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) | |
| Radio 2: 5 GHz, 2.402 Gbps | |
| ● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum) | |
| ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) | |
| ● Two spatial stream Multi-User (MU) MIMO for up to 2.402 Gbps wireless data rate to up to two 1SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) | |
| ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) | |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: |
| 2.4 GHz radio | |
| ● 802.11b: 1, 2, 5.5, 11 | |
| ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 | |
| ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) | |
| ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT40) | |
| ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) | |
| 5 GHz radio | |
| ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 | |
| ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) | |
| ● 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT160) | |
| ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) | |
| Packet aggregation | 802.11n/ac/ax : A-MPDU and A-MSDU |
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz radio: 3.5 dBi |
| 5 GHz radio: 5.5 dBi | |
| Maximum transmit power | 2.4 GHz radio: 28 dBm (25 dBm per chain) |
| 5 GHz radio: 28 dBm (25 dBm per chain) | |
| Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. | |
| Thailand | |
| 2.400 GHz to 2.4835 GHz: 20 dBm | |
| 5.470 GHz to 5.725 GHz: 30 dBm | |
| 5.725 GHz to 5.825 GHz: 30 dBm | |
| Peru | |
| 2.400 GHz to 2.4835 GHz: EIRP ≤ 36dBm | |
| 5.150 GHz to 5.250 GHz: EIRP ≤ 23dBm | |
| 5.250 GHz to 5.350 GHz: EIRP ≤ 30dBm | |
| 5.470 GHz to 5.725 GHz: EIRP ≤ 30dBm | |
| Egypt | |
| 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm | |
| 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm | |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) |
| 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) | |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) | |
| Modulation types | 802.11b: BPSK, QPSK, CCK |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Wi-Fi Radio Frequency Performance | RG-AP680-L | ||
| Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
| 2.4 GHz 802.11b | 1 Mbps | 25 dBm | -92 dBm |
| 2 Mbps | 25 dBm | -82 dBm | |
| 5.5 Mbps | 25 dBm | -84 dBm | |
| 11 Mbps | 25 dBm | -78 dBm | |
| 2.4 GHz 802.11g | 6 Mbps | 25 dBm | -84 dBm |
| 24 Mbps | 23 dBm | -74 dBm | |
| 36 Mbps | 23 dBm | -72 dBm | |
| 54 Mbps | 20 dBm | -67 dBm | |
| 2.4 GHz 802.11n (HT20) | MCS0 | 25 dBm | -84 dBm |
| MCS7 | 20 dBm | -66 dBm | |
| 2.4 GHz 802.11n (HT40) | MCS0 | 25 dBm | -79 dBm |
| MCS7 | 20 dBm | -63 dBm | |
| 2.4 GHz 802.11ax (HE20) | MCS0 | 25 dBm | -84 dBm |
| MCS11 | 18 dBm | -54 dBm | |
| 2.4 GHz 802.11ax (HE40) | MCS0 | 25 dBm | -80 dBm |
| MCS11 | 18 dBm | -51 dBm | |
| 5 GHz 802.11a | 6 Mbps | 25 dBm | -84 dBm |
| 24 Mbps | 23 dBm | -74 dBm | |
| 36 Mbps | 23 dBm | -72 dBm | |
| 54 Mbps | 20 dBm | -67 dBm | |
| 5 GHz 802.11n (HT20) | MCS0 | 25 dBm | -84 dBm |
| MCS7 | 20 dBm | -66 dBm | |
| 5 GHz 802.11n (HT40) | MCS0 | 25 dBm | -81 dBm |
| MCS7 | 20 dBm | -63 dBm | |
| 5 GHz 802.11ac (VHT20) | MCS0 | 25 dBm | -84 dBm |
| MCS9 | 19 dBm | -61 dBm | |
| 5 GHz 802.11ac (VHT40) | MCS0 | 25 dBm | -81 dBm |
| MCS9 | 19 dBm | -56 dBm | |
| 5 GHz 802.11ac (VHT80) | MCS0 | 25 dBm | -78 dBm |
| MCS9 | 19 dBm | -53 dBm | |
| 5 GHz 802.11ax (HE20) | MCS0 | 25 dBm | -84 dBm |
| MCS11 | 18 dBm | -54 dBm | |
| 5 GHz 802.11ax (HE40) | MCS0 | 25 dBm | -81 dBm |
| MCS11 | 18 dBm | -51 dBm | |
| 5 GHz 802.11ax (HE80) | MCS0 | 25 dBm | -78 dBm |
| MCS11 | 18 dBm | -48 dBm | |
| 5 GHz 802.11ax (HE160) | MCS0 | 25 dBm | -73 dBm |
| MCS11 | 18 dBm | -43 dBm | |
| Bluetooth Radio | RG-AP680-L |
| Bluetooth | Bluetooth 5.0 |
| iBeacon Bluetooth, applied to Bluetooth locating and Bluetooth applications | |
| Antenna type | Integrated omnidirectional antenna |
| Maximum antenna gain | 5 dBi |
| Maximum transmit power | 10 dBm |
| Receive sensitivity | -88 dBm (@BLE) |
| Ports Specifications | RG-AP680-L |
| Fixed service port | 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at standard |
| 1 x 1GE SFP port | |
| Fixed management port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| 3 x single-color RSSI LEDs | |
| Button | 1 x Reset button |
| ● Press the button for shorter than 2 seconds. Then the device restarts. | |
| ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Power Supply and Consumption | RG-AP680-L |
| Input power supply | The AP supports the following two power supply modes: |
| ● 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently. | |
| ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). | |
| Note: | |
| ● If both DC power and PoE are available, DC power is preferred. | |
| Overall power consumption | Maximum power consumption: 12.95 W |
| ● DC powered: 12.95 W | |
| ● PoE powered (802.3af): 12.95 W | |
| ● PoE+ powered (802.3at): 12.95 W | |
| ● PoE++ powered (802.3bt): 12.95 W | |
| ● Idle mode: 6.0 W |
| Environment and Reliability | RG-AP680-L |
| Temperature | Operating temperature: –40°C to +65°C (–40°F to +149°F) |
| Storage temperature: –40°C to +85°C (–40°F to +185°F) | |
| Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). | |
| Humidity | Operating humidity: 0% RH to 100% RH (non-condensing) |
| Storage humidity: 0% RH to 100% RH (non-condensing) | |
| IP rating | IP68 |
| Mean Time Between Failure (MTBF) | > 250,000 hours |
| Regulatory Compliance | RG-AP680-L |
| Security regulations | IEC 62368-1 |
| EN 62368-1 | |
| EN 60950-22 | |
| EMC regulations | EN 55032 |
| EN 55035 | |
| EN IEC 61000-3-2 | |
| EN 61000-3-3 | |
| EN 301 489-1 | |
| EN 301 489-3 | |
| EN 301 489-17 | |
| Radio frequency regulations | EN 300328 |
| EN 301 893 | |
| EN 300 440 | |
| EN 62311 | |
| EN IEC 62311 | |
| EN 50665 | |
| FCC Part 15 |
| Applicable Software Version | RG-AP680-L |
| Applicable software version | RGOS11.9(6)W3B3 or later |
| WLAN | RG-AP680-L |
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 1024 |
| Note | |
| The number of associated clients varies according to the environment. | |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding |
| Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. | |
| Remote intelligent perception technology (RIPT) | |
| Intelligent client identification technology | |
| Intelligent load balancing based on the STA quantity or traffic | |
| STA limiting | SSID-based STA limiting |
| Radio-based STA limiting | |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Security | RG-AP680-L |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) |
| PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication | |
| SMS authentication (used with the RG-WS series wireless access controller) | |
| MAB authentication (used with the RG-WS series wireless access controller) | |
| WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE | |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Supported |
| NFPP | Supported |
| Routing and Switching | RG-AP680-L |
| IP service | Static IPv4 address and DHCP-assigned IPv4 address |
| NAT, FTP ALG, DNS ALG | |
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping |
| IPv6 DHCP client | |
| IP routing | IPv4/IPv6 static routing |
| VPN | PPPoE client |
| IPsec VPN |
| Management | RG-AP680-L |
| Network management | Fault inspection and alarm |
| Information statistics and logging | |
| SNMPv1/v2c/v3 | |
| NTP Server and NTP Client | |
| Network management platform | Ruijie Cloud |
| Web-based management (Eweb) | |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. |
| When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. | |
| When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
Looking for more products? Click here.
Related Products
Mikrotik CCR2004-16G-2S+
Call for Price
CCR2004-16G-2S+
This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.
CC-32UB - 32U DATA CABINET 5 FEET 600mm X 600mm X 1530mm
Call for Price
Item Specification:
✅Front door tempered glass
✅Rear iron plate door
✅2 side doors, 1 shelf
✅2 fans (American power cord plug)
✅1 PC 6-Hole plastic socket
✅30 sets of screws and nuts
✅4 support feet, 4 universal wheels
Organize and secure your network equipment with this 32U Data Cabinet (600mm x 600mm x 1530mm). Perfect for small to medium-sized server setups, this 4-foot rack features lockable doors, adjustable mounting rails, and optimal airflow for effective cooling. Ideal for data centers, offices, and IT rooms requiring reliable rack-mount storage.
CCORP DAC Cable 10G SFP+ to SFP+ 2M/3M Passive Direct Attach Cable Copper
Call for Price
CCORP DAC Cable 10G SFP+ to SFP+ 2M/3M Passive Direct Attach Cable Copper
42U DATA CABINET GLASS DOOR 6 FEET 600mm X 800mm X 2000mm
Call for Price
The 42U Data Cabinet Glass Door (600mm x 800mm x 2000mm) offers a sleek, modern design for secure equipment storage. With a spacious 6-feet height and durable construction, this server rack features a glass front door for easy monitoring of equipment and enhanced airflow. Perfect for data centers, offices, and IT environments, this cabinet ensures safety and accessibility.
Key Features:
- Dimensions: 600mm (W) x 800mm (D) x 2000mm (H)
- Height: 6 feet for large equipment storage
- Material: Durable steel with tempered glass door
- Design: Glass door for visibility and airflow
- Applications: Suitable for servers, networking devices, and telecom equipment
- Security: Lockable door to prevent unauthorized access
- Cooling: Optimized ventilation for better airflow and heat dissipation
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Call for Price
C-CORP 100G QSFP28 OPTICAL TRANCEIVERS
Functions and features:
- Hot-swappable SFP package
- Compliant with QSFP+ MSA standard
- 4 independent full-duplex channels
- VCSEL/DFB/EML laser
- Single channel supports up to 25.78 Gb/s
- MPO-12/dual-fiber LC interface
- Built-in digital diagnostic function +3.3V single power supply
- Operating temperature range: 0-70 °C RoHS compliant
- MPO-12/dual-fiber LC interface
SFP 1.25G 20km 1310/1550nm SFP Module BIDI LC DDM
₱1
SFP 1.25G 20km 1310/1550nm SFP Module BIDI LC DDM
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Call for Price
C-CORP 400G QSFP DD OPTICAL TRANCEIVER MODULE
Functions and features:
- Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4 and 100G Lambda MSA
- Hot Pluggable QSFP-DD Form Factor
- High-speed Electrical Compliant to IEEE 802.3bs
- 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
- QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
- MPO-12/dual-fiber LC interface
- CWDM EML /VCSEL/DFB
EchoLife EG8145V5 ONU
Call for Price
Key Features:
Plug-and-Play – Configurations are automatically delivered by the network management system so on-site commissioning is not required.
Comprehensive Triple-Play Service – The ONT provides abundant ports to implement multiple access services, including home network-attached storage, internet access, and video services, providing users with a comprehensive triple-play service.
Energy Efficient – Integrated PON, voice, gateway, and LSW modules, with up to 25 percent power savings.
CC-22UB - 22U DATA CABINET 4 FEET 600mm X 600mm X 1200mm
Call for Price
CC-22U – 22U DATA CABINET 4 FEET 600mm X 600mm X 1200mm
Optimize your IT space with this CC-22U – 22U 4FT data cabinet – featuring a durable steel frame, tempered glass door, cooling fans, and built-in power strip. Ideal for structured cabling, servers, and network devices in compact environments.
Item Specification:
- Dimensions: 600mm (W) x 600mm (D) x 1200mm (H)
- Capacity: 22U
- Tempered glass front door for visibility and protection
- Rear iron plate door for enhanced security
- 2 removable side panels for convenient access
- 1 fixed shelf for equipment support
- 2 fans for superior ventilation (US plug)
- 6-gang PDU (plastic) included
- 30 mounting screw sets
- 4 support feet + 4 caster wheels for stability and mobility
Perfect for network setups, server storage, and IT infrastructure in commercial or professional environments.
Reviews
There are no reviews yet.
