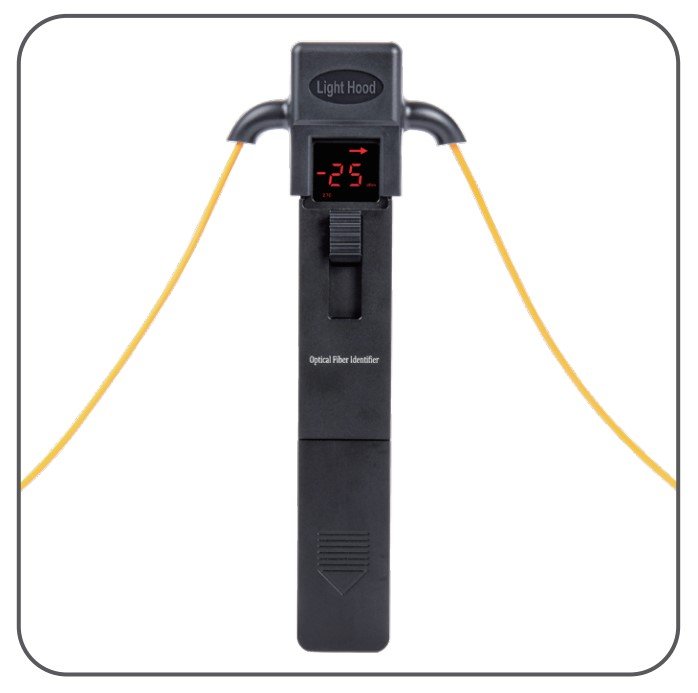

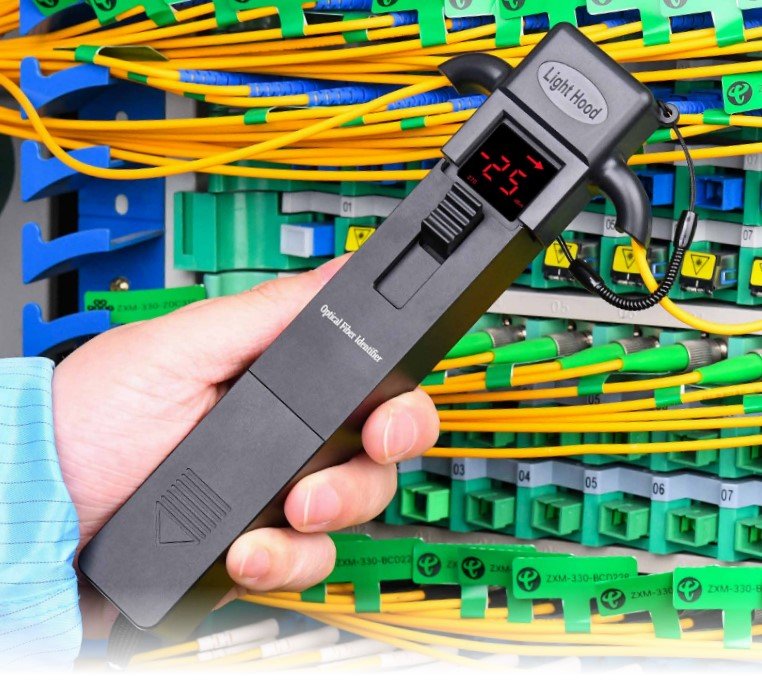

Optical Fiber Identifier
Order Now
Call for Price
Optical Fiber Identifier
Features & Applications
- Display relative optical power
- Test online without interruption of the link
- Recognize the signal of 270Hz, 1kHz, 2kHz

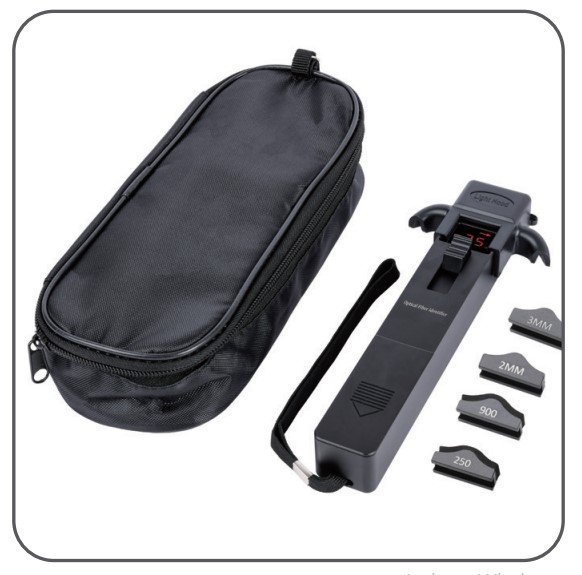

- Comes with a hood to provide more accurate test results outdoors
- Identify the propagation direction of light, sound alarm reminder

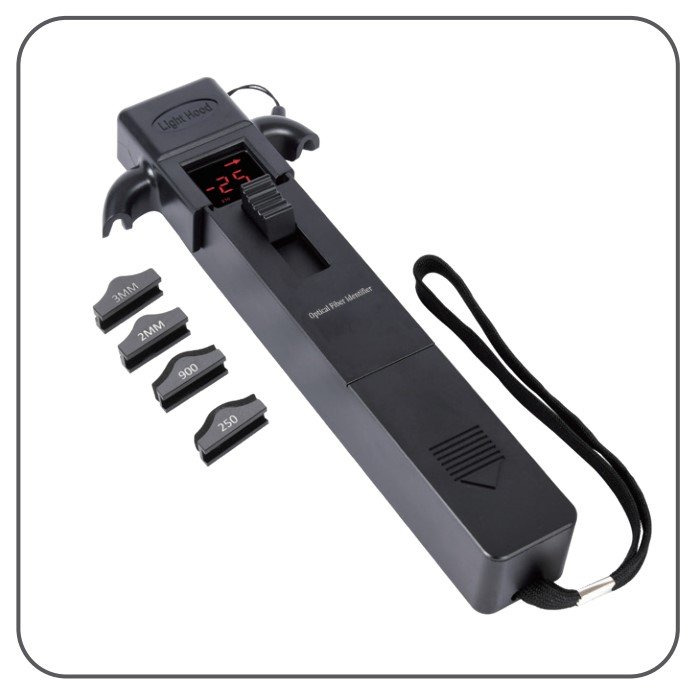

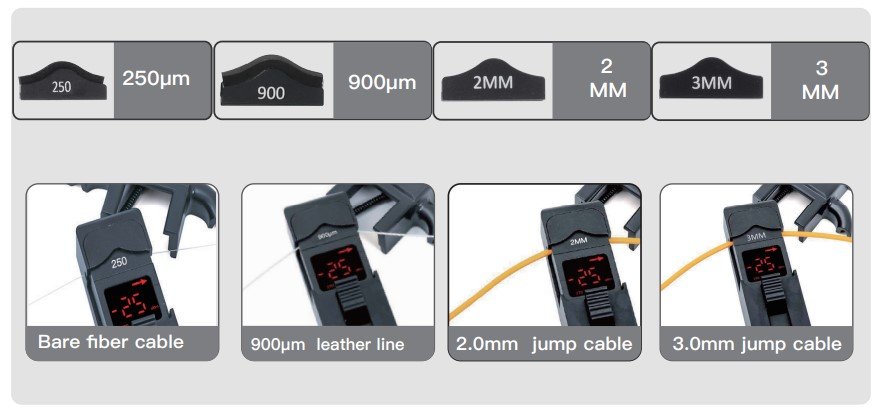

- Led display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber
- Test sensitivity -40dBm to 10 dBm
- Low power reminder
Optical Fiber Identifier
Features & Applications
- Display relative optical power
- Test online without interruption of the link
- Recognize the signal of 270Hz, 1kHz, 2kHz
- Comes with a hood to provide more accurate test results outdoors
- Identify the propagation direction of light, sound alarm reminder
- Led display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber
- Test sensitivity -40dBm to 10 dBm
- Low power reminder
| Specifications: | |
| Identified Wavelength Range | 800nm to 1700nm |
| Identified Signal Type | CW,270 Hz ± 5%, 1 kHz ± 5% |
| Detector Type | Φ 1mm InGaAs 2 pcs |
| Adapter Type | Φ0.25(Bare fiber), Φ0.9,Φ2.0(Applicable for Φ3.0Cable) |
| Signal Direction | Left & Right LED |
| Optical Power Reading | -40 dBm to 10dBm |
| Signal Frequency | 270Hz, 1kHZ, 2kHz |
| Power Supply | 6F22nd/6LR61 |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Dimension | 19.5*8*3cm |
| Weight | 255g |
