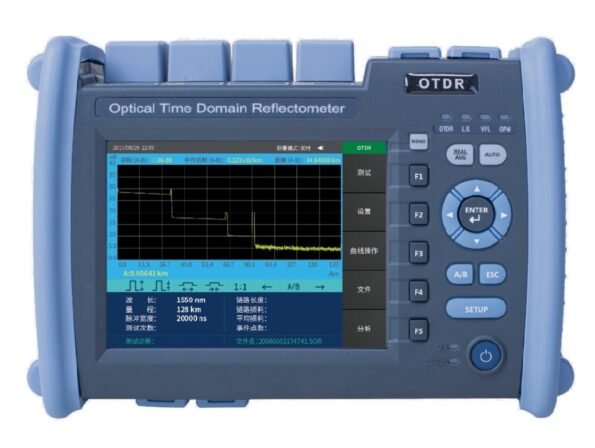

NK6000 Novker Multi Functional Optical Time Domain Reflectometer
Order Now
Call for Price
NK6000 Novker Multi Functional Optical Time Domain Reflectometer
NK6000 multi-functional OTDR adopts 5.6 inch color screen, double operation of keys and touch. It integrates of OTDR, Visual Fault Location, Event Map, Optical Power Meter, Light Source, Optical Loss Test, Optical End Face Detection, multi-functions to help customers efficiently solve the field test and maintenance; Intelligent power management, 20 hours of super long standby, efficient guarantee of field test and maintenance.
It is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, emergency repair of communication system of optical fiber communication system, research and production measurement of optical fiber cable.
NK6000 Novker Multi Functional Optical Time Domain Reflectometer
NK6000 multi-functional OTDR adopts 5.6 inch color screen, double operation of keys and touch. It integrates of OTDR, Visual Fault Location, Event Map, Optical Power Meter, Light Source, Optical Loss Test, Optical End Face Detection, multi-functions to help customers efficiently solve the field test and maintenance; Intelligent power management, 20 hours of super long standby, efficient guarantee of field test and maintenance.
It is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, emergency repair of communication system of optical fiber communication system, research and production measurement of optical fiber cable.
Product Features:
- 5.8-inch color TFT LCD display,touch/key dual operation
- Built-in stable light source function 1310/1550nm
- Built-in optical power meter test function
- Built-in Visual red light fault location (VFL)
- Built-in optical loss test
- Built-in Optical Eye (Optical Link Intelligent Analysis MAP View)
- Less than 0.8m short-term event dead zone, test fiber jumper easily
- Has a unique test result self-diagnosis function
- Independent and convenient one-button automatic operation mode, real-time test function keys
- Multi-wavelength synchronization test function
- With multiple waveform viewing capabilities
- Link-band non-destructive testing (online test module)
- With Ethernet remote control function
- Communication light automatic monitoring function
- With test file wireless transmission function
- Battery low voltage alarm function
- WinCE Windows operating system, English operating interface
Product Specification:
- Model: NK6000
- Standard wavelength: 1310/1550nm
- Dynamic Range: 35/33dB
- Event dead zone: 0.8m
- Attenuation blind area: 6m
- Measuring rang: 0.4、0.8、1.6、3.2、6.4、16、32、64、128、256、512km
- Measuring pulse width: 5、10、30、100、275、500、1000、5000、10000、20000ns
- Ranging accuracy: ±（1m+Sampling interval+0.005%×test distance)
- Loss precision: 0.01dbReflection accuracy: ±3dB
- Date storage: ≥2000
- External interface:USB,MIN-USB,RJ-45
- Optical output interface:FC/SC/ST(replace)
- VFL: 650nm±10nm,≥5mW(typical)
- Optical power meter: Wavelength range:1200nm～1650nm, Power range:-45～＋16dBm
- Stabilizing light source function: 1310/1550nm:≥-5dBm CW(270Hz,1k270Hz,2k270Hz)
- Display screen: 5.8 inch color TFT LCD touch screen
- Battery: 7.4v/5000mAh Lithium battery pack Supports up to 12 hours of continuous work time
- Power supply: Output:19v,1.31A
- Size: 215mm*150mm*70mm
- Weight (with battery): <1.5kg
What’s in Package:
1x NK6000 Optical Time Domain Reflectometer & Accessories
Technical Specifications
