CCORP-RS220/48-50AS 19 INCH MODULAR RECTIFIER SYSTEM
Order Now
Call for Price
CCORP-RS220/48-50AS 19 INCH MODULAR RECTIFIER SYSTEM
Embedded DC Power System is widely deployed in the Telecom/Industrial environment today, a new generation “Green & Energy Saving” system, aiming at outdoor low power mobile Telecom/Industrial power market, meeting the trend of Telecom base station development, saving construction cost and shortening the time. The modular rectifier system is highly adaptable with the environment, features with a wide operating temperature range, meeting the demand of high-level users.
CCORP-RS220/48-50AS 19 INCH MODULAR RECTIFIER SYSTEM
DESCRIPTION:
Embedded DC Power System is widely deployed in the Telecom/Industrial environment today, a new generation “Green & Energy Saving” system, aiming at outdoor low power mobile Telecom/Industrial power market, meeting the trend of Telecom base station development, saving construction cost and shortening the time. The modular rectifier system is highly adaptable with the environment, features with a wide operating temperature range, meeting the demand of high-level users.
FEATURES:
- Wide operating range of AC input voltage: 90~290Vac
- Current/voltage switching tech with high efficiency ≥93.2%;
- Perfect battery management, battery temperature;
- Multiple communication ports, easy for networking and remote management.
- Modbus RS485/TCP/IP/YDN23 (YD/T1363) protocol;
- Temperature compensation, LVLD and LVBD protection;
- Automatic battery test function, cycle test, quick test;
- Supports power system & module sleep, efficiency mixing, energy saving;
- Support real-time detection of the operating status of the power system.
- Support alarm real-time detection and reporting;
- Hot-swapable;
- Input over/under voltage protection;
- Output over voltage protection;
- Output over current protection;
- Output short circuit protection;
- Auto current sharing, parallel operation;
APPLICATION:
- Satellite Communication Ground Station
- SCADA Networks and Data Room
- Mobile Communication
- Fiber Optic network
- Transmission equipment
- Radio base station/cell sites
- Railway & metro
- ESS
- 5G Base Station/Micro Base Station
- Direct-current emergency power units in power stations and chemical plants
APPLICATION STANDARDS
| Electrical | GB4943-2001, IEC60950-1, IEC60950-1, UL60950-1 |
| EMI | EN55032:2015, EN55035:2017, EN61000-3-2:2014, EN55022, CLASS A |
| ESD | GB17626.2-1998/IEC61000-4-2 |
| EFT | GB17626.4-1998/IEC61000-4-4 |
| SURGE | GB17626.5-1998/IEC61000-4-5 |
| DIP | GB17626.11-1998/IEC61000-4-11 |
| Conducted Immunity | IEC61000-4-6 |
| Radiated Immunity | IEC61000-4-3 |
| Environment | ETSI EN300019-2, ETSI EN300132-2 RoHS |
TECHNICAL SPECIFICATION
| CCORP-RS220/48-50AS Modular Rectifier system | |
| Rectifier Module | BR483000 1 PC |
| Efficiency | 96% |
| Power Capacity (Max) | 3000W |
| Input Current | 13.63A |
| Input Protection (Recom) | 17.04A |
| Height | 44mm (1 RU) |
| Width | 482mm (19 Inch) |
| Depth | 360mm |
| Weight | 11 KG Appro. |
| Classification | IP21 |
AC OUTPUT | |
| AC Con-fig. | 220Vac (L+N+PE) |
| Input Voltage Range | 85Vac-300Vac |
| Frequency | 45-66Hz |
| THDi | <3% @≥50% Load Rated input & Output Voltage |
| SPD | yes |
| AC Breaker | 63A/1P |
DC OUTPUT | |
| Output Voltage | 42-58VDC 53.5Vdc nom |
| Output Current (Max) | 150A |
| Equ-charge (V) | 56.4V (42-58Vdc adjustable) |
| Float voltage (V) | 53.5V (42-58Vdc adjustable) |
| Voltage Regulation | ≤±0.6% |
| Current Sharing | ≤±5% |
| PF | 0.99@230VAC/50A, ≥0.98@230VAC/15A |
| Ripple voltage | ≤200mV<0-20mHZ> |
| Output Accuracy (V) | ≤0.6% |
| Load Breaker | 1*63A@1P |
| Battery Breaker | 63A@1P |
| BLVD | Yes |
| Shunt | Yes |
| AC Breaker | 63A/1P |
MONITOR CONTROL
| M50. | |
| Digital Input | DI*6, DO*6 |
| Local Interface | Display, Menu Structure Key Pads, LED |
| Remote Monitor | Modbus 485&SNMPv2, Ethernet, 6 alarm Relays |
| Battery Mid-Point | B-V2/B-V1 |
| User | 4 Group |
| Intelligent Wake Management | Yes |
| Battery Temp. Sensor | Yes |
| Temperature | Yes |
| Battery Self-Test | Yes |
OTHERS
| LCD Display | Input/output voltage, Frequency, output current, Environment, Rate |
| Power Status | City power, Output, Under voltage, overload voltage |
| Operating Temp. | -10 to +75°C (-10to+131°F) |
| Storage Temp | -40 to +75°C (-10to+158°F) |
| Humidity | 5% to 95% RH non-condensing |
| MTBF | >10,0000hours (ambient: 25°C) |
| Historical Alarm Records | Up to 1000Units |
| Altitude (M) | ≤4000m, more than 4000m, Rise every 100m, derated 1% Output Capacity. |

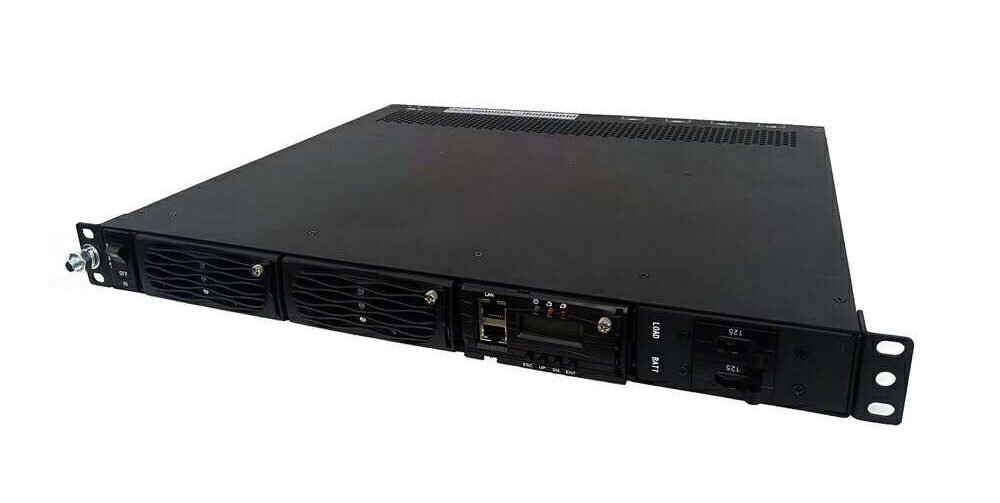

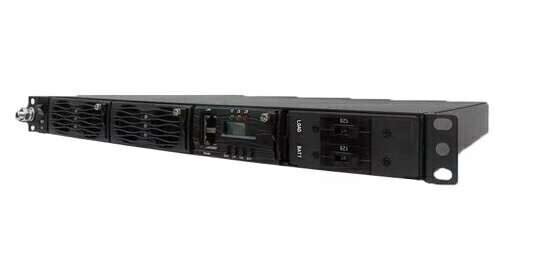

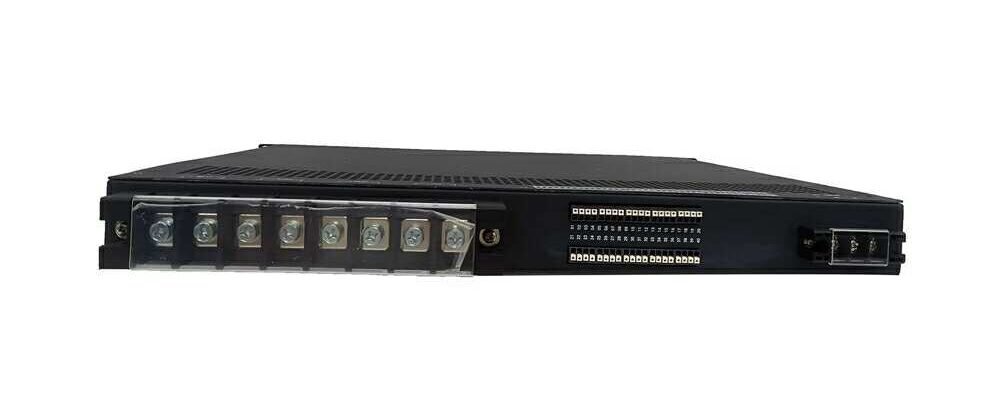

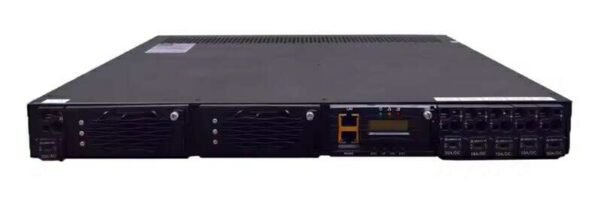

PRODUCT IMAGES
CCORP-RS220/48-50AS 19 INCH MODULAR RECTIFIER SYSTEM
