CCORP12F Indoor Fiber Optic Cable G652D
OPTICAL FIBER CABLE SPECIFICATION

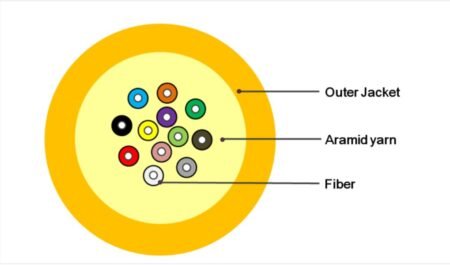

Profile View
Fiber Parameters
| No. | Items | Unit | Specification | |
| G652D | ||||
| 1 | Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | ||
| 2 | Cladding Diameter | um | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | um | ≤0.5 | |
| 5 | Coating Diameter | um | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | um | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters
| Items | Parameters | |
| Fiber count | 12 | |
| Tight-buffered Fiber | Diameter | 850μm±50μm |
| Material | LSZH | |
| Color | Blue Orange Green Brown Gray White Red Black Yellow Purple Pink Aqua | |
| Strength Member | Kevlar | |
| Jacket | Diameter | 6.2mm±0.2mm |
| Material | LSZH/PVC | |
| Color | Orange | |
Fiber Colour
Mechanical and Environmental Characteristics
| Items | Unite | Parameters |
| Tension (Long Term) | N | 200 |
| Tension (Short Term) | N | 660 |
| Crush (Long Term） | N/10cm | 200 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Operating Temperature | ℃ | -20～+60 |
| Storage Temperature | ℃ | -20～+60 |
