HSGQ-E08L 8 ports EPON OLT , 1.25G
Order Now
₱0

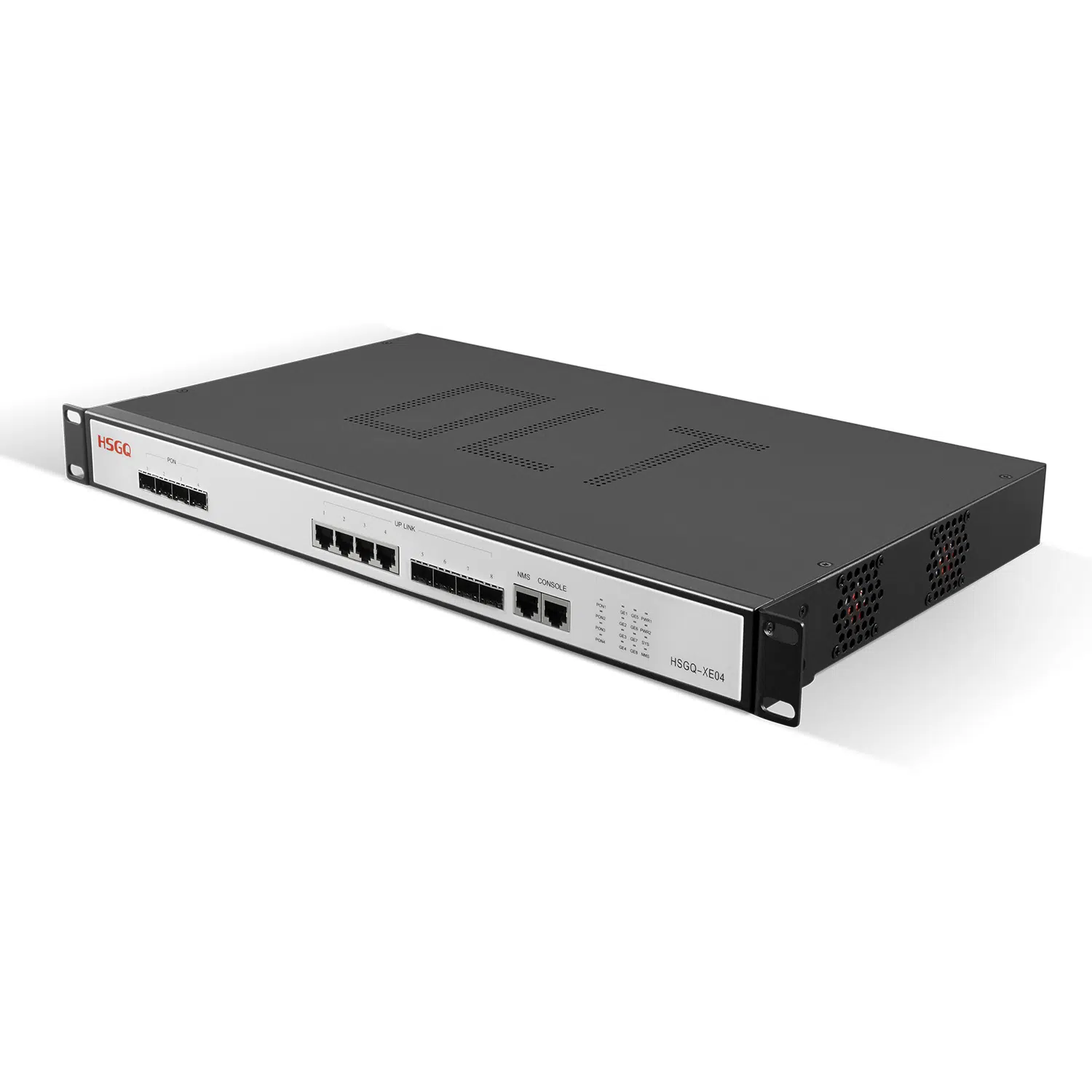

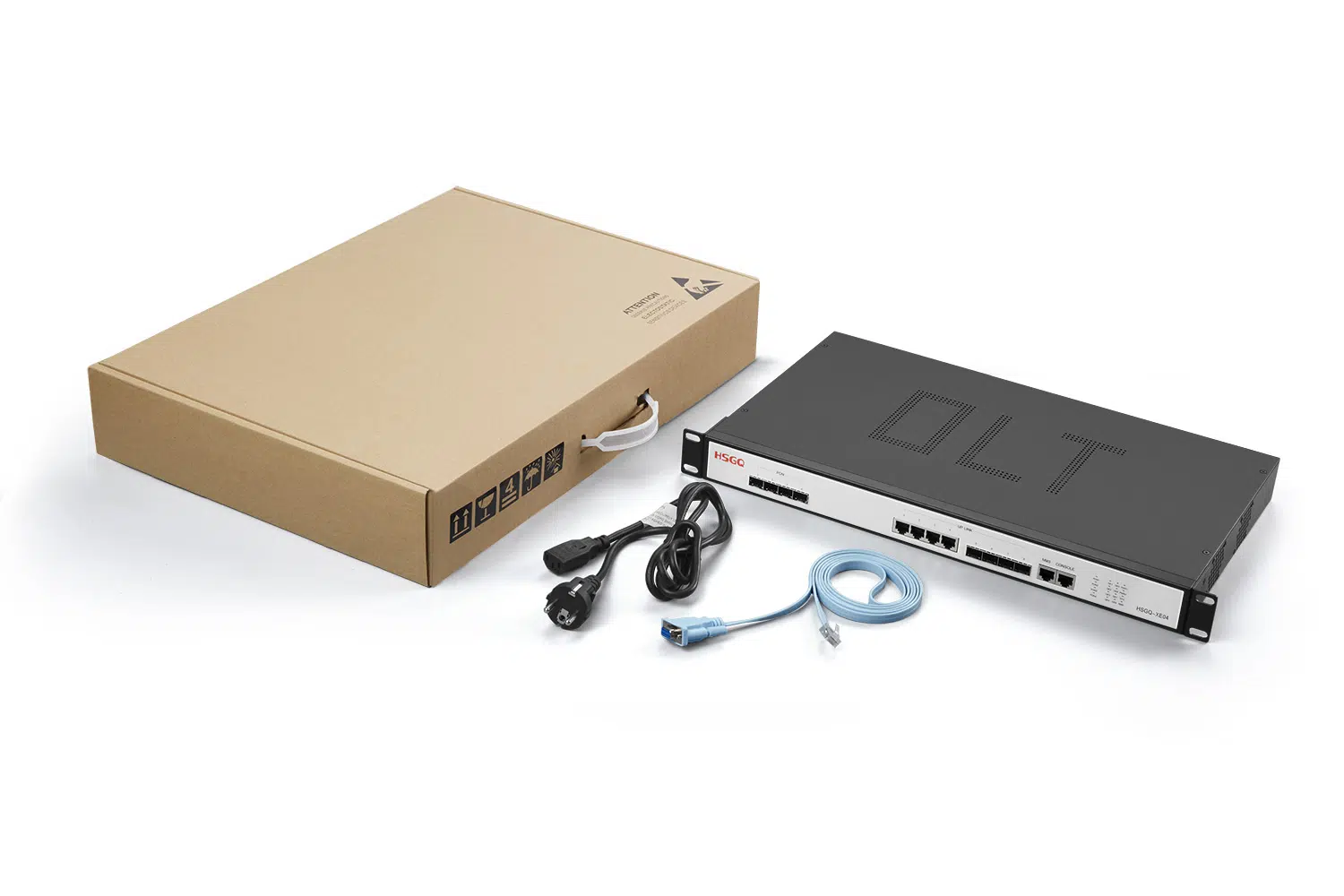

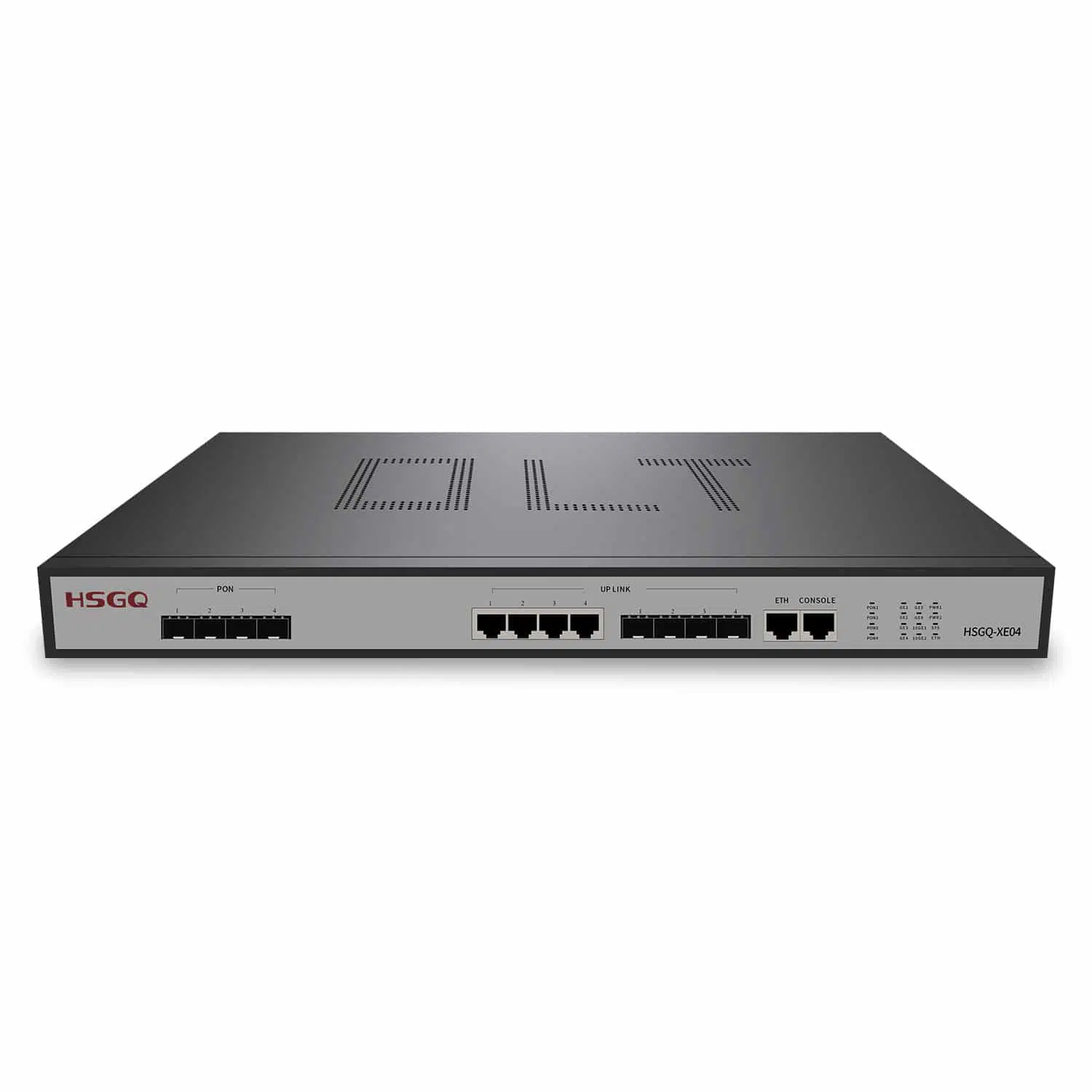

The HSGQ-XE04 series is a high integrated, medium capacity box ERON OLT switching equipment developed by Hongsheng Guang Shenzhen for the operator access and enterprise park network. The product follows IEEE802.3ah technical standard and meets the requirements of EPON OLT equipment in “YD/T 1475-2006 access network technical requirements”. It has good openness, large capacity, high reliability and complete software functions. It is widely used in the construction of network coverage, special network construction, enterprise network park access and other access network construction。
Specifications:
| Model | HSGQ-XE04 | |
| DDR | 512M | |
| FLASH | 16M | |
| Size (L*W*H) | Product size:442mm×260mm×44mm Package size:520mm×372mm×87mm | |
| Weight | <5kg | |
| Uplink | QTY | 8 |
| Copper | 4*10/100/1000Mauto-negotiable,RJ45 | |
| QTY | 4 | |
| PhysicalInterface | 4 SFP slots | |
| Connector Type | 1000BASE-PX20+/PX20++/PX20+++ | |
| Max splitting ratio | 1:64 | |
| Management Ports | CONSOLE port/NMS PORT | |
| Power Input | AC: 100V～240V AC 47/63Hz | |
| Support standard | IEEE 802.3ah EPON IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3z（1000BASE-X） IEEE802.3ab（1000Base-T） IEEE802.1Q(VLAN) IEEEE802.1d(STP) IEEEE802.1W(RSTP) IEEE802.1p(COS) IEEE802.1x(Port Control) IEEE802.3x（flow-control） Each OLT interface supports at most 64 ONU； Transmission distance of each OLT is at most 20Km | |
| PON function | Support auto register and confirm Blacklist and whitelist onu DBA configure P2P ONU authorization | |
| Layer 2/3 function | VLAN,QinQ,link convergency, broadcast strom control Support at most 4094 VLAN;performance statistic 16K MAC address;mac address management Port mirror / Static Trunk Support RSTP Storm control Support IGMP Snooping/proxy Support 512 router hosts Support 64 router subnets Limit quantity of maximum user at each port Port isolation Packe storm control ACL access control based on data stream QoS based on port, VID, TOS and MAC address; Encrytion of PON port transmitting data | |
| Configuration and Management | SNMP/NMS WebGUI management CLI, SNMP, TELNET,cluster etc. SSHv1/v2 Software and bootrom upgrade by TFTP and FTP Local server syslog to record system log Chinese/English command prompt Ping and traceroute Debug/Log management User management; Alarm management. | |
| Lightning | Service port has lightning protection | |
| Maintenance | Telnet remote maintenance | |
| Temperature | -10℃～60℃ | |
| Humidity | 5%～95% | |
Advantage:
EPON:OLT follows the technical standard of IEEE802.3ah and China telecom. （YD/T 1475-2006）
Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.
Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
Dimension: 1U cassette save space, low power consumption and save cost.
Optical Line Protection: support automatically switch when the line is debug.
High reliability: supports dual power supply(Default single power supply).
Feature:
Aggregation layer switch. Layer wire-speed forwarding, support for rich layer protocol.
16K MAC address table.
8 uplink ports, port aggregation through the largest available 8G uplink bandwidth.
Complete network management functions
Support flexible DBA, up and down traffic speed.
Support IP ToS, IEEE802.1Q
Port-based traffic control, traffic shaping.
Support ONU automatic identification, auto-discovery, and auto-registration.
Single link to support the automatic loop-back test function.
VLAN powerful features, including VLAN Stacking, Trunk, Translation.
Flexible and controllable multicast support, support IGMP snooping.
Support ACL /QoS
