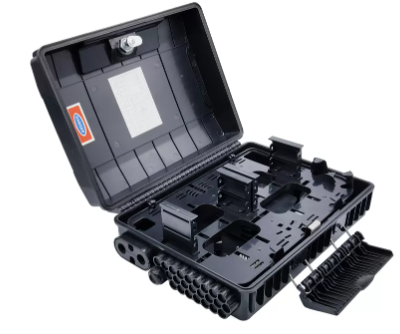

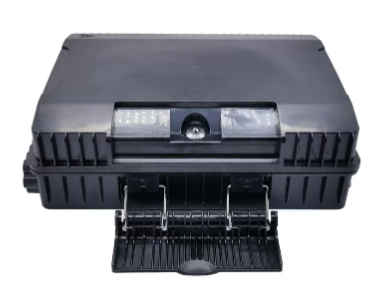

FDB0248 Fiber Optic Distribution Box Nap box
FDB0248 is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Total enclosed with key and buckle, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix Fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up, 1×16 or 1×32 mini splitter or LGX Splitter module can be optional;
- Max. hold 48 SC adapters or pigtails, bottom with 2pcs 24fiber splice trays for fusion;

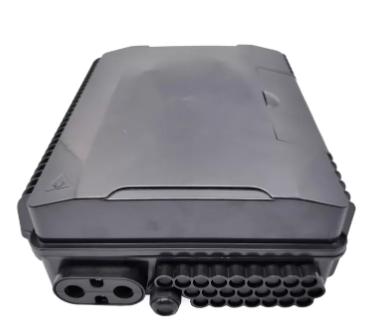

- There is cable holders for cable entrance and exit ports on the bottom of the box;
- Fusion plate can be maximum 48cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class;
- Laser mark and logo print reserved on the lid
Technical parameters
| Model | FDB0248-A | FDB0248-B | |
| Dimension (A*B*C) | 355*270*120mm | ||
| Max.Capacity | 48 cores (single fiber) | ||

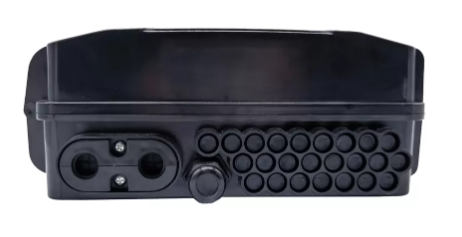

| Cable ports | Cable entry:1mid span, 1cable gland; Cable exit: 24 round outputs (can do2pcs drop cable holes in rubber) | ||
| Cable diameter | 1mid span(Φ14.5mm), 1cable gland(Φ7-12mm), 24: drop cable 2*3mm or <4.5mm round cable | ||
| Splitter quantity | 4pcs 1:8 or 2pcs 1:16 or 1pcs 1:32 mini splitter | 2PCS 1X16 LGX chassis | |
| Adapter quantity | 48 SC simplex | – | |
| Color | black | ||
| Protection grade | IP65 | ||
Detail information:
There are two types for optional, can be load with LGX Splitter module, also can be load with adapter for tube mini splitter 1×16 or 1×32
