EchoLife EG8145V5 ONU
Order Now
Call for Price
Key Features:
Plug-and-Play – Configurations are automatically delivered by the network management system so on-site commissioning is not required.
Comprehensive Triple-Play Service – The ONT provides abundant ports to implement multiple access services, including home network-attached storage, internet access, and video services, providing users with a comprehensive triple-play service.
Energy Efficient – Integrated PON, voice, gateway, and LSW modules, with up to 25 percent power savings.

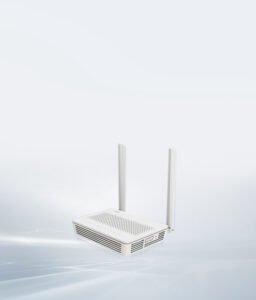

The EchoLife EG8145V5 ONU
The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.
| Model | EchoLife EG8145V5 |
| Type | Routing |
| Dimensions (H x W x D) | 30 mm x 155 mm x 105 mm(without external antenna and pads) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 2A |
| Network-side Ports | GPON |
| User-side Ports | 1 POTS + 4 GE + Wi-Fi + USB |
| Indicators | POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS |
