        Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU V2802ACT



        V2802ACT

         Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU V2802ACT

        Model: V2802ACT
        Spec: 2GE+WiFi5+CATV+USB3.0
        Weight: 280g



        Introduction:

        V2802ACT (2GE+WiFi5+CATV XPON ONT) is designed to meet the FTTH and triple play service requirements of fixed networkoperators.The ONT is based on a high-performance chipset technology solution, supporting IEEE802.11b/g/n/ac WIFI technology andotherLayer2/Layer 3 functions. The ONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONTontheVSOLOLT. The ONU has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complieswiththeChinaTelecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.



        EasyMesh: Smart, Extended Coverage Home WiFi

        V2802ACT Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU





        Support IPv6 and MU-MIMO Technology

        Say goodbye to network lag, multiplayer online without lag



        V2802ACT Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU

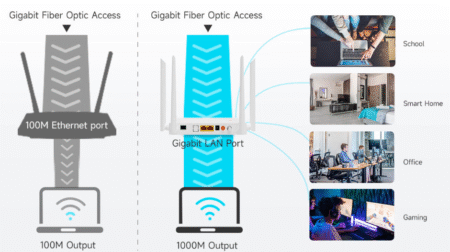

        AC1200 Dual Gigabit Interfaces for Gigabit Broadband Access Applications



        V2802ACT Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU



        CATV with AGC

        Remote Control CATV On/Off

        V2802ACT Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU



         Hardware Parameter
        Dimension178mm×120mm×30mm(L×W×H)
        Net weight0.28Kg
        Operating conditionOperating temp: -10 ~ +55°C
        Operating humidity: 5 ~ 95%  (non-condensed)
        Storing conditionStoring temp: -40 ~ +70°C
        Storing humidity: 5 ~ 95%  (non-condensed)
        Power adapterDC 12V,1.5A, external AC-DC power adaptor
        Power supply≤12W
        Interface2GE+WiFi5+CATV+USB3.0
        IndicatorsPWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, CATV, USB
        ModelV2802ACT Best Gigabit Fiber XPON CATV ONT 2GE+CATV+USB3.0+WiFi5 ONU
        ○ Interface parameter
        PON interfacel 1 XPON port(EPON PX20+ & GPON Class B+)
        l SC single mode, SC/APC connector
        l TX optical power: 0～+4dBm
        l RX sensitivity: -27dBm
        l Overload optical power: -3dBm(EPON) or -8dBm(GPON)
        l Transmission distance: 20KM
        l TX wavelength: 1310nm
        l RX wavelength: 1490nm, 1550nm(CATV)
        CATV  interfacel Optical receiving wavelength: 1550±10nm
        l Optical input range: +2～-18dBm
        l Optical reflection loss: ≥40dB
        l RF frequency range: 47～1000MHz
        l RF output impedance: 75Ω
        l RF output level and AGC range:
        ≥81±2dBuv@+1～-10dBm
        ≥79±2dBuv@ 0～-11dBm
        ≥77±2dBuv@-1～-12dBm
        ≥75±2dBuv@-2～-13dBm
        ≥73±2dBuv@-3～-14dBm
        ≥71±2dBuv@-4～-15dBm
        l MER: ≥32dB(-14dBm optical input)
        WiFi interfacel Compliant with IEEE802.11b/g/n/ac
        l 2.4GHz Operating frequency: 2.400-2.483GHz
        l 5.0GHz Operating frequency: 5.150-5.825GHz
        l WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID
        l TX power: 11n–22dBm/11ac–24dBm
        LAN interface2*GE,Auto-negotiation,RJ45 ports
        USB interfaceUSB3.0 For Printer&Storage
        ○ Function Data
        Managementl OAM/OMCI, Telnet, WEB, TR069
        l Support full management of ONT functions by VSOL OLT
        Data Service Functionsl Full speed non-blocking switching
        l 2K MAC address table
        l 64 full range VLAN ID
        l Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
        l Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
        l Support auto polarity detection of Ethernet ports (AUTO MDIX)
        l Integrated IEEE802.1p QoS with four level priority queues
        l Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
        l Support bridge, router and bridge/router mixed mode
        l IP address assignment: dynamic PPPoE/DHCP Client and static IP
        Wirelessl Integrated 802.11b/g/n/ac(WIFI5)
        l Support Easymesh protocol
        l Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
        l Modulation type: DSSS,CCK and OFDM
        l Encoding scheme: BPSK,QPSK,16QAM and 64QAM



        Innovation Drives Development Quality Builds Brand

        We R&D, manufacture, and sell optical communication access systems and terminal equipment. Now we’ve taken the lead in launching a number of original products in the industry, mainly including ONU/ONT, OLT, VoIP gateways, and other network access products, which are designed to meet the needs of telecom operators. We’re committed to helping broadband users worldwide enjoy an ultra-high-speed network!
