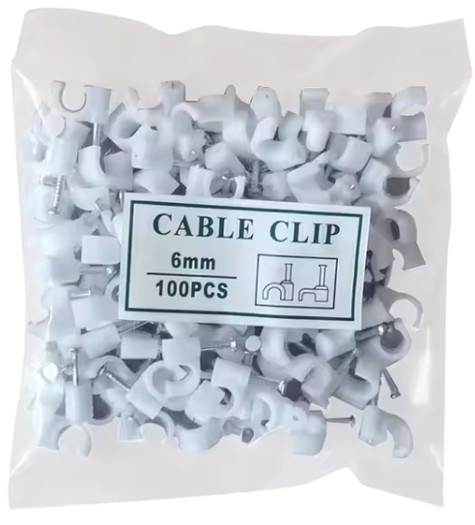

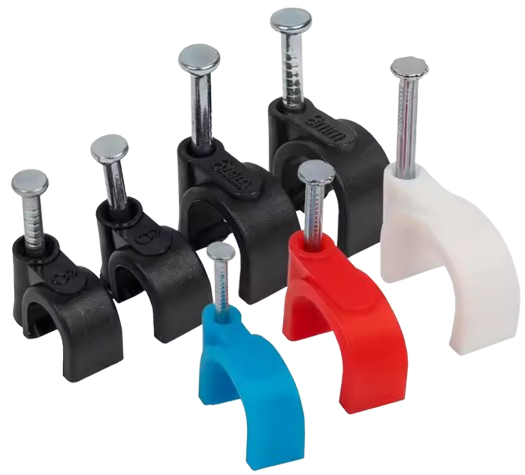

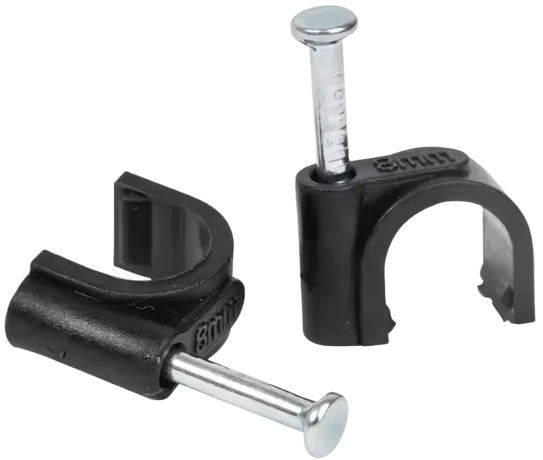

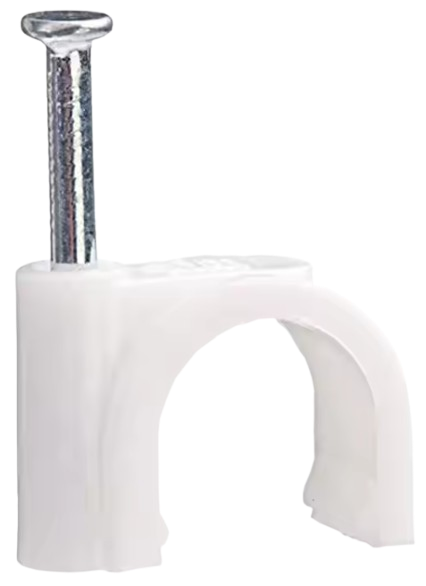

NAIL CABLE CLIP for Concrete Nails, Wall Cable & Wire Clip
Order Now
Call for Price
NAIL CABLE CLIP for Concrete Nails, Wall Cable, & Wire Clip

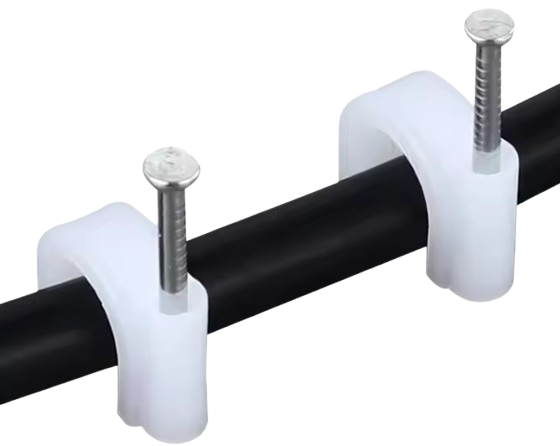

Nail Cable Clips are a great choice of one piece bundling and mounting of cables, conduit, tubing and so much more. The molded U Shaped Clip and Round Nail makes mounting a a stud, in a ceiling or outside quick and easy. Perfect for running coaxial cable and mounting outside, inside the walls to a stud, outside the walls and even in the ceiling. Cable Clips are an affordable way to keep cables and conduit under control.
NAIL CABLE CLIP for Concrete Nails, Wall Cable, & Wire Clip
Nail Cable Clips are a great choice of one piece bundling and mounting of cables, conduit, tubing and so much more. The molded U Shaped Clip and Round Nail makes mounting a a stud, in a ceiling or outside quick and easy. Perfect for running coaxial cable and mounting outside, inside the walls to a stud, outside the walls and even in the ceiling. Cable Clips are an affordable way to keep cables and conduit under control.

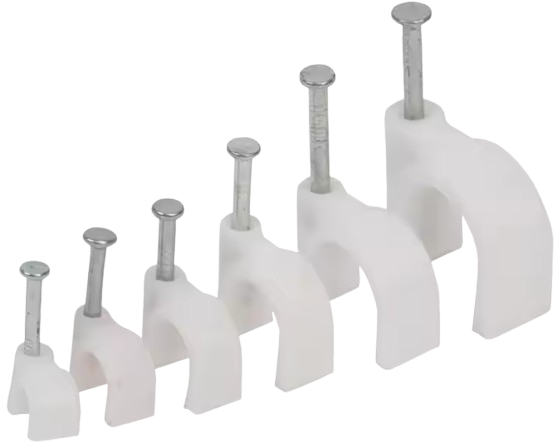

Specification | H(mm) | D(mm) | Nail Meas.(mm) | Package |
C-4mm | 5.3 | 4.0 | 1.7*14 | 100 pieces |
C-5mm | 6.0 | 5.0 | 1.7*15 | 100 pieces |
C-6mm | 8.0 | 6.0 | 1.8*16 | 100 pieces |
C-7mm | 8.7 | 7.0 | 1.8*18 | 100 pieces |
C-8mm | 9.5 | 8.0 | 1.9*19 | 100 pieces |
C-9mm | 11.0 | 9.0 | 2.0*20 | 100 pieces |
C-10mm | 12.0 | 10.0 | 2.0*22 | 100 pieces |
C-12mm | 13.5 | 12.0 | 2.1*25 | 100 pieces |
C-14mm | 16.5 | 14.0 | 2.3*27 | 100 pieces |
C-16mm | 18.0 | 16.0 | 2.3*30 | 100 pieces |
C-18mm | 20.5 | 18.0 | 2.3*32 | 100 pieces |
C-20mm | 22.5 | 20.0 | 2.7*40 | 100 pieces |
C-22mm | 23.5 | 22.0 | 2.7*40 | 100 pieces |
C-25mm | 26.5 | 25.0 | 3.0*45 | 100 pieces |
