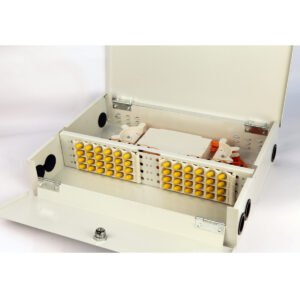

CCORP 48 PORTS OPTICAL DISTRIBUTION BOX WALL MOUNT OUTDOOR ODF ODB SINGLE DOOR
Order Now
Call for Price
CCORP 48 PORTS OPTICAL DISTRIBUTION BOX WALL MOUNT OUTDOOR ODF ODB SINGLE DOOR
48 Core Fiber Distribution Box is a weatherproof enclosure used for organizing, splicing, and distributing up to 48 fiber optic cores in FTTH or FTTx networks. It supports SC/LC adapters, includes splice trays, and provides secure cable management for indoor or outdoor wall or pole-mounted installations.
CCORP 48 PORTS OPTICAL DISTRIBUTION BOX WALL MOUNT OUTDOOR ODF ODB SINGLE DOOR
Fiber Optic Distribution Box
The distribution box can be used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features
- High Capacity: Supports termination and distribution of up to 48 fiber cores.
- Adapter Compatibility: Accommodates SC, LC, or other standard adapters.
- Integrated Splice Tray: Provides organized fiber splicing and storage.
- Cable Entry Ports: Multiple entry/exit points for feeder and drop cables.
- IP65 or Higher Protection: Dustproof and waterproof design suitable for outdoor use.
- Durable Material: Made of UV-resistant, high-impact plastic or metal for long-term reliability.
- Lockable Cover: Secures internal components and prevents unauthorized access.
- Easy Installation: Supports wall-mount and pole-mount setups.
- Efficient Cable Management: Built-in guides and loops for organized routing and strain relief.
- Versatile Application: Ideal for FTTH, FTTB, and other optical network distribution points.
Overview Features
- Fiber Distribution Box
- Dimensions: 400*400*120mm
- Max. Capacity: 48 core
- Material: Metal
- Installation Way: Wall-Mounted or Pole-Mounted
Specification
- Environmental Requirement Working temperature: -40℃ ~+85℃
- Relative Humidity: ≤85%(+30℃)
- Atmospheric pressure: 70KPa~106Kpa
Thunder-proof Technical Data
- The grounding device is isolated with the cabinet, isolation resistance is no less than 2 104 MΩ/500V (DC); IR≥2 104 MΩ/500V
- The withstand voltage between grounding device and cabinet is no less than 3000V (DC )/min, no puncture, no flashover; U≥3000V
