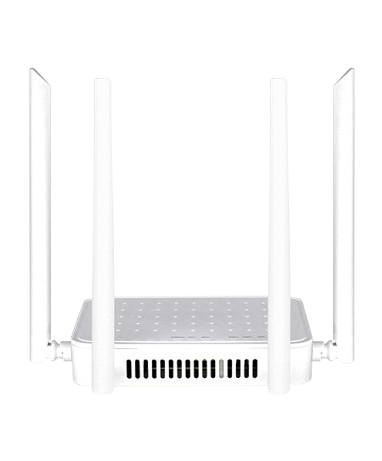

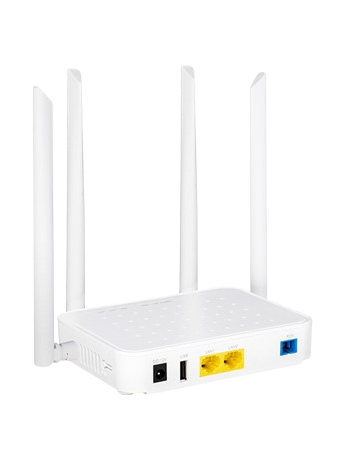

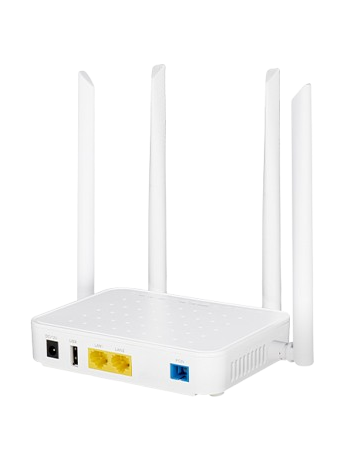

BDCOM GP1705-2G xPON WiFi5 Home Gateway Unit (HGU)

xPON WiFi5 ONU, 1-Port GPON/EPON (SC/UPC), 2-Port Gigabit RJ45, dual band 1200M WiFi5, 4 external antennas, plastic casing, DC12V/1.5A power adaptor.

BDCOM GP1705-2G is a smart HGU with integrated wireless, VoIP and CATV function.

GP1705-2G is oriented for the integrated multi-service network in telecom operator network.

Highlights

Complete Interaction Capacity

BDCOM GP1705-2G is complied with the international standard ITU-T G.984/988 and IEEE802.3ah, PRC Communication Industry Standard GB/T33845-2017 and YD/T 1475- 2006, and China Telecom EPON/GPON Technical Requirement CTC. With great interoperability and operability, BDCOM GP1705-2G can interconnect well with OLT devices of mainstream manufacturers in the industry to
minimize network construction costs. Automatic network switching enables smooth transition from EPON to GPON network.

Excellent Access Capacity

GPON: supports the PON transmission rate of downlink 2.5Gbps/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:128 splitting ratio. The
covering radius of the network can reach to 20km.
EPON: supports the PON transmission rate of downlink 1.25Gbps/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:64 splitting ratio. The covering radius of the network can reach to 20km.

Secure Service Carrying Ability

For ensuring the secure service carrying ability of ONU, BDCOM has developed techniques including VLAN, STP, port isolation, ACL, QoS and Broadcast Storm Control.

Product Characteristics

Advanced Energy-saving Technique
For ensuring the secure service carrying ability of ONU, BDCOM has developed techniques including VLAN, port isolation, ACL, QoS and Broadcast Storm Control.

High Service Control Capability
BDCOM GP1705-2G supports DBA and Rate-Limit. BDCOM GP1705-2G also supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to share 2.5Gbps (GPON) and 1.25Gbps (EPON) bandwidth resource appropriately. In addition, the QOS function of BDCOM GP1705-2G guarantees a reliable service quality and service priority. bandwidth resource appropriately. It also supports QOS
function, which guarantees a reliable service quality and service priority.

Rich OMCI&OAM Function
BDCOM GP1705-2G supports the standard OMCI defined by ITU-T, standard OAM and extended OAM defined by telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management, and it also supports private OMCI and OAM defined by BDCOM.

Technical Specifications

Standards

• ITU-T G.984/G.988
• 3ah
• GBT33845-2017, YD/T 1475- 2006
• IEEE 802.1Q, VLAN
• ITU-T Y.1291

VLAN

• 4K VLAN
• Port based VLAN
• IEEE 802.1Q VLAN
• Tag/Transparent/Aggregation/Trunk/Translation mode VLAN
• 0 defined VLAN

IP Service

• DHCP server/client
• Routing/Bridging/Hybrid mode
• DNS, DDNS
• PPPOE
• NAT/NAPT

QoS

• Backpressure flow control (half-duplex)
• IEEE 802.3x flow control (full duplex)
• Against Head of Line mechanism
• IEEE 802.1p, CoS
• Four priority queues on each port
• WR, SP and FIFO queue schedule algorithms
• Port rate limit
• SLA and DBA

Reliability

• Management modes including CLI, HTTP, SNMP, TR069 and TELNET
• Software upgrade through TFTP and WEB, OMCI, etc.
• Local or server syslog xPON Service
• AES128 algorithm encryption
• MAC/Loid/Hybrid authentication Voice Service
• SIP, T.38 FAX
• Three-way calling
• Call waiting
• Hot-line calling

Network Security

• MAC address number limit
• MAC filter
• Port protect

Multicast

• IGMP-Snooping
• CTC defined dynamic multicast function
• MLD-Snooping
• Multicast group limitation
• Multicast fast-leave

Reliability

• Loop detection
• Dying-Gasp
• TX/RX optical power alarm

Wireless

• 11a/b/g/n/ac
• 2×2 MIMO
• Multi SSID
• SSID encryption
• Wireless channel (configurable)
