Telecom Silicon Duct End Plug 32mm 40mm 50mm for FTTH Fiber Optic Equipment Mechanical Blank Duct

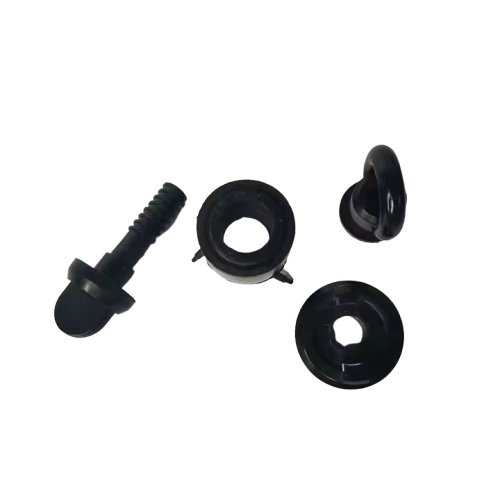

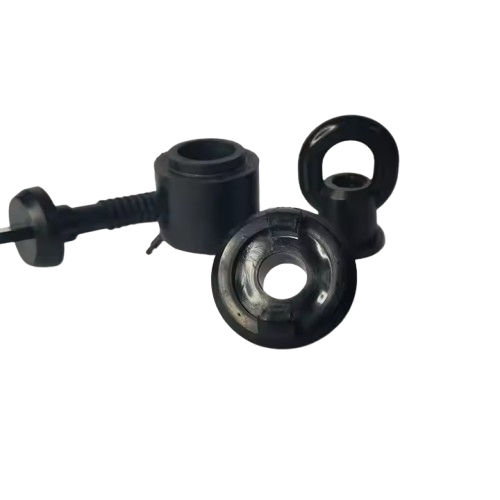

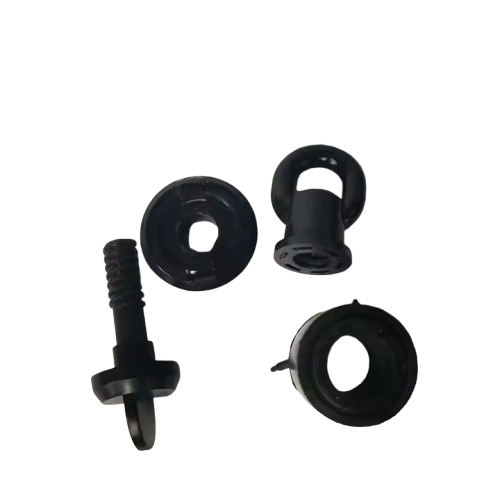

Expanding Mechanical Blank Duct End Plug for Telecom Silicon Ducts An expanding mechanical blank duct end plug is a specialized device designed to seal the ends of telecom silicon ducts. These plugs are crucial in protecting the integrity of the duct system by preventing the ingress of dirt, water, and other contaminants. They also ensure that the ducts remain pressurized where necessary and facilitate maintenance and cable pulling activities.
Key Features:
1. Expansion Mechanism: – The plug expands radially to fit snugly within the duct. – Often operated by a central screw or cam mechanism that, when turned, causes the plug to expand and seal against the duct walls.
2. Material: – Made from durable materials such as high-density polyethylene (HDPE) or other robust plastics resistant to environmental stresses. – May include silicone or rubber components to enhance the seal.
3. Size Compatibility: – Available in various sizes to match standard telecom duct diameters, typically ranging from small diameters (20mm) to larger diameters (100mm or more).
4. Environmental Resistance: – Resistant to UV light, moisture, chemicals, and temperature extremes to ensure longevity and reliability in outdoor and underground installations.
5. Ease of Installation: – Designed for quick and straightforward installation without the need for specialized tools. – Can be installed and removed multiple times, facilitating maintenance operations. Applications: – Telecom Duct Sealing: – Used to seal the ends of silicon ducts in telecom networks, particularly during construction, maintenance, or when the ducts are not in immediate use. – Pressure Testing: – Essential for pressure testing of ducts to ensure there are no leaks before laying cables. – Temporary Sealing: – Employed to temporarily seal ducts during cable installation or repair works to prevent the ingress of contaminants.
| Key attributes | |||
| Type | Expanding Duct Plug | Model Number | 32mm |
| Use | Ftth | Warranty Time | 1 year |
| Network | None | Product name | Expanding Duct Plug |
| Colour | black | Pressure resistance | -20℃~+50℃ |
| Return Loss | ≤ -40DB | Insertion Loss | 0.36DB |
| Condition | New | Packing | 50 Pcs /bag |
| Material | ABS/Plastic | Package | Carton Box |
| Application | Network Solution | ||
| Selling Units | Single item | Single package size | 10X10X10 cm |
| Single gross weight | 0.550 KG |
Specification | Duct OD(mm) | Sealing Range(mm) |
EDP32 | 32 | 25.5-29 |
EDP34 | 34 | 27.5-31.2 |
EDP40 | 40 | 29-38 |
EDP46 | 46 | 35-42 |
EDP50 | 50 | 37.5-46.5 |
EDP60 | 60 | 49.5-53.7 |
EDP63 | 63 | 53-56.5 |
