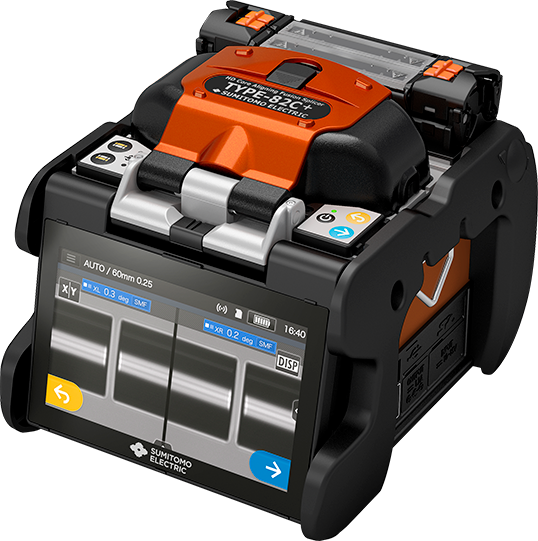

      SUMITOMO TYPE 82C+ FUSION SPLICER

      Order Now

        Call for Price

        SUMITOMO TYPE 82C+ FUSION SPLICER

        The world’s first AI programmed High Definition Core Aligning fusion splicer


        SUMITOMO TYPE 82C+ FUSION SPLICER

        The world’s first AI programmed High Definition Core Aligning fusion splicer

        FEAUTURES

        The ultimate level of splicing performance

        High Definition Core Alignment
        NanoTune™
        Insertion loss (typical) : 0.01dB for SMF
        Splice speed (typical) : 5 sec for SMF



        ELOIK ALK-7000 June 13, 2025 Philippines

        Quality and high speed protection

        Dual automatic independent oven
        Patented technology
        Heating time (typical) : 8 Sec for 60mm sleeve

        ELOIK ALK-7000 June 13, 2025 Philippines

        Super long battery life

        Smart power monitor
        Splice while charging
        320 splice cycle

        ELOIK ALK-7000 June 13, 2025 Philippines

        Intuitive touch screen display

        5.0″ WVGA LCD
        Smartphone-like intuitive operation

        ELOIK ALK-7000 June 13, 2025 Philippines

        Unsurpassed toughness when dropped

        Drop from 76cm on 5 faces
        (excluding the top face)

        ELOIK ALK-7000 June 13, 2025 Philippines



        IP52, Water & Dust resistance

        Dust; Equivalent to IP5x
        (Operates normally after 8 hours in a test chamber
        with circulating dust particles smaller than 75um)
        Water; Equivalent to IPx2
        (Operates normally after being exposed to
        water dripping at 3mm/min. for at least 2.5 min
        on each of 4 surfaces tilted at 15°)

        ELOIK ALK-7000 June 13, 2025 Philippines

        SPECIFICATION

        Storage

        • Internal; 200 images, 10,000 data
        • Internal + External; SD/SDHC (Max. 32GB), 50,200 images, 20,000 data

        Automation

        • Fiber identification (SMF / MMF / DSF / NZDSF / BIF / Other)
        • Splice/Oven auto start

        Electrode life

        • 6000 splices with the genuine electrode, ER-10

         Help video

        • Play on the display or our web site

        Network connection

        • SumiCloud™; via smartphone by wireless LAN
        • FSMA; via PC by USB

        Operating condition

        • Altitude : 0 ~ 6000m,
        • Temperature : -10 ~ +50°C,
        • Humidity : 0 ~ 95% (non-condensing)
        • Wind velocity : up to 15m/sec
