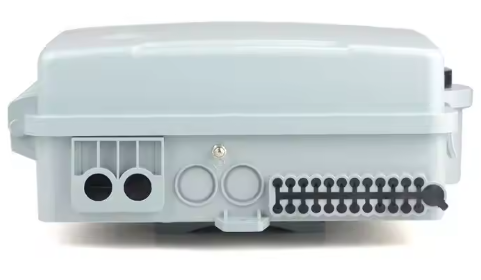

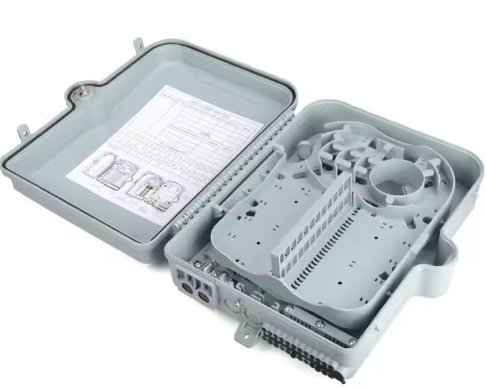

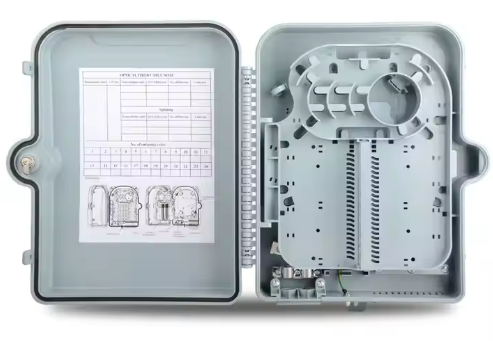

24-Core FTTH Optical Distribution Point (ODP) FDB NAP Box Fiber Optic Terminal Box 24 ports Nap Box
•2 port for common cable and 24 port for ftth drop cable.
•Provide two options for the slots,can contain 1*16 plug-in cassette splitter or 24 pcs sc adapters and pigtails.
•Function of shock resistance and waterproof.
•The top cap opening angle is 180°0.
•Economic and exquisite,let the construction simple and convenient.
| Product name | FTTH Terminal Box | IP rate | IP65 |
| Installation type | pole or wall mounting | Product size | 330*240*100 mm |
| Material | ABS | color | Grey |
| Operation Temperature | -40℃~60℃ | Port | 2 inlet and 24 outlet |
| Optional accessory | pole mounting ring, sc adapter,fiber pigtails or plc splitter | weight | 1.3kg |
