PRODUCT DESCRIPTION

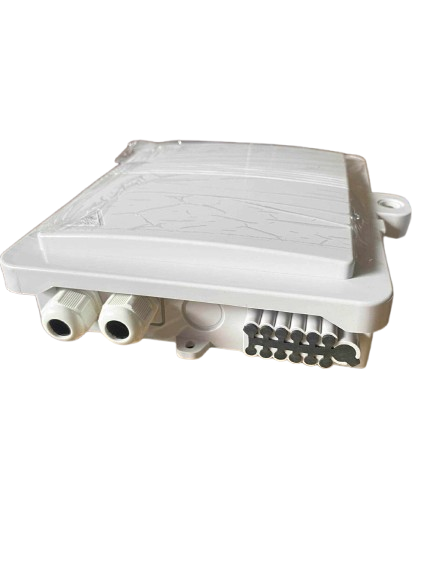

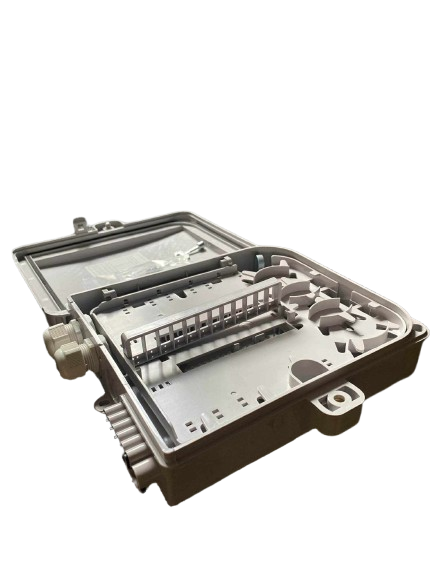

Product Name: Nap Box 8 port Fiber Splitter Box FTTH Insert type Fiber Optic Distribution Box For PLC Splitter

Color: Black

Application:

● Telecom network
● CATV network
● Ethernet network

Options

● 8 ports Nap Box empty, cassette type
● 8 ports Nap Box w/ 1×8 Splitter, cassette type, SC UPC
● 8 ports Nap Box w/ 1×8 Splitter, cassette type, SC UPC w/ pigtail
● 8 ports Nap Box w/ 1×8 Splitter, cassette type, SC APC
● 8 ports Nap Box w/ 1×8 Splitter, cassette type, SC APC w/ pigtail
● 8 ports Nap Box w/ 1×8 Splitter, cassette type, LCP

Fujikura 35S Fusion Splicer

The 35S cladding alignment fusion splicer is changing the way people splice fiber in small to mid-fiber count applications. This Fujikura splicer debuts a landmark improvement to the fusion splicing process with the ability to prepare and load both fibers simultaneously. The hand-held fiber coating stripper, the SS-05, is capable of stripping two 250 µm coated fibers in the same pass, along with the CT-16 cleaver adapter plate which can likewise accommodate two bare fibers for cleaving. After preparation, the 35S patented sheath clamps enable loading both fibers simultaneously into the splicer with one fiber in each hand. The user can press down on the sheath clamp base to close it while positioning the fiber in the v-grooves. This enables a one handed operation.

Furthermore, the 35S sheath clamps are mechanically linked to the wind protector, so after splicing is finished, opening the wind protector also opens both sheath clamps for quick sleeve positioning and transfer to the tube heater. The 35S tube heater shrinks sleeves much faster than its predecessor with a nominal ~20 second heat time for 60 mm sleeves down from ~26 seconds. The simultaneous fiber preparation capability, automated sheath clamp opening, and a faster tube heater, combine to lower the overall fusion splicing cycle time by ~30% or more.

The 35S continues to benefit the user experience with improvements to fiber placement, battery access, and machine ergonomics. Previously, when using sheath clamps, if the cleaved fiber was accidentally set past the electrode centerline, the machine would send an error and require manual intervention. The 35S will now accept this mistake and reverse the fiber to correct position automatically. With a cube form factor, the 35S is easily transported and operated in space-constrained environments. The adjustable screen can alleviate glare from the sun and adjust with abnormal splicer positions confronted in challenging splice locations.

Backed by the best service team in the industry, the Fujikura 35S is the ideal splicer to use when portability, ruggedness, speed, and reliability are needed. If you’d like to see the 35S capabilities first-hand, please contact us at 1-800-235-3423 to arrange a product demonstration at your earliest convenience.

72 CORES FIBER PATCH PANEL

The 19-inch rack-mounted end box is a passive component for terminal distribution of trunk cables in fiber-optic communication systems, with tools for easy connection and distribution of fiber optic circuits. We offer 19 Inch Rack Drawer Distribution box (Fiber Patch Panel) and 19 Inch Rack Fixed Distribution box (Fiber Patch Panel)

Optical Fiber Identifier

Features & Applications

• Display relative optical power
• Test online without interruption of the link
• Recognize the signal of 270Hz, 1kHz, 2kHz
• Comes with a hood to provide more accurate test results outdoors
• Identify the propagation direction of light, sound alarm reminder
• Led display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber
• Test sensitivity -40dBm to 10 dBm
• Low power reminder
